Install Package - TECO TWS-TSO26H3DVJT 2.64kW Wall Split Wifi Air Conditioning Package

TECO-TWS-TSO26H3DVJT-INSTALL
TECO-TWS-TSO26H3DVJT-INSTALL
TECO-TWS-TSO26H3DVJT-INSTALL
TECO-TWS-TSO26H3DVJT-INSTALL

Install Package - TECO TWS-TSO26H3DVJT 2.64kW Wall Split Wifi Air Conditioning Package

TWS26H3DVJT/TSO26H3DVJT TECO Wall Split Supply & Install




$1,529.00 Incl GST
$1,390.00 Excl GST
In Stock

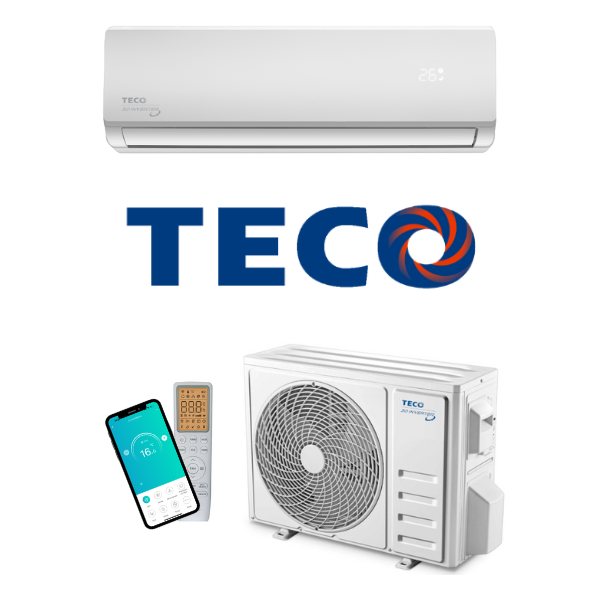

Supply & Installation Package - TECO Platinum 3D TWS-TSO26H3DVJT 2.64kW Wall Split System (Built In Wi-Fi)

The spectacular Platinum 3D range is the latest and most efficient range of DC inverter split systems that TECO have to offer. Engineered to perform in some of the harshest Australian conditions, the Platinum 3D range is a smart choice when designing for energy reductions at an affordable price. Registered and approved under the latest determination of the Minimum Energy Performance standards, the Platinum 3D range offers high efficiency compared to other TECO models, regardless of the climate zone you reside in.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

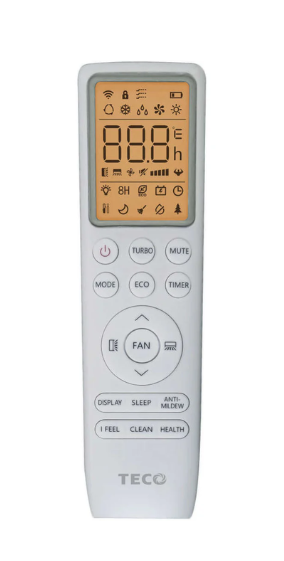

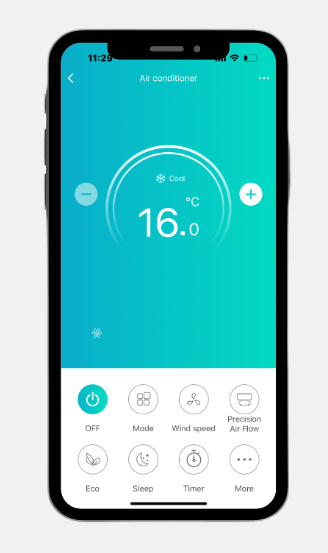

  • Built In Wi-Fi Control
  • Up to 9.5 star energy rating
  • Gold Fin Protection
  • Catechin Filters
  • High Density Filters
  • I-FEEL Follow Me Mode
  • Self-Clean Indoor
  • Anti-Mildew Function

(TWS-TSO26H3DVJT-INSTALL)

System Names TWS-TSO26H3DVJT TWS-TSO35H3DVJT TWS-TSO52H3DVJT TWS-TSO72H3DVJT TWS-TSO88H3DVJT

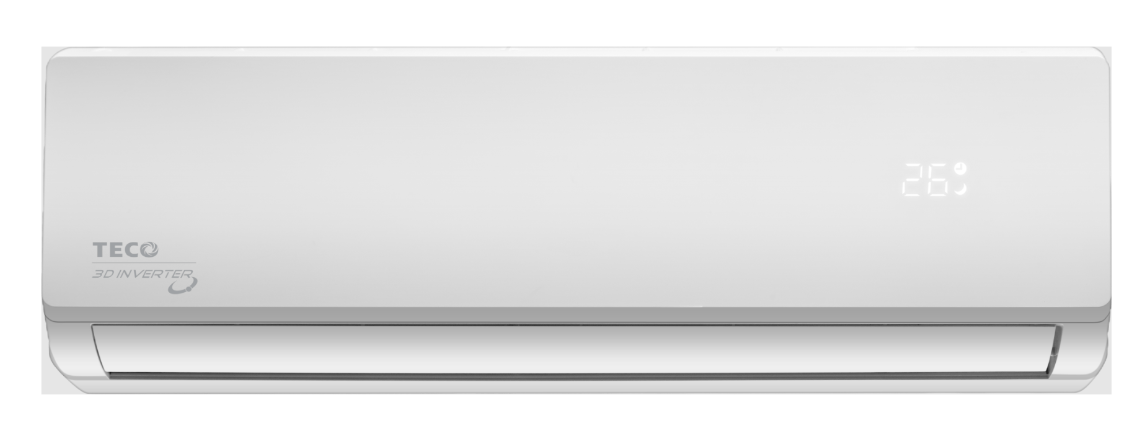

Indoor Unit TWS26H3DVJT TWS35H3DVJT TWS52H3DVJT TWS72H3DVJT TWS88H3DVJT

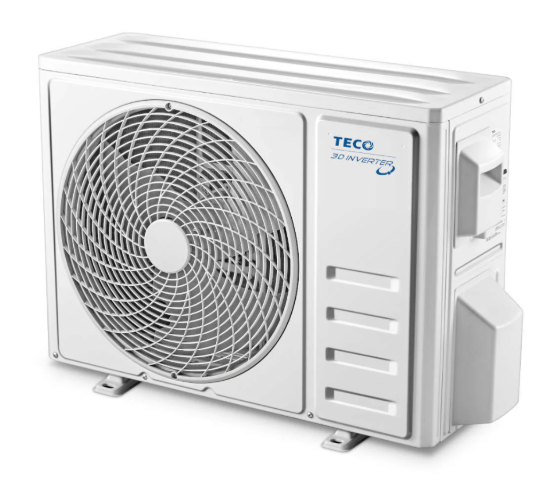

Outdoor Unit TSO26H3DVJT TSO35H3DVJT TSO52H3DVJT TSO72H3DVJT TSO88H3DVJT
Rated Cooling Capacity (kW) 2.64 3.5 5.2 7.0 8.8
Rated Heating Capacity (kW) 4.05 4.5 5.2 7.0 8.8
Running Current Rated/Min-Max (A) - Cool 4.3 (1.3 - 6.6) 3.6 (1.5 - 7.8) 6.5 (1.5 - 12.0) 8.8 (1.5 - 14.5) 10.9 (1.8 - 15.5)
Running Current Rated/Min-Max (A) - Heat 4.6 (1.3 - 7.4) 4.6 (1.5 - 8.2) 5.3 (1.5 - 13.0) 9.1 (1.5 - 15.0) 9.9 (1.8 - 15.5)
Power Input Rated/Min-Max (W) - Cool 595 (290 - 1450) 800 (290 - 1400) 1500 (400 - 1850) 2010 (350 - 2600) 2500 (350 - 3100)
Power Input Rated/Min-Max (W) - Heat 985 (290 - 1580) 1070 (290 - 1990) 1200 (400 - 1800) 2090 (350 - 2500) 2250 (350 - 3340)
AEER/ACOP 4.34 / 4.06 4.30 / 4.15 3.42 / 4.27 3.45 / 3.32 3.49 / 3.88
Star Rating (Zone) Hot/Med/Cold - Cool 9.5 / 5.5 / 6.0 5.5 / 4.5 / 4.5 3.5 / 3.0 / 3.0 3.0 / 3.0 / 3.0
Star Rating (Zone) Hot/Med/Cold - Heat 3.5 / 2.5 / 2.0 3.0 / 2.5 / 2.0 3.0 / 2.5 / 1.5 3.0 / 2.5 / 2.0
Moisture Removal (L/Hr) 0.8 1.1 1.8 2.4 3.2
Indoor Fan Speeds 8
Indoor Air Flow (Max) Cool/Heat (L/s) 172 / 172 161 / 172 305 / 305 375 / 375
Compressor Type Rotary
Indoor/Outdoor Max Sound Power Level (dBA) 47 / 58 48 / 60 52 / 62 53 / 64 54 / 64
Refrigerant Type R32
Pipe Sizes Liquid/Gas (mm) 6.35 + 9.52 6.35 + 12.7 6.35 / 15.9
Max Pipe Length (m) 15
Max Height Difference (m) 10
Pipe Connection Method Flare
Indoor Unit Dimensions (H x W x D) (mm) 292 x 811 x 203 315 x 1010 x 220 360 x 1191 x 258
Outdoor Unit Dimension (H x W x D) (mm) 549 x 810 x 305 602 x 863 x 349 602 x 927 x 380 803 x 978 x 421
Indoor Unit Weight (kg) 10 10 13 13.5 18
Outdoor Unit Weight (kg) 22 26 32 37 46.5
Ambient Temperature (C) -15 / 50 -15 / 52
SKU TWS-TSO26H3DVJT-INSTALL
Brand TECO
Shipping Weight 32.0000kg
Unit Of Measure ea

Warranty

Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
