Install Package - Mitsubishi Heavy (MHI) Ciara 1.5kW DXK05ZTLA-WF-Set Split WiFi Air Conditioning Package

Mitsubishi Heavy Industries (MHI)-DXK05ZTLA-WF-Set-INSTALL
Mitsubishi Heavy Industries (MHI)-DXK05ZTLA-WF-Set-INSTALL
Mitsubishi Heavy Industries (MHI)-DXK05ZTLA-WF-Set-INSTALL
Mitsubishi Heavy Industries (MHI)-DXK05ZTLA-WF-Set-INSTALL

Install Package - Mitsubishi Heavy (MHI) Ciara 1.5kW DXK05ZTLA-WF-Set Split WiFi Air Conditioning Package

DXK05ZTLA-WF/DXC05ZTLA-W MHI Wall Split Supply & Install




$1,558.00 Incl GST
$1,416.36 Excl GST
In Stock

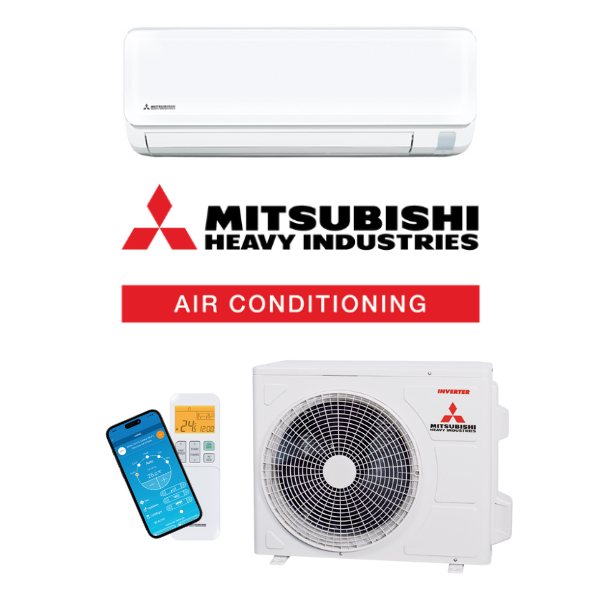

Supply & Installation Package - Mitsubishi Heavy Industries Ciara Series DXK05ZTLA-WF-SET 1.5kW Wall Split System (Built-In Wi-Fi)

Mitsubishi Heavy Industries DXK05ZTLA-WF Ciara™ Series is an exceptional addition to our renowned line of split system air conditioners. Its elegant Italian design, combined with a compact and lightweight structure, makes it ideal for small spaces. This 1.5 kW unit features cutting-edge built-in Wi-Fi, allowing for effortless control and connectivity. Perfect for those who appreciate both style and substance in their climate control solutions.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

  • Italian-Inspired Design: Showcases a sophisticated Italian aesthetic, perfect for enhancing any interior decore

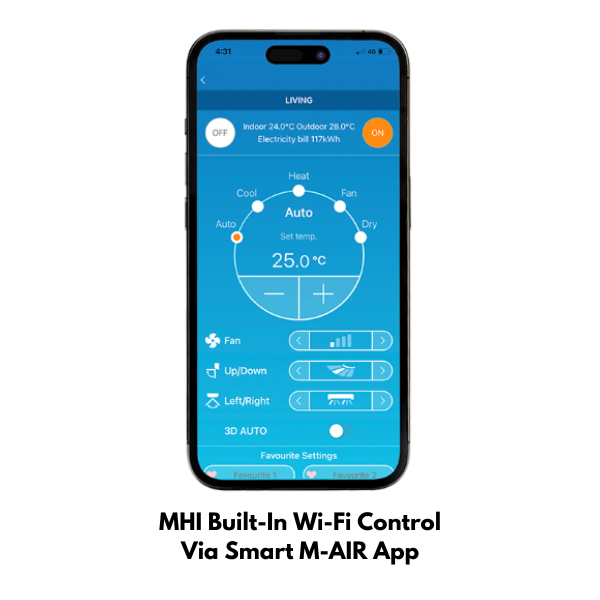

  • Integrated Wi-Fi and Voice Control: Compatible with Google and Alexa for intuitive and seamless control.
  • Clean Air Technology: Advanced system to purify air from allergens and odours, ensuring a healthier environment.
  • Quiet Operation: Features dual silent modes for minimal disturbance, especially in residential areas.

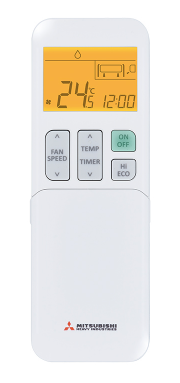

  • User-Friendly Remote Control: Includes a remote with a backlit display for easy operation in various lighting conditions.



(DXK05ZTLA-WF-Set-INSTALL)

System Name  DXK05ZTLA-WF-SET  DXK07ZTLA-WF-SET  DXK09ZTLA-WF-SET  DXK12ZTLA-WF-SET  DXK18ZTLA-WF-SET  DXK21ZTLA-WF-SET  DXK24ZTLA-WF-SET
Indoor Unit  DXK05ZTLA-WF  DXK07ZTLA-WF  DXK09ZTLA-WF  DXK12ZTLA-WF  DXK18ZTLA-WF  DXK21ZTLA-WF  DXK24ZTLA-WF
Outdoor Unit  DXC05ZTLA-W  DXC07ZTLA-W  DXC09ZTLA-W  DXC12ZTLA-W  DXC18ZTLA-W  DXC21ZTLA-W  DXC24ZTLA-W
Power Supply  1 Phase, 220 ~ 240V, 50Hz
Cooling Capacity (kW)  1.5  2.0  2.5  3.3  5.0  6.3  7.1
Heating Capacity (kW)  2.0  2.7  3.0  3.8  5.8  7.1  8.0
EER/COP  4.29 / 4.76  3.92 / 4.22  4.31 / 4.55  3.67 / 4.22  3.14 / 3.58  3.42 / 3.53  3.13 / 3.48
Outdoor Sound Power dB(A)  56  57  58  61  64  67
Refrigerant Type/Amount (kg)  R32 / 0.43  R32 / 0.59  R32 / 0.90  R32 / 1.20
Max Pipe Length (m)  20  25  30
Max Level Difference (m)  I.D.U Higher 15 / O.D.U Higher 15  I.D.U Higher 20 / O.D.U Higher 20
Indoor Dimensions (HxWxD) (mm)  294 x 798 x 210  294 x 998 x 230
Outdoor Dimensions (HxWxD) (mm)  540 x 645(+57) x 275  595 x 780(+62) x 290  640 x 800(+71) x 290
Indoor Weight (kg)  8.5  9  9.5  12
Outdoor Weight (kg)  22  24  33  42.5
Pipe Sizes (mm) (Liquid/Gas)  6.35 / 9.52  6.35 / 12.7
SKU DXK05ZTLA-WF-Set-INSTALL
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 30.5000kg
Shipping Cubic 0.153516000m3
Unit Of Measure ea

Warranty

  • Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.

  • Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
