Install Package - LG 2.6kW WS09TWS Smart Series Wall Split Air Conditioning Package

WS09TWN / WS09TWU LG Wall Split Supply & Install




$1,608.00 Incl GST
$1,461.82 Excl GST
In Stock

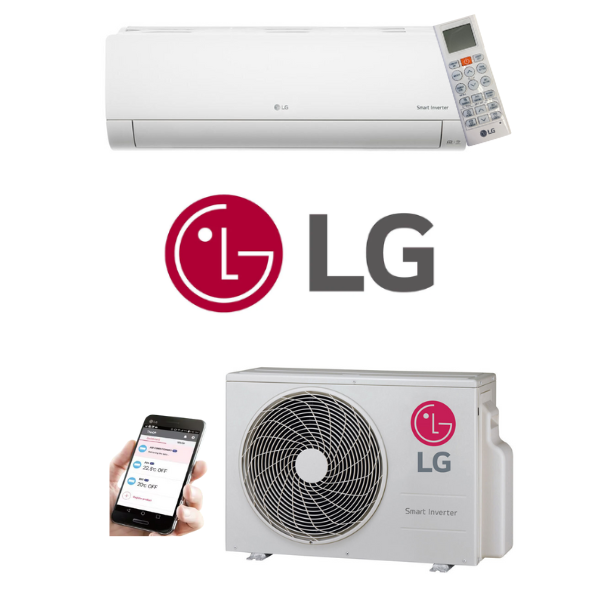

Supply & Installation Package - LG Smart Series WS09TWS 2.6kW Wall Split System (Built-In Wi-Fi)

Designed for the way you live, LG Air Conditioners are available in a wide range of styles - so you can create a space that’s cool, comfortable and stylish. With LG Split System air conditioning products, you’ll also enjoy benefits such as:

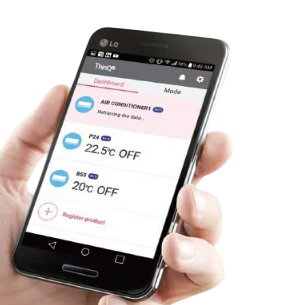

  • Embedded Wi-Fi - so that you can control your unit with your Smartphone, even when you’re not at home*.
  • Active Energy Control - to help track your energy consumption.
  • Low Noise - LG Air Conditioners operate at low sound levels.

For ease of installation, energy efficiency and quiet performance, LG air conditioning systems are the smart choice.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

(WS09TWS-INSTALL)

System WS09TWS WS12TWS WS18TWS WS24SL

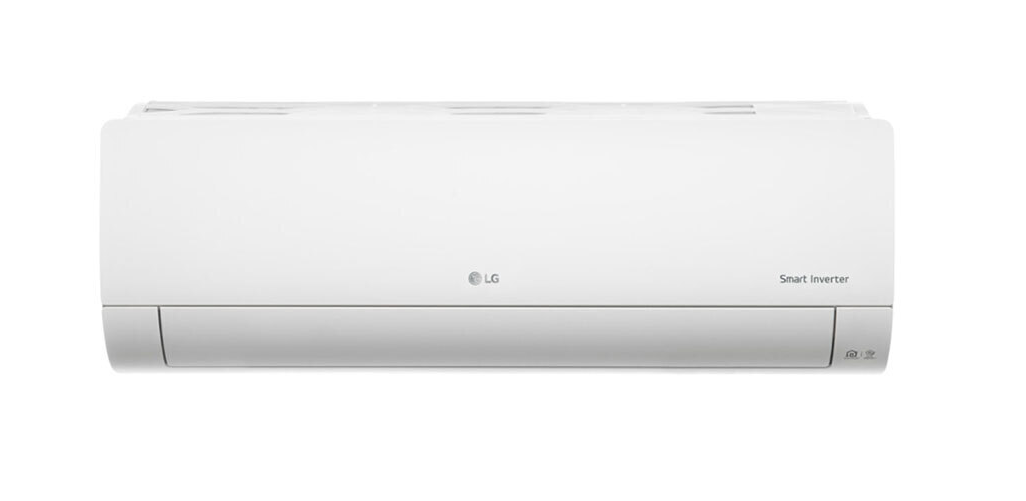

Indoor Unit WS09TWN WS12TWN WS18TWN WS24SLN

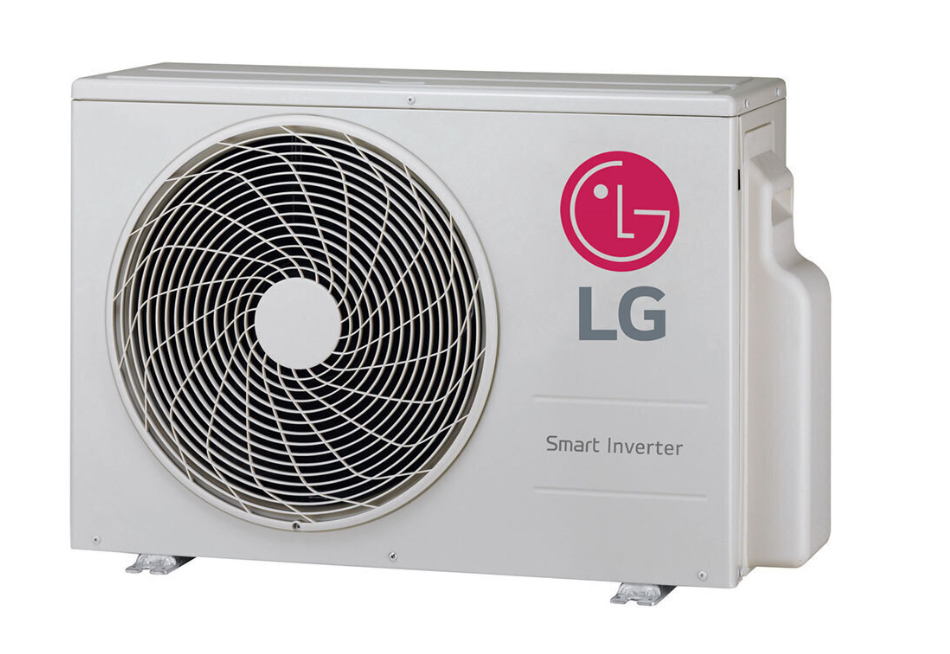

Outdoor Unit WS09TWU WS12TWU WS18TWU WS24SLU
Rated Cooling Capacity (kW) 2.6 3.4 4.8 7.1
Rated Heating Capacity (kW) 3.2 4.0 5.9 7.7
Power Supply (V/Ph/Hz) 220-240 / 1 / 50
Capacity Range Cool/Heat (kW) 0.89-3.70 / 0.89-5.00 0.89-4.04 / 0.89-6.00 0.90-5.50 / 0.90-6.40 1.00-8.00 / 1.00-8.50
Rated Power Input Cool/Heat (kW) 0.600 / 0.743 0.895 / 0.990 1.460 / 1.675 2.150 / 2.100
Running Current (A) 3.0 / 3.3 4.4 / 4.7 6.5 / 7.4 9.4 / 9.2
EER/COP (W/W) 4.33 / 4.31 3.80 / 4.04 3.29 / 3.52 3.30 / 3.67
AEER/ACOP 4.26 / 4.25 3.76 / 4.00 3.27 / 3.50 3.30 / 3.66
Energy Label Grade (Cool) 4.5 / 4.0 / 4.0 4.0 / 3.5 / 4.0 3.5 / 3.5 / 3.5 4.0 / 4.0 / 4.0
Energy Label Grade (Heat) 3.0 / 3.0 / 2.5 3.0 / 2.5 / 2.0 3.0 / 2.0 / 1.5 3.0 / 2.5 / 1.5
Indoor Air Flow (Cool) (Max/H/M/L) (L/s) 200 / 183 / 150 / 92 258 / 242 / 217 / 175 383 / 283 / 233 / 183
Indoor Air Flow (Heat) (Max/H/M/L) (L/s) 208 / 183 / 150 / 108 308 / 267 / 225 / 183 433 / 333 / 283 / 233
Indoor Sound Pressure Level Cool (Max/H/M/L/SL) dB(A) 48 / 42 / 37 / 27 / 19 49 / 44 / 39 / 34 / 31 - / 46 / 41 / 36 / 27
Indoor Unit Dimensions (HxWxD) (mm) 308 x 837 x 189 345 x 998 x 210 360 x 1060 x 265
Indoor Unit Net Weight (kg) 9.1 11.7 16.6
Compressor Twin Rotary
Condenser (Corrosion Protection) Gold
Outdoor Sound Pressure Level Cool/Heat dB(A) 49 / 51 53 / 55 49 / 52
Outdoor Sound Power Level dB(A) 56 58 61 63
Outdoor Unit Dimensions (HxWxD) (mm) 545 x 770 x 288 650 x 870 x 330
Outdoor Unit Net Weight (kg) 35 45.7
Outdoor Operating Range Cool/Heat (C) -15 to 48 / -15 to 24 -15 to 48 / -10 to 24 -10 to 48 / -10 to 24
Field Connections
Circuit Breaker (A) 15 20
Power Supply Cable (No. x mm2) 3 x 1.0 3 x 1.5 3 x 2.5
Power and Communication Cable (No. x mm2) 4 x 1.0
Field Piping
Pipe Sizes (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7
Connection Method IDU/ODU Flared / Flared
Drain Hose Size IDU/ODU 20 / 15
Min-Max Piping Length (m) 3 - 20 3 - 30
Pre-Charge Length (m) 7.5
Max Elevation Difference (m) 10 20
Piping Connection Heat Insulation Both Liquid and Gas Pipes
Refrigerant Type/Pre-Charge (g) R32 / 800 R32 / 1000 R32 / 1300
Additional Charge (g/m) 20
Refrigerant Charge Control Electronic Expansion Valve
SKU WS09TWS-INSTALL
Brand LG
Shipping Weight 43.2000kg
Shipping Cubic 0.169582000m3
Unit Of Measure ea

Warranty

Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
