Install Package - Rinnai P Series 7.0kW HSNRP70B Wall Split Air Conditioning Package

HSNRP70B Rinnai Wall Split Supply & Install




$2,813.00 Incl GST
$2,557.27 Excl GST
In Stock

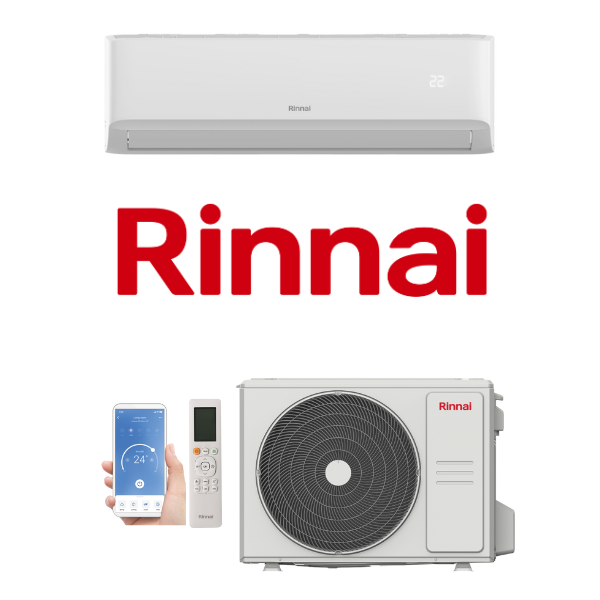

Supply & Installation Package - Rinnai PB Series HSNRP70B 7.0kW Wall Split System (Built-In Wi-Fi)

Designed for Australia’s ever-changing climate, the Rinnai P Series Inverter Split System provides both optimal heating and cooling all year round no matter where you live. Packed with innovative features including Wi-Fi connectivity, self-cleaning function, and sleep mode, the P Series is the ultimate in providing complete comfort. This smart system can also work around your unique lifestyle with an ultra-practical timer function, allowing you to set the unit’s operation times to achieve the perfect room temperature. Encased in a sleek contemporary design, the Rinnai P Series range is durable, convenient, and easy to maintain.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

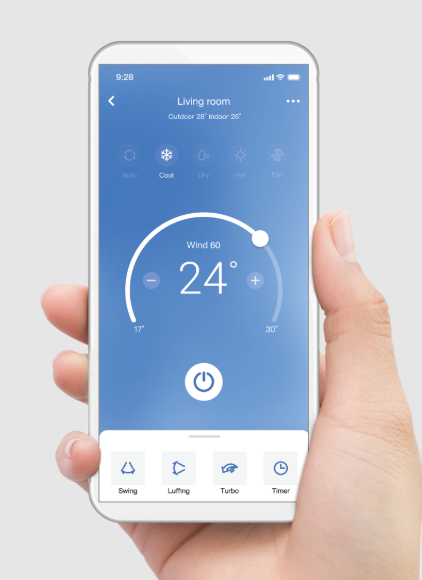

  • Wi-Fi Control
  • Dehumidifying Mode
  • Superior Corrision Protection
  • Inverter Technology
  • Quiet Operation
  • Demand Control
  • 3D Airflow
  • R32 Gas Refrigerant

(HSNRP70B-INSTALL)

System HSNRP26B HSNRP35B HSNRP50B HSNRP60B HSNRP70B HSNRP80B
Rated Cooling Capacity (kW) 2.6 3.5 5.0 6.0 7.0 8.0
Rated Heating Capacity (kW) 2.7 3.8 5.4 6.5 7.8 8.3
Power Supply (V/Ph/Hz) 220-240 / 1 / 50
Recommended Circuit Breaker (A) 16 20 25
Connectivity Wi-Fi Enabled
Demand Response Enabling Device DRED Enabled
Capacity Range Cool/Heat (kW) 1.0-3.5 / 1.4-4.0 1.5-4.9 / 1.8-5.1 2.1-7.2 / 2.5-7.8 3.2-8.0 / 2.2-8.8
Rated Power Input Cool/Heat (kW) 530 / 510 790 / 830 1280 / 1340 1750 / 1686 1920 / 1990 2200 / 2280
Rated Current (A) 2.5 / 2.5 3.8 / 5.0 5.8 / 6.0 8.0 / 8.2 10.5 / 10.8
AEER/ACOP (W/W) 4.98 / 5.27 4.42 / 4.56 3.90 / 4.02 3.42 / 3.85 3.53 / 3.73 3.39 / 3.61
TCSPF: Hot/Mixed/Cold (Cool) 8.02 / 7.50 / 7.89 7.00 / 6.76 / 7.07 6.19 / 5.83 / 6.17 5.86 / 5.61 / 5.99 5.36 / 5.14 / 5.37 5.38 / 5.21 / 5.48
HSPF: Hot/Mixed/Cold (Heat) 5.79 / 5.35 / 4.96 6.23 / 5.22 / 4.50 4.89 / 4.31 / 3.71 5.31 / 4.29 / 3.52 4.97 / 4.32 / 3.82 4.96 / 4.20 / 3.66
Star Rating: Hot/Mixed/Cold (Cool) 6.5 / 5.5 / 6.0 5.0 / 5.0 / 5.5 4.5 / 4.0 / 4.5 4.0 / 4.0 / 4.0 3.5 / 3.5 / 3.5
Star Rating: Hot/Mixed/Cold (Heat) 4.0 / 3.5 / 3.0 4.5 / 3.5 / 3.0 3.0 / 2.5 / 2.0 3.5 / 2.5 / 2.0 3.0 / 2.5 / 2.0
Maximum Input Power Cool/Heat (W) 2300 3600 4050
Maximum Input Current Cool/Heat (A) 10.5 15.5 17.5
Suitable Area Coverage up to 2.6m insulated ceiling (m2) 11-17 16-23 23-33 27-40 32-47

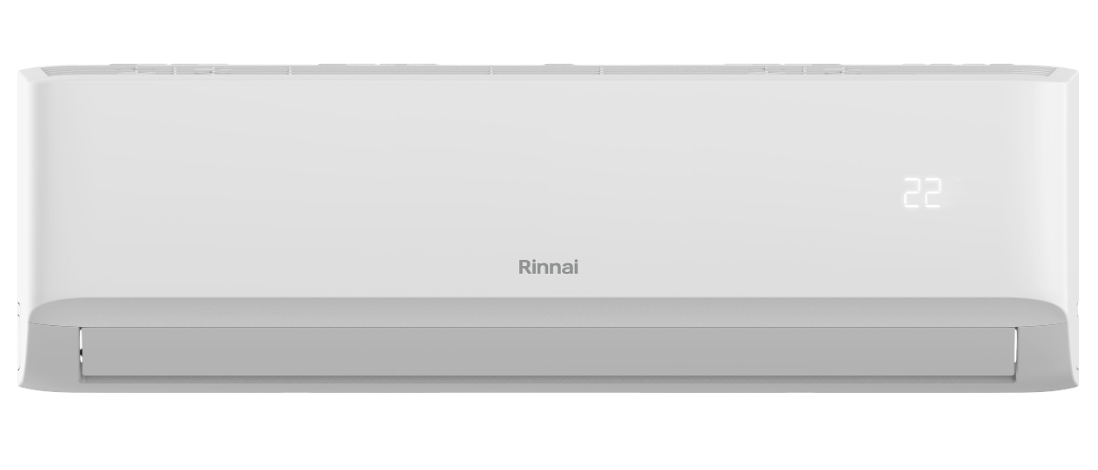

Indoor Unit HINRP26B HINRP35B HINRP50B HINRP60B HINRP70B HINRP80B
Air Flow (Turbo/H/M/L/Min) (L/s) 175 / 139 / 100 / 83 / 56 183 / 147 / 106 / 86 / 58 264 / 222 / 167 / 139 / 89 382 / 303 / 250 / 229 / 147
Moisture Removal (L/h) 1.0 1.2 1.8 2.1 2.4 3.0
Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A) 46.4 / 39 / 32.5 / 30 / 24.5 46.7 / 39 / 32.5 / 30 / 24.5 47.1 / 44.5 / 38 / 34.5 / 28 57.6 / 45 / 39 / 33.5 / 29.5
Air Swing Louvres (Direction) 4-Way Swing
Unit Dimensions (HxWxD) (mm) 295 x 802 x 200 321 x 971 x 228 337 x 1082 x 234
Packing Dimensions (HxWxD) (mm) 375 x 875 x 288 405 x 1045 x 308 415 x 1155 x 318
Net/Gross Weight (kg) 8.5 / 11.5 11.1 / 15.2 13.5 / 17.8
Operating Range Cool/Heat (C) 16 to 32 / 0 to 30

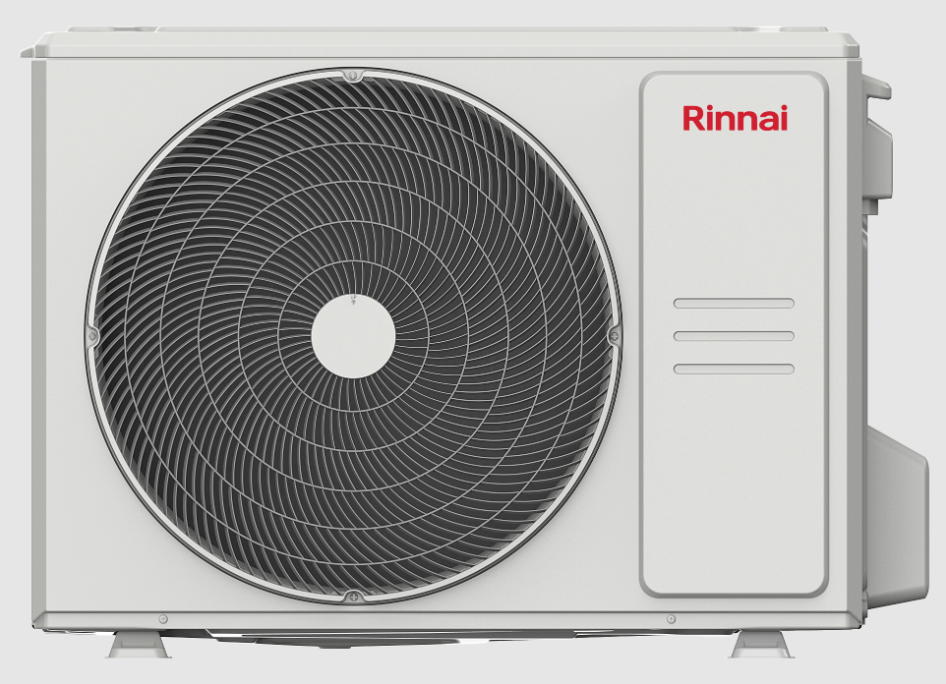

Outdoor Unit HONRP26B HONRP35B HONRP50B HONRP60B HONRP70B HONRP80B
Sound Power Level dB(A) 57.8 58.5 65.2 65 66.5
Sound Pressure Level @1m dB(A) 55.5 59.5 61
Unit Dimensions (HxWxD) (mm) 554 x 805 x 330 673 x 890 x 342
Packing Dimensions (HxWxD) (mm) 615 x 915 x 370 740 x 995 x 398
Net/Gross Weight (kg) 32.2 / 35.1 38.3 / 41.6 42.4 / 46.9
Refrigerant Type/Amount (kg) R32 / 0.90 R32 / 1.26 R32 / 1.40
Pipe Sizes (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7 6.35 / 15.88
Maximum Pipe Length (m) 25 30 50
Chargeless Length (m) 10
Extra Charge for Lengths >10m (g/m) 12
Maximum Vertical Separation (m) 10 20 25
Ambient Temp Limits Cool/Heat (C) 0 to 52 / -15 to 24 0 to 50 / -15 to 24 -15 to 50 / -15 to 24
SKU HSNRP70B-INSTALL
Brand Rinnai
Shipping Weight 56.6000kg
Shipping Cubic 0.290172000m3
Unit Of Measure ea

Warranty

  • Rinnai offers a 5-year warranty for all of their Air Conditioners.
  • Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
