Install Package - Rinnai 5.0kW HSNRT50B Wall Split Wifi Air Conditioning Package

HSNRT50B Rinnai Wall Split Supply & Install




$2,354.00 Incl GST
$2,140.00 Excl GST
In Stock

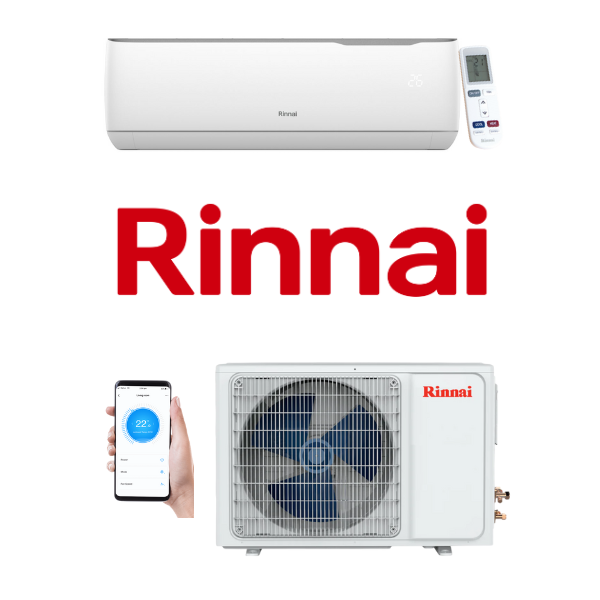

Supply & Installation Package - Rinnai T Series HSNRT50B 5.0kW Wall Split System (Built-In Wi-Fi)

Australian homes not only vary in shape and size but have unique comfort requirements. The Wi-Fi compatible Rinnai T Series Inverter Split System powerfully delivers heating and cooling all year round- no matter where you call home.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

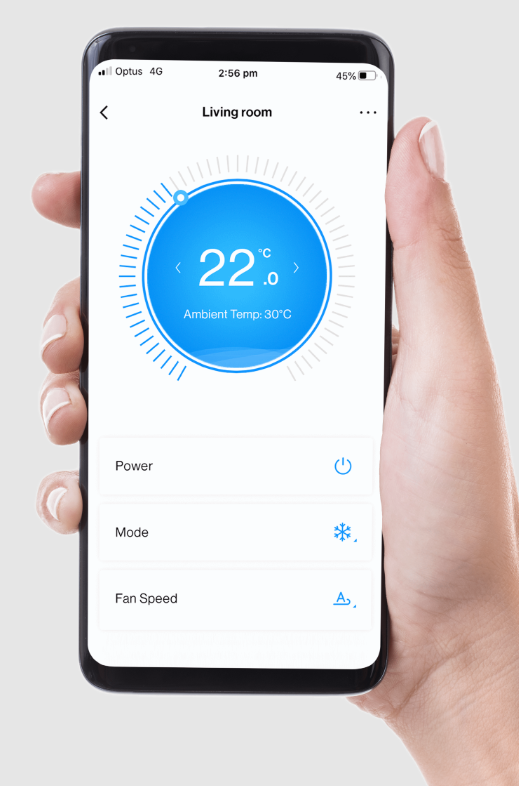

  • Wi-Fi Control
  • Demand Control
  • Quiet Operation
  • Fresh Function
  • Self-Cleaning Function
  • Long Distance Air Supply

(HSNRT50B-INSTALL)

System HSNRT25B HSNRT35B HSNRT50B HSNRT70B HSNRT80B
Rated Cooling Capacity (kW) 2.5 3.5 5.0 7.0 8.0
Rated Heating Capacity (kW) 2.9 4.0 5.2 8.2 8.4
Power Supply (V/Ph/Hz) 220-240 / 1 / 50
Recommended Circuit Breaker (A) 16.0 20.0 25.0
Connectivity Wi-Fi Enabled
Demand Response Enabling Device DRED Enabled
Capacity Range Cool/Heat (kW) 0.6-3.2 / 0.6-3.5 0.8-4.3 / 0.9-4.8 1.3-5.7 / 1.3-6.3 1.8-7.5 / 1.8-8.4 2.8-8.5 / 2.6-8.8
Rated Power Input Cool/Heat (kW) 530 / 680 870 / 1050 1280 / 1260 2000 / 2400 2400 / 3000
Rated Current (A) 3.2 / 3.9 4.0 / 4.8 5.6 / 5.5 8.5 / 10.0 11.0 / 11.0
AEER/ACOP (W/W) 4.94 / 4.24 4.00 / 3.79 4.04 / 4.10 3.51 / 3.41 3.33 / 3.29
Star Rating: Hot/Avg/Cold (Cool) 9.0 / 7.0 / 7.5 5.5 / 5.0 / 5.5 4.5 / 4.0 / 4.5 4.0 / 3.5 / 4.0 3.0 / 2.5 / 3.0
Star Rating: Hot/Avg/Cold (Heat) 3.5 / 3.0 / 2.5 5.5 / 2.5 / 2.0 3.0 / 2.5 / 2.0 3.5 / 2.0 / 1.5 2.5 / 2.0 / 1.5
Maximum Input Power Cool/Heat (W) 1250 1850 2300 2800 3000
Maximum Input Current Cool/Heat (A) 6.0 9.5 12.0 14.0 18.0
Suitable Area Coverage up to 2.6m insulated ceiling (m2) 13-17 18-24 25-34 35-47 40-54
Moisture Removal (L/h) 0.8 1.1 1.6 2.2 2.5

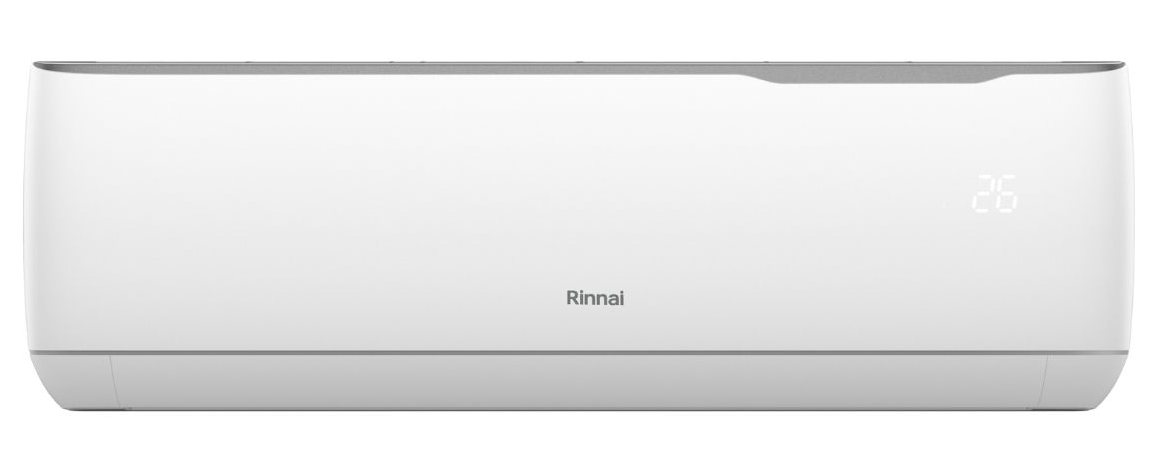

Indoor Unit HINRT25B HINRT35B HINRT50B HINRT70B HINRT80B
Air Flow (Turbo/H/M/L/Min) (L/s) 172 / 153 / 135 / 117 / 78 236 / 207 / 186 / 164 / 114 292 / 258 / 231 / 197 / 153 361 / 319 / 283 / 244 / 189 347 / 306 / 275 / 236 / 183
Sound Power Level dB(A) 54 57 61 64 65
Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A) 43 / 38 / 34 / 30 / 22 46 / 42 / 39 / 35 / 24 49 / 44 / 41 / 36 / 29 50 / 48 / 44 / 40 / 36 50 / 48 / 44 / 40 / 37
Air Swing Louvres (Direction) 4-Way Swing
Unit Dimensions (HxWxD) (mm) 294 x 881 x 194 316 x 940 x 224 316 x 997 x 227 330 x 1132 x 232
Packing Dimensions (HxWxD) (mm) 370 x 965 x 282 385 x 1010 x 307 385 x 1067 x 312 400 x 1205 x 317
Net/Gross Weight (kg) 9.5 / 11.0 12.0 / 14.5 13.0 / 16.0 14.0 / 18.0 14.0 / 17.0
Operating Range Cool/Heat (C) 16 / 32

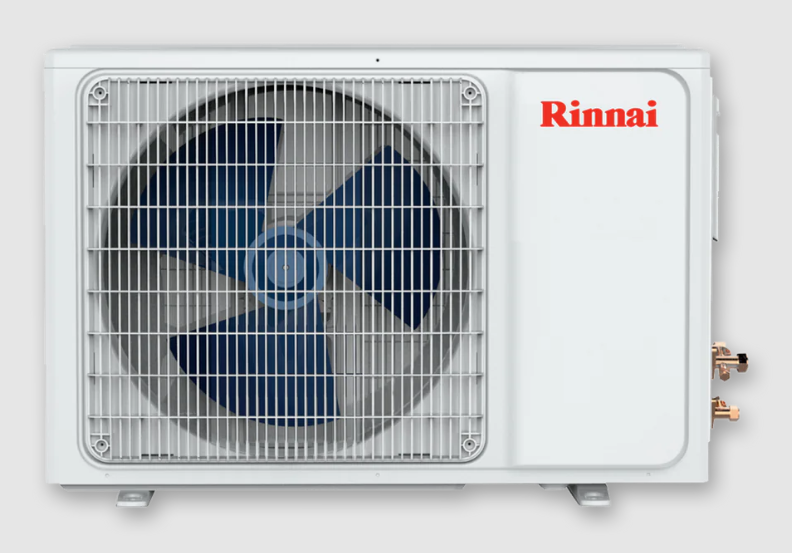

Outdoor Unit HONRT25B HONRT35B HONRT50B HONRT70B HONRT80B
Sound Power Level dB(A) 59 61 60 64 66
Sound Pressure Level @1m dB(A) 54 55 53 58 59
Unit Dimensions (HxWxD) (mm) 545 x 800 x 315 700 x 900 x 350 805 x 970 x 395
Packing Dimensions (HxWxD) (mm) 620 x 920 x 400 770 x 1020 x 430 890 x 1105 x 495
Net/Gross Weight (kg) 28.0 / 31.0 30.5 / 34.0 45.0 / 49.0 49.0 / 53.0 61.0 / 66.0
Refrigerant Type/Amount (kg) R32 / 0.66 R32 / 1.00 R32 / 1.20 R32 / 1.35 R32 / 1.60
Pipe Sizes (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7 6.35 / 15.88
Maximum Pipe Length (m) 20 30
Chargeless Length (m) 10
Extra Charge for Lengths >10m (g/m) 15 30
Maximum Vertical Separation (m) 12 20
Ambient Temp Limits Cool/Heat (C) -15 to 52 / -15 to 24
SKU HSNRT50B-INSTALL
Brand Rinnai
Shipping Weight 58.0000kg
Shipping Cubic 0.292017000m3
Unit Of Measure ea

Warranty

  • Rinnai offers a 5-year warranty for all of their Air Conditioners.
  • Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
