Install Package - Panasonic Z Series CS/CU-Z35AKR 3.5kW Deluxe Wall Split WiFi Air Conditioning Package

Panasonic-CSCU-Z35AKR-INSTALL
Panasonic-CSCU-Z35AKR-INSTALL
Panasonic-CSCU-Z35AKR-INSTALL

Install Package - Panasonic Z Series CS/CU-Z35AKR 3.5kW Deluxe Wall Split WiFi Air Conditioning Package

CSCU-Z35AKR Panasonic Wall Split Supply & Install




$2,105.00 Incl GST
$1,913.64 Excl GST
In Stock

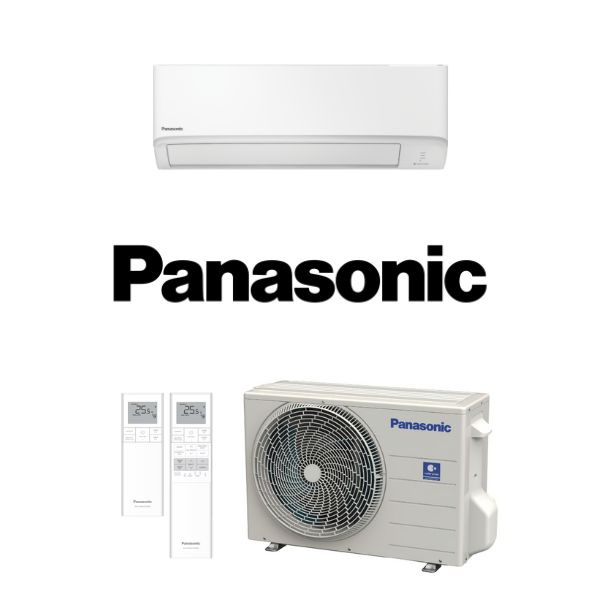

Supply & Installation Package - Panasonic Z Series CS/CU-Z35AKR 3.5kW Deluxe Wall Split System (Built In Wi-Fi Adaptor)

Panasonic Premium Reverse Cycle Inverter Z Series (AKR) is the all-in-one wall-mounted split system for reliable comfort with cooling and heating function. Purify your indoor air with nanoe™ X technology for 24-hour protection. The iAUTO-X function provides faster cooling from start-up while AEROWINGS delivers faster and further airflow across the room. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy continuous cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

  • iAUTO-X
  • ECO Mode with A.I
  • Quiet Mode
  • Fan Mode
  • Soft Dry Operation Mode
  • Airflow Direction Control
  • Nanoe X
  • Odour Removing Function
  • Removable Washable Panel
  • DRED

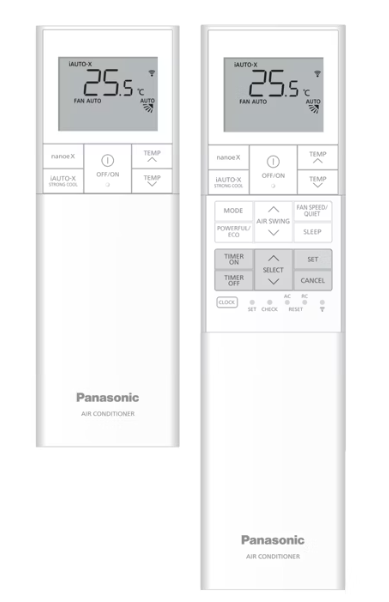

  • LCD Wireless Remote Control
  • Wi-Fi (Built-In)
  • Blue Fin Condenser

(CSCU-Z35AKR-INSTALL)

System Name  CS/CU-Z25AKR  CS/CU-Z35AKR  CS/CU-Z42AKR  CS/CU-Z50AKR  CS/CU-Z60AKR  CS/CU-Z71AKR  CS/CU-Z80YKR  CS/CU-Z95AKR

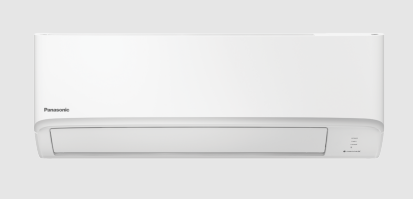

Indoor Unit  CS-Z25AKR  CS-Z35AKR  CS-Z42AKR  CS-Z50AKR  CS-Z60AKR  CS-Z71AKR  CS-Z80YKR  CS-Z95AKR

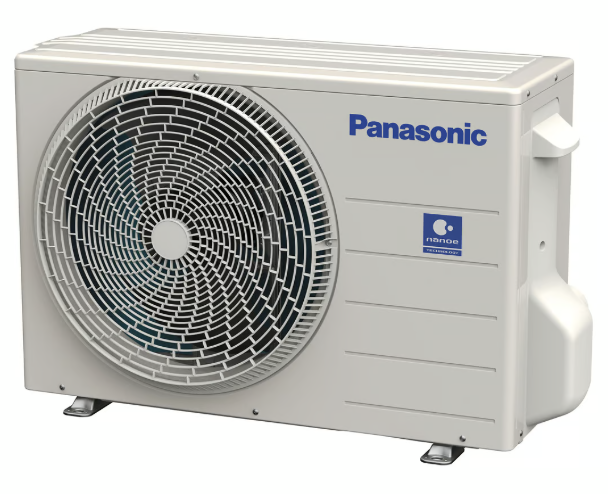

Outdoor Unit  CU-Z25AKR  CU-Z35AKR  CU-Z42AKR  CU-Z50AKR  CU-Z60AKR  CU-Z71AKR  CU-Z80YKR  CU-Z95AKR
Power Supply  1 Phase, 220 ~ 240V, 50Hz
Cooling Capacity (kW)  2.5  3.5  4.2  5.0  6.0  7.1  8.0  9.5
Heating Capacity (kW)  3.0  4.0  5.1  6.0  6.5  8.0  9.0  10.3
EER/COP  4.31 / 4.62  4.27 / 4.60  3.56 / 3.85  3.31 / 3.49  3.24 / 3.44  3.45 / 3.83  3.35 / 3.85  3.35 / 3.71
Refrigerant Type  R32
Indoor Airflow (Cooling/Heating) (L/s)  188 / 200  193 / 202  193 / 202  208 / 228  328 / 339  352 / 367  367 / 377  407 / 420
Dehumid (L/h)  1.50  2.00  2.40  2.80  3.30  4.10  4.70  5.00
Max Pipe Length (m)  20  30
Max Elevation Length (m)  15  20
Outdoor Operating Range (Cooling / Heating)  -10 ~ 46 / -15 ~ 24
Indoor Dimensions (HxWxD) (mm)  290 x 779 x 209  295 x 1040 x 244  309 x 1212 x 269
Outdoor Dimensions (HxWxD) (mm)  542 x 780 x 289  619 x 824 x 299  695 x 875 x 320  795 x 875 x 320
Indoor Weight (kg)  8  12  13  17
Outdoor Weight (kg)  25  31  35  45  51  55
Pipe Sizes (mm) (Liquid/Gas)  6.35 / 9.52  6.35 / 12.7  6.35 / 15.88
SKU CSCU-Z35AKR-INSTALL
Brand Panasonic
Shipping Weight 39.0000kg
Shipping Cubic 0.169393000m3
Unit Of Measure ea

Warranty

Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
