Install Package - Panasonic RZ Series CS/CU-RZ71AKR 7.1kW Wall Split Air Conditioning Package

CSCU-RZ71AKR Panasonic Wall Split Supply & Install




$2,999.00 Incl GST
$2,726.36 Excl GST
In Stock

Supply & Installation Package - Panasonic RZ Series CS/CU-RZ71AKR 7.1kW Wall Split System (Optional Wi-Fi Adaptor)

Panasonic Standard Reverse Cycle Inverter RZ Series (AKR) features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

  • POWERFUL Mode
  • ECO Mode with A.I
  • Inverter Control
  • Quiet Mode
  • Soft Dry Operation Mode
  • Hot Start Control
  • Airflow Direction Control
  • Anti-Bacterial Filter & Odour Removing Function
  • Removable Washable Panel
  • DRED

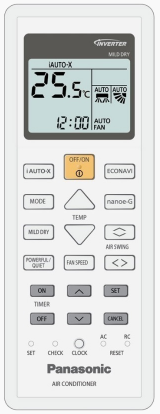

  • LCD Wireles Remote Control Included
  • Optional Wi-Fi - Network Adaptor Required
  • Self Diagnosis Function

(CSCU-RZ71AKR-INSTALL)

System Name  CS/CU-RZ25AKR  CS/CU-RZ35AKR  CS/CU-RZ42AKR  CS/CU-RZ50AKR  CS/CU-RZ60AKR  CS/CU-RZ71AKR  CS/CU-RZ80YKR  CS/CU-RZ95AKR
Indoor Unit  CS-RZ25AKR  CS-RZ35AKR  CS-RZ42AKR  CS-RZ50AKR  CS-RZ60AKR  CS-RZ71AKR  CS-RZ80YKR  CS-RZ95AKR
Outdoor Unit  CU-RZ25AKR  CU-RZ35AKR  CU-RZ42AKR  CU-RZ50AKR  CU-RZ60AKR  CU-RZ71AKR  CU-RZ80YKR  CU-RZ95AKR
Power Supply  1 Phase, 220 ~ 240V, 50Hz
Cooling Capacity (kW)  2.5  3.5  4.2  5.0  6.0  7.1  8.0  9.5
Heating Capacity (kW)  3.0  4.0  5.1  6.0  6.5  8.0  9.0  10.3
EER/COP  4.31 / 4.62  4.27 / 4.60  3.56 / 3.85  3.31 / 3.49  3.24 / 3.44  3.45 / 3.83  3.35 / 3.85  3.35 / 3.71
Refrigerant Type  R32
Indoor Airflow (Cooling/Heating) (L/s)  188 / 200  193 / 202  193 / 202  208 / 228  328 / 339  352 / 367  367 / 377  407 / 420
Dehumid (L/h)  1.50  2.00  2.40  2.80  3.30  4.10  4.70  5.00
Max Pipe Length (m)  20  30
Max Elevation Length (m)  15  20
Outdoor Operating Range (Cooling / Heating)  -10 ~ 46 / -15 ~ 24
Indoor Dimensions (HxWxD) (mm)  290 x 779 x 209  295 x 1040 x 244  309 x 1212 x 269
Outdoor Dimensions (HxWxD) (mm)  542 x 780 x 289  619 x 824 x 299  695 x 875 x 320  795 x 875 x 320
Indoor Weight (kg)  8  12  13  17
Outdoor Weight (kg)  25  30  31  35  45  51  55
Pipe Sizes (mm) (Liquid/Gas)  6.35 / 9.52  6.35 / 12.7  6.35 / 15.88
SKU CSCU-RZ71AKR-INSTALL
Brand Panasonic
Shipping Weight 58.0000kg
Shipping Cubic 0.269459000m3
Unit Of Measure ea
