Install Package - Mitsubishi Heavy (MHI) Avanti WiFi DXK18ZSA-WF1 5.0kW Wall Split Air Conditioning Package

DXK18ZSA-WF1/DXC18ZSA-W MHI Wall Split Supply & Install




$2,713.00 Incl GST
$2,466.36 Excl GST
In Stock

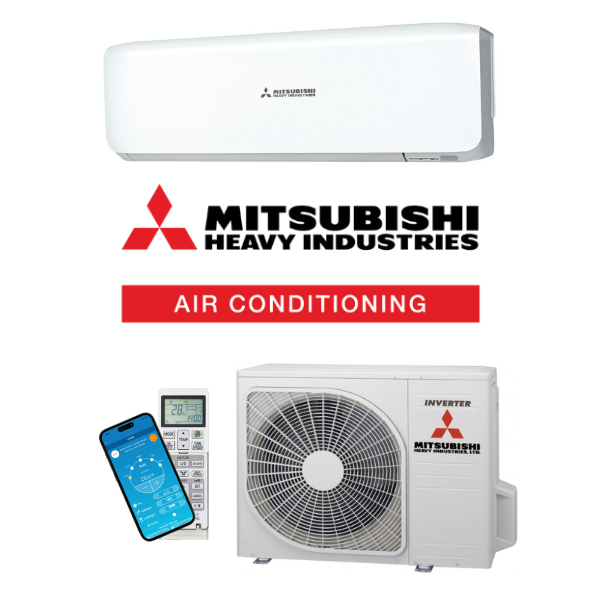

Supply & Installation Package - Mitsubishi Heavy Industries Avanti Series DXK18ZSA-WF1-SET 5.0kW Wall Split System (Built-In Wi-Fi)

The Avanti® split system features a sleek and stylish design and incorporates a range of convenient features and functions. These include various timers and scheduling options as well as ‘Clean Air Technology’ which helps improve indoor air quality by capturing and neutralising fine smoke particles, allergens, odours, bacteria and viruses. The Avanti® is best suited to small and medium spaces.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

  • Modern and stylish design
  • 3D Auto airflow for effective and even air distribution
  • Allergen clear system to capture and eliminate allergens
  • Energy efficient R32 refrigerant

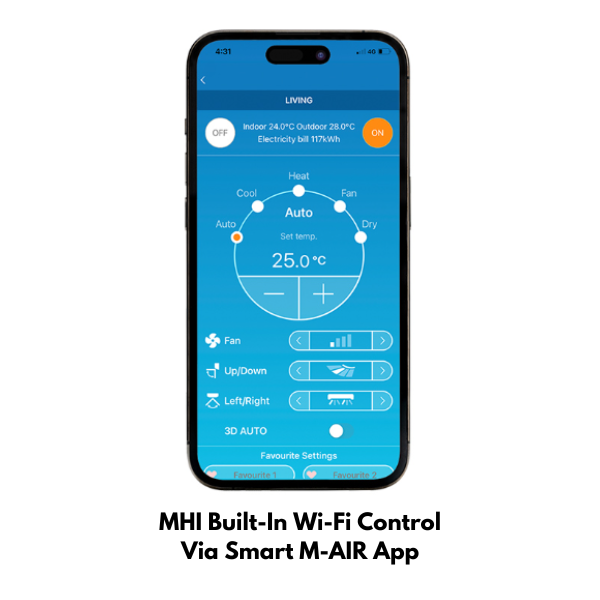

  • New WF1 range: Built-in Wi-Fi, NOVAShield™ PM2.5 Filter, and Voice Control Compatibility (via Google or Alexa device, sold separately)



(DXK18ZSA-WF1-Set-INSTALL)

System Name  DXK06ZSA-WF1-SET  DXK09ZSA-WF1-SET  DXK12ZSA-WF1-SET  DXK18ZSA-WF1-SET

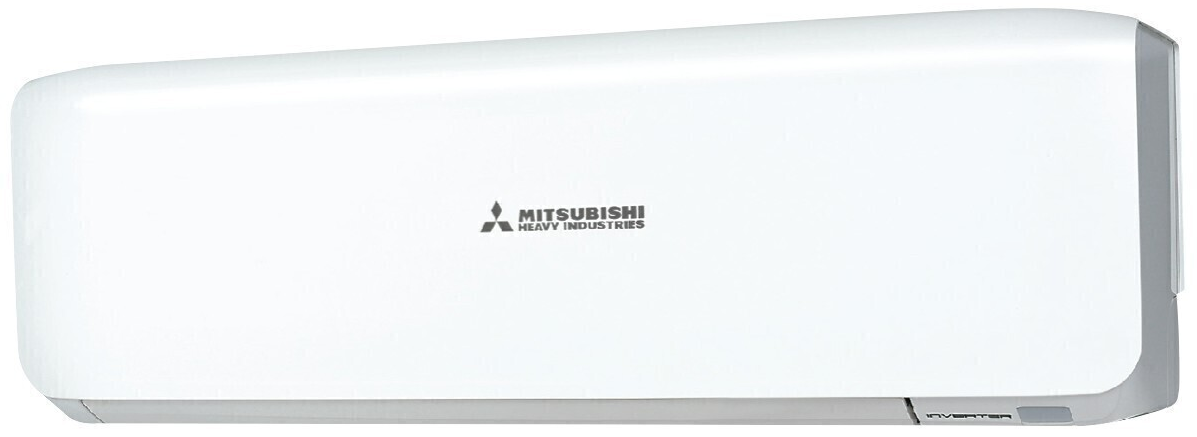

Indoor Unit  DXK06ZSA-WF1  DXK09ZSA-WF1  DXK12ZSA-WF1  DXK18ZSA-WF1

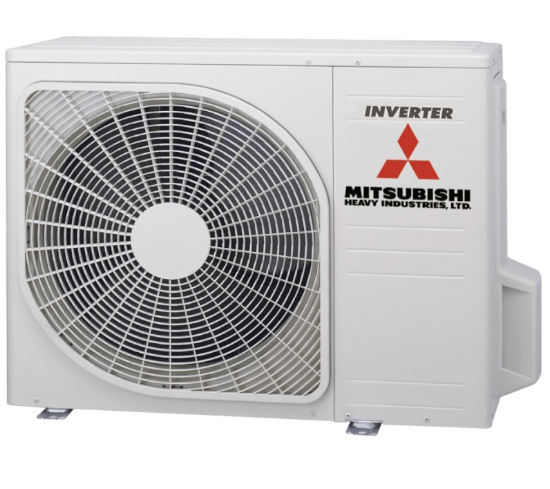

Outdoor Unit  DXC06ZSA-W  DXC09ZSA-W  DXC12ZSA-W  DXC18ZSA-W
Power Supply  1 Phase, 220 ~ 240V, 50Hz
Cooling Capacity (kW)  2.0  2.5  3.5  5.0
Heating Capacity (kW)  2.7  3.2  3.7  5.8
EER/COP  4.88 / 4.82  4.90 / 4.92  4.27 / 4.57  3.60 / 3.89
Outdoor Sound Power dB(A)  56  58  62  61
Refrigerant Type/Amount (kg)  R32 / 0.58  R32 / 0.78  R32 / 1.05
Max Pipe Length (m)  20  25
Max Level Difference (m)  I.D.U Higher 10 / O.D.U Higher 10  I.D.U Higher 15 / O.D.U Higher 15
Indoor Dimensions (HxWxD) (mm)  290 x 870 x 230
Outdoor Dimensions (HxWxD) (mm)  540 x 780(+62) x 290  640 x 800(+71) x 290
Indoor Weight (kg)  9.5  10
Outdoor Weight (kg)  33  36  43.5
Pipe Sizes (mm) (Liquid/Gas)  6.35 / 9.52  6.35 / 12.7
SKU DXK18ZSA-WF1-Set-INSTALL
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 53.5000kg
Shipping Cubic 0.219687000m3
Unit Of Measure ea

Warranty

  • Mitsubishi Heavy Industries offers up to a 5-year parts and labour warranty for all of their Air Conditioners. Note your product might not be eligible for the full 5-year warranty. Refer to their terms and conditions.

  • Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
