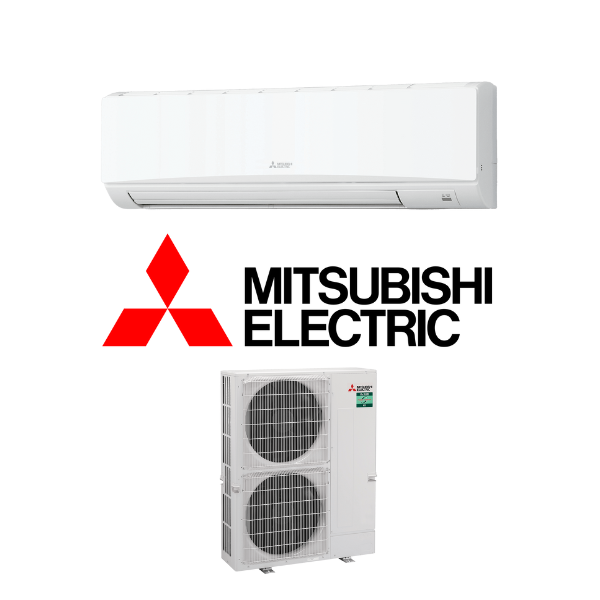

Install Package - Mitsubishi Electric PKAM100KAL2R1YKIT 10.0kW Wall Split 3 Phase Air Conditioning Package
PKAM100KAL2R1YKIT Wall Split Supply & Install
$5,810.00 Excl GST
Supply & Installation Package - Mitsubishi Electric PKAM100KAL2R1YKIT 7.1kW Three Phase Wall Split System (Optional Wi-Fi Adaptor)
Standard Installation Inclusions:
- Wall Split Air Conditioner Installation
- Suitable for a single-story (lowset) home
- Back-to-back installation with a maximum 3m pipe run
- Outdoor unit mounted on the ground
Terms & Conditions:
- The quoted price represents “Pricing From” based on a standard installation.
- Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
- Pricing does not cover new builds or replacement installations.
- Brisbane pricing applies to the Brisbane region.
- Sydney pricing applies to areas within 20km of our Prestons office.
- For other areas, a custom quote will be provided.
For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
- Flat Panel - A flat panel layout has been adopted for the PKA-M Series. Pursuing a design that harmonises with virtually any interior.
- Quick Clean Grille - The intake grille filter can easily slide out completely. This allows easy cleaning without any special tools (can be washed in water).
- Connects with PUZ-ZM Power Inverter Series - The Mitsubishi Electric PUZ-ZM outdoor units feature reduced power consumption and make it ideally suited to commercial applications.
- Wi-Fi Control* - 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available
(PKAM100KAL2R1YKIT-INSTALL)
| System Name | PKAM71KAL2R1KIT | PKAM100KAL2R1VKIT | PKAM100KAL2R1YKIT |
|---|---|---|---|

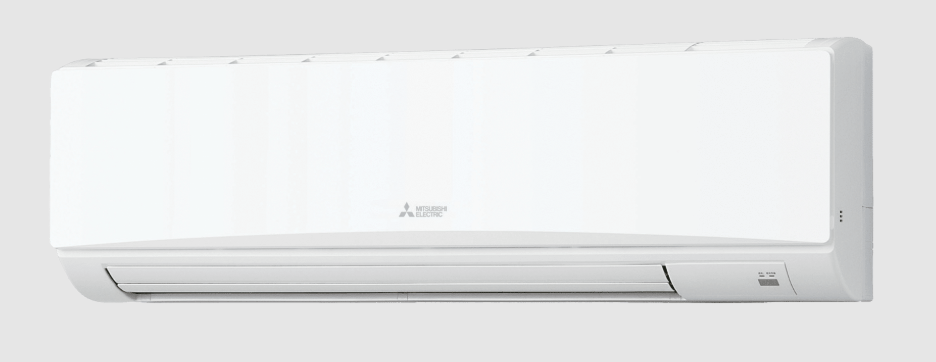

| Indoor Unit | PKA-M71KAL2R1.TH | PKA-M100KAL2R1.TH | PKA-M100KAL2R1.TH |

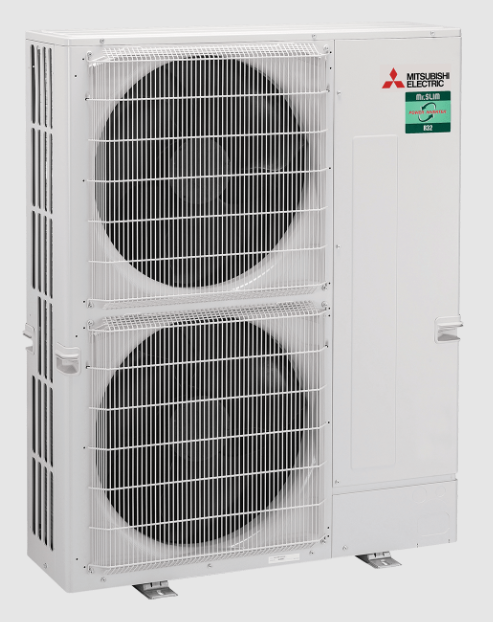

| Outdoor Unit | PUZ-ZM71VHA1-A | PUZ-ZM100VKA2-A.TH | PUZ-ZM100YKA3-A.TH |
| Power Supply | 1 Phase, 230V, 50Hz | 3 Phase, 400V, 50Hz | |
| Cooling Capacity (kW) | 7.1 | 10.0 | |
| Heating Capacity (kW) | 8.0 | 11.2 | |
| EER/COP | 3.81 / 3.77 | 3.55 / 3.61 | |
| Refrigerant Type | R32 | ||
| Max Pipe Length (m) | 50 | 75 | |
| Outdoor Operating Range (Cooling / Heating) | -15 ~ 52 / -20 ~ 21 | ||
| Indoor Dimensions (HxWxD) (mm) | 365 x 1170 x 295 | ||
| Outdoor Dimensions (HxWxD) (mm) | 943 x 950 x 330(+25) | 1338 x 1050 x 330(+40) | |
| Indoor Weight (kg) | 21 | ||
| Outdoor Weight (kg) | 70 | 113 | 114 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||
| SKU | PKAM100KAL2R1YKIT-INSTALL |
| Brand | Mitsubishi Electric |
| Shipping Weight | 135.0000kg |
| Shipping Cubic | 0.645793000m3 |
| Unit Of Measure | ea |
Warranty
Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
