Install Package - Mitsubishi Electric MSZEF50VGKDWKIT 5.0kW Wi-Fi Wall Split Air Conditioning Package
MSZEF50VGKDWKIT Wall Split Supply & Install (White)
$2,715.45 Excl GST

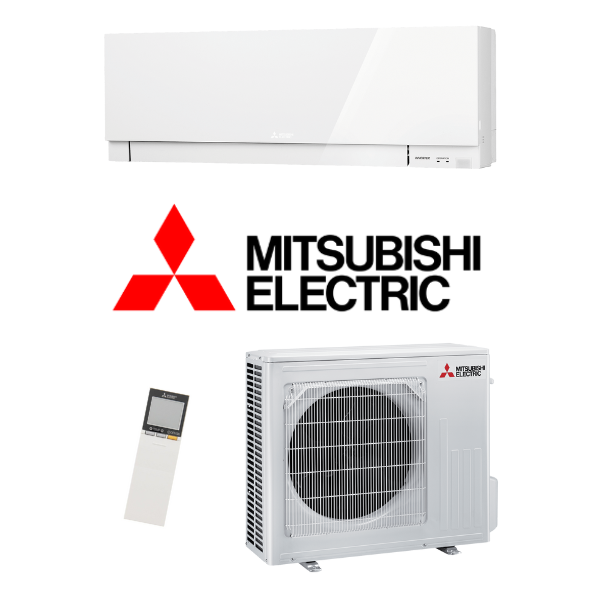

Supply & Installation Package - Mitsubishi Electric MSZEF50VGKDWKIT 5.0kW Wall Split System (White) (Built-In Wi-Fi)
Combining contemporary clean lines with sophistication and efficiency, the MSZ-EF split air conditioners provide optimal indoor comfort and better indoor air quality while expressing a unique interior design style in your home.
Standard Installation Inclusions:
- Wall Split Air Conditioner Installation
- Suitable for a single-story (lowset) home
- Back-to-back installation with a maximum 3m pipe run
- Outdoor unit mounted on the ground
Terms & Conditions:
- The quoted price represents “Pricing From” based on a standard installation.
- Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
- Pricing does not cover new builds or replacement installations.
- Brisbane pricing applies to the Brisbane region.
- Sydney pricing applies to areas within 20km of our Prestons office.
- For other areas, a custom quote will be provided.
For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
- Slim-line in Design with 3 Colour Options - Appealing Design Matches any Room Decor
- 7-Day Programmable Timer
- Quiet 21dB Noise Level in Quiet Mode (EF25-35)
- Built In Wi-Fi Control
- Nano Platinum Filter
- Plasma Quad Connect Air Purifying Filter
- R32 Refrigerant
- Backlit Controller
(MSZEF50VGKDWKIT-INSTALL)
| System Name | MSZEF25VGKD(W/B/S)KIT | MSZEF35VGKD(W/B/S)KIT | MSZEF42VGKD(W/B/S)KIT | MSZEF50VGKD(W/B/S)KIT |
|---|---|---|---|---|
| Indoor Unit | MSZ-EF25VGKD(W/B/S)-A1 | MSZ-EF35VGKD(W/B/S)-A1 | MSZ-EF42VGKD(W/B/S)-A1 | MSZ-EF50VGKD(W/B/S)-A1 |
| Outdoor Unit | MUZ-EF25VGD-A1 | MUZ-EF35VGD-A1 | MUZ-EF50VGD-A1 | MUZ-EF60VGD-A1 |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||
| Refrigerant | R32 | |||
| Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 |
| Heating Capacity (kW) | 3.2 | 4.0 | 5.4 | 5.8 |
| Capacity Min-Max Cool/Heat (kW) | 0.9-3.5 / 1.0-4.2 | 1.1-4.0 / 1.3-5.1 | 0.9-4.6 / 1.3-6.3 | 1.4-5.4 / 1.4-7.5 |
| Total Rated Input Cool/Heat (kW) | 0.54 / 0.70 | 0.91 / 0.95 | 1.20 / 1.46 | 1.55 / 1.56 |
| Total Input Min-Max Cool/Heat (kW) | 0.23-1.15 / 0.23-1.17 | 0.21-1.50 / 0.21-1.33 | 0.15-1.93 / 0.26-2.05 | 0.30-1.98 / 0.30-2.64 |
| EER/COP | 4.63 / 4.57 | 3.85 / 4.21 | 3.50 / 3.71 | 3.23 / 3.72 |
| AEER/ACOP | 4.60 / 4.55 | 3.83 / 4.20 | 3.49 / 3.70 | 3.22 / 3.71 |
| TCSPF Residential (H/Avg/C) - Cool | 6.08 / 5.71 / 5.91 | 5.29 / 5.02 / 5.25 | 4.73 / 4.50 / 4.70 | 4.77 / 4.55 / 4.84 |
| HSPF Residential (H/Avg/C) - Heat | 4.77 / 4.48 / 4.05 | 4.50 / 4.20 / 3.77 | 4.58 / 4.07 / 3.55 | 4.44 / 4.02 / 3.60 |
| ZERL Residential Star Rating (H/Avg/C) - Cool | 4.5 / 4.0 / 4.0 | 3.5 / 3.5 / 3.5 | 3.0 / 3.0 / 3.0 | |
| ZERL Residential Star Rating (H/Avg/C) - Heat | 3.0 / 2.5 / 2.5 | 3.0 / 2.5 / 2.0 | 2.5 / 2.5 / 2.0 | |
| Rated Running Current Cool/Heat (A) | 3.0 / 3.6 | 4.2 / 4.4 | 5.4 / 6.5 | 6.9 / 7.1 |
| Sound Pressure Level (Q/L/M/H/SH) dBA - Cool | 19 - 23 - 29 - 36 - 42 | 21 - 24 - 30 - 36 - 42 | 28 - 31 - 35 - 39 - 43 | 30 - 33 - 36 - 40 - 43 |
| Sound Pressure Level (Q/L/M/H/SH) dBA - Heat | 21 - 24 - 29 - 37 - 45 | 21 - 24 - 30 - 38 - 46 | 28 - 30 - 35 - 41 - 48 | 30 - 33 - 37 - 43 - 49 |
| Sound Pressure Level Out (PWL) dBA - Cool | 47(58) | 49(62) | 50(62) | 52(65) |
| Sound Pressure Level Out (PWL) dBA - Heat | 48(61) | 50(63) | 51(64) | 52(65) |
| Air Volume In Cool/Heat (Quiet-SHi) L/s | 67-175 / 67-198 | 67-175 / 67-212 | 97-187 / 92-220 | 97-188 / 107-243 |
| Max. Running Current (A) | 7.1 | 10.0 | 14.0 | |
| Indoor Dimensions (HxWxD) (mm) | 299 x 885 x 195 | |||
| Outdoor Dimensions (HxWxD) (mm) | 550 x 800 x 285 | 714 x 800 x 285 | ||
| Indoor Weight (kg) | 11.5 | |||
| Outdoor Weight (kg) | 31 | 34 | 35 | 40 |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | |||
| Max Piping Length/Height (m) | 20 / 12 | 30 / 15 | ||
| Outdoor Operating Range Cool/Heat (C) | -10 to 46 / -15 to 24 | |||
| Refrigerant Amount Pre-Charged (kg) | 0.62 | 0.74 | 1.05 | |
| SKU | MSZEF50VGKDWKIT-INSTALL |
| Brand | Mitsubishi Electric |
| Unit Of Measure | ea |
Warranty
Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
