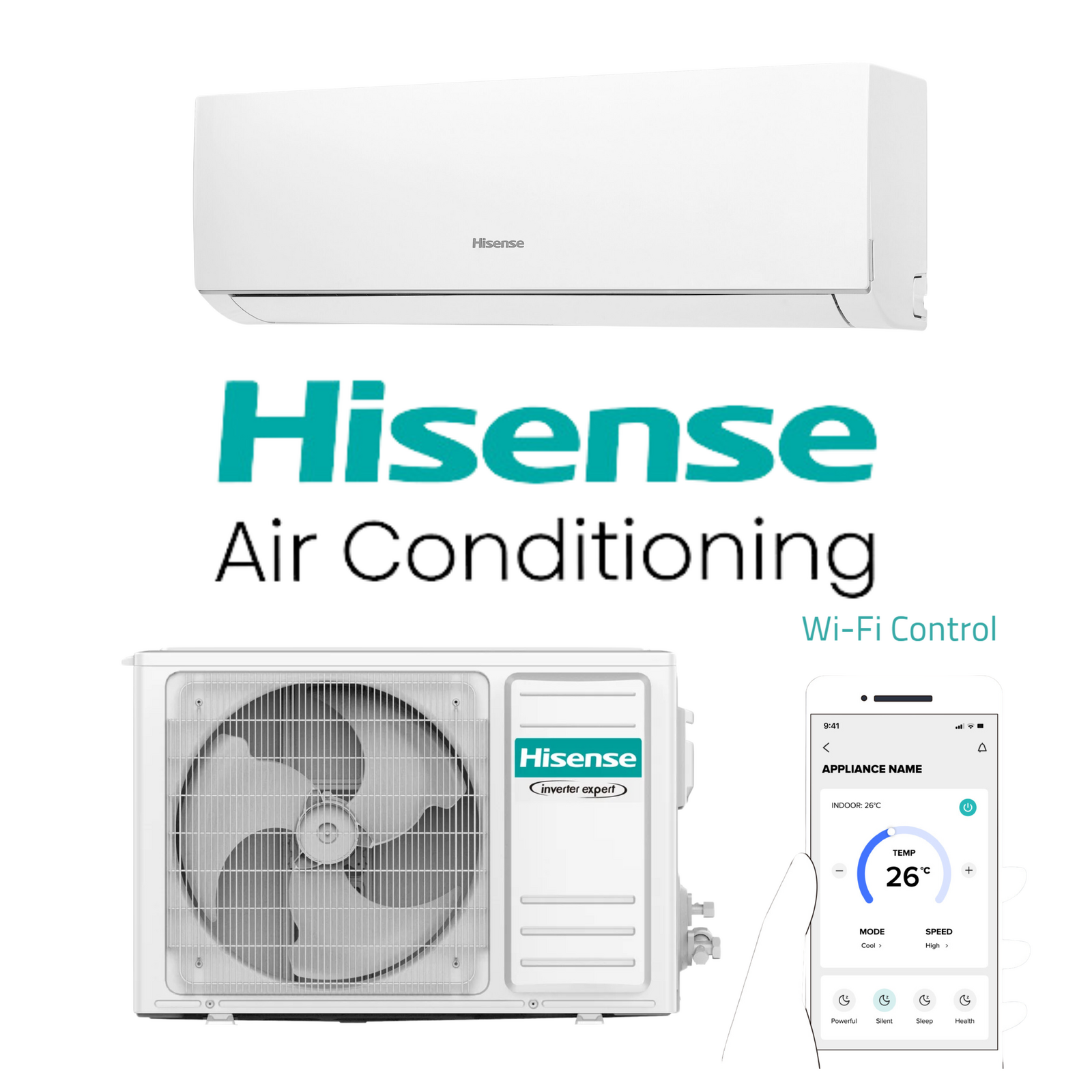

Install Package - Hisense J-Series HAWJ24KRP-SET 7.1kW Wall Split Wifi Air Conditioning Package

Install Package - Hisense J-Series HAWJ24KRP-SET 7.1kW Wall Split Wifi Air Conditioning Package

HAWJ24KRP-I / HAWJ24KRP-O Wall Split Supply & Install




$2,443.00 Incl GST
$2,220.91 Excl GST
In Stock

Supply & Installation Package - Hisense J Series HAWJ24KRP-SET 7.1kW Wall Split System (Built In Wi-Fi)

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

  • Easy Installation – Equipped with a supporting bar and frame, that allows for seamless installation.

  • Eco-friendly R32 Refrigerant – Ultra-low energy consumption, effective power saving, non-toxic and environmentally friendly.

  • Voice Control – When the air conditioner is connected to Wi-Fi, you can operate it using voice control through Google Home or Amazon Alexa. This allows you to use verbal commands to set modes, adjust temperatures and more.

  • Wi-Fi Control – Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.

(HAWJ24KRP-Set-INSTALL)

System Names HAWJ9KR-SET HAWJ12KR-SET HAWJ18KR-SET HAWJ24KR-SET HAWJ28KR-SET
Indoor Units HAWJ9KR-I HAWJ12KR-I HAWJ18KR-I HAWJ24KRP-I HAWJ28KR-I
Outdoor Units HAWJ9KR-O HAWJ12KR-O HAWJ18KR-O HAWJ24KRP-O HAWJ28KR-O
Rated Cooling Capacity (kW) 2.5 3.5 5.3 7.1 8.0
Rated Heating Capacity (kW) 3.1 3.8 5.4 7.2 8.0
Rated Input Cool/Heat (W) 620 / 690 900 / 890 1590 / 1450 2150 / 2100 2460 / 2460
Moisture Removal (L/H.r) 0.9 2.0 2.5
Airflow Distance (m) 10 13 14
EER/COP (W/W) 4.03 / 4.49 3.89 / 4.27 3.33 / 3.72 3.30 / 3.43 3.25 / 3.25
Outdoor Temperature Range Cool/Heat (C) -15 to 46 / -15 to 24
Refrigerant Type/kg R32 / 0.7 R32 / 0.8 R32 / 1.15 R32 / 1.4 R32 / 1.58
Indoor Unit Noise Level (H/L/Fan Only) (dBA) 39 / 25 / 19 41 / 25 / 19 44 / 32 / 19 48 / 35 / 19 47 / 32 / 19
Outdoor Unit Noise Level (dBA) 60 61 65 68
Power Supply 1 Phase, 50Hz, 220-240V
Rated Current (Cool/Heat) (A) 2.8 / 3.1 4.1 / 4.1 7.2 / 6.5 9.6 / 9.4 11 / 11
Expansion Device Capillary EEV (Electronic Expansion Valve)
Evaporator Copper Tube and Aluminium Finish
Condenser Copper Tube and Aluminium Finish
Pipe Sizes (Liquid/Gas) (mm) 1/4 + 3/8 1/4 + 1/2 3/8 + 5/8
Max Vertical Height Diff between ODU IDU 20/10 25/10 30/20 40/20
Pre-Charged Length (m) 10 5
Indoor Net Dimensions (HxWxD) (mm) 270 x 815 x 212 315 x 915 x 235 315 x 1085 x 235
Outdoor Net Dimensions (HxWxD) (mm) 540 x 780 x 260 585 x 810 x 280 650 x 860 x 310 750 x 900 x 340
Indoor Package Dimensions (HxWxD) (mm) 335 x 870 x 265 390 x 1000 x 315 390 x 1170 x 315
Outdoor Package Dimensions (HxWxD) (mm) 600 x 910 x 360 630 x 940 x 385 720 x 995 x 420 820 x 1060 x 450
Indoor Weight (Net/Gross) (kg) 8.5 / 11 12.5 / 14.5 13.5 / 16 13 / 16
Outdoor Weight (Net/Gross) (kg) 25.5 / 28 28 / 30 34 / 37 43.5 / 47.5 52 / 56
SKU HAWJ24KRP-Set-INSTALL
Brand Hisense
Shipping Weight 63.5000kg
Shipping Cubic 0.444623000m3
Unit Of Measure ea

Warranty

Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
