Install Package - Fujitsu Comfort 3.4kW SET-ASTH12KNCA Wall Split Air Conditioning Package

ASTH12KNCA / AOTH12KNCA Wall Split Supply & Install




$2,025.00 Incl GST
$1,840.91 Excl GST
In Stock

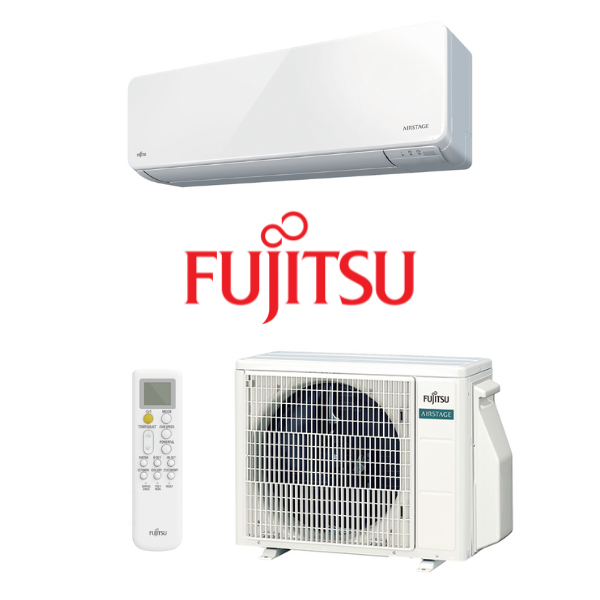

Supply & Installation Package - Fujitsu Comfort Range SET-ASTH12KNCA 3.4kW Wall Split System (Optional Wi-Fi Adaptor)

With a compact and featuring a modern aesthetic they are a suitable solution for indoor comfort both residentially and commercially. Ideal for small rooms, the Fujitsu's Comfort range of wall mounted split system air conditioning units provide energy efficient, all-year-round climate control for the home and uses R32 refrigerant. Other features include super-quiet mode and powerful operation mode.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

  • 8 Models from 2.5kW to 9.5kW
  • Compact and Modern Aesthetic
  • Award-Winning design
  • R32 refrigerant
  • Cooling operation range up to 50C ambient temperature

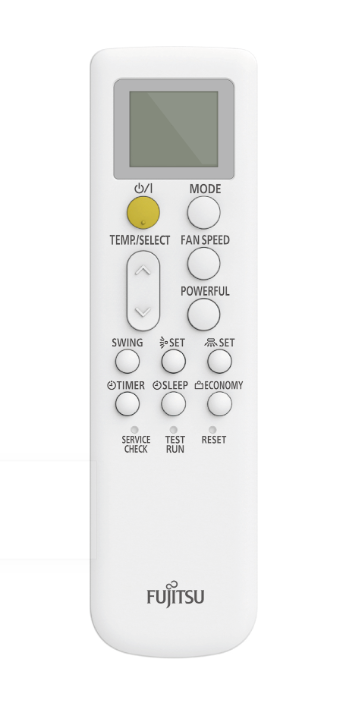

  • Wireless Remote Controller Included

(SET-ASTH12KNCA-INSTALL)

System Names SET-ASTH09KNCA SET-ASTH12KNCA SET-ASTH14KNCA SET-ASTH18KNTA SET-ASTH22KNTA SET-ASTH24KNTA SET-ASTH30KNTA SET-ASTH34KNTA

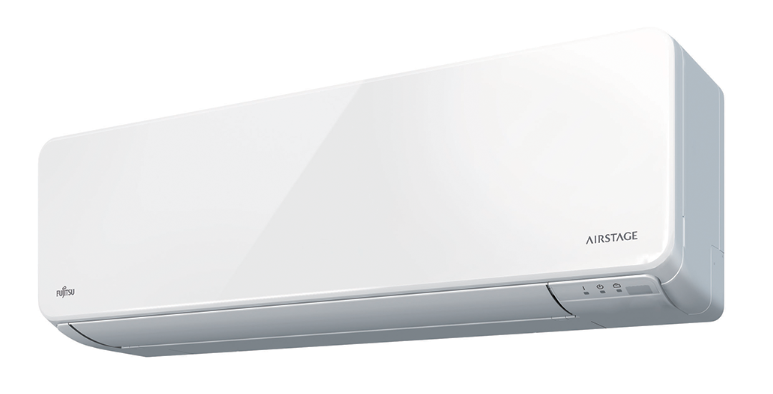

Indoor Units ASTH09KNCA ASTH12KNCA ASTH14KNCA ASTH18KNTA ASTH22KNTA ASTH24KNTA ASTH30KNTA ASTH34KNTA

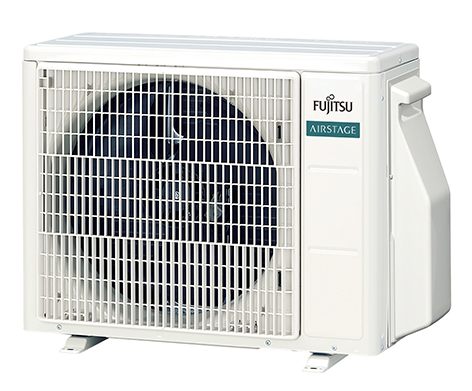

Outdoor Units AOTH09KNCA AOTH12KNCA AOTH14KNCA AOTH18KNTA AOTH22KNTA AOTH24KNTA AOTH30KNTA AOTH34KNTA
Power Source (V/Ph/Hz) 220-240 / 1 / 50
Rated Cooling Capacity (kW) 2.5 3.4 4.2 5.0 6.0 7.1 8.5 9.5
Rated Heating Capacity (kW) 3.2 4.0 4.7 5.2 6.5 8.0 9.0 10.3
EER / COP 4.24 / 4.16 3.54 / 4.16 3.41 / 4.00 3.47 / 3.91 3.37 / 3.51 3.23 / 3.85 3.41 / 3.77 3.49 / 3.39
Outdoor Sound Power (dBA) 62 65 65 61 68 67 65 70
Indoor dimensions (H x W x D) (mm) 270 x 784 x 224 270 x 834 x 215 270 x 834 x 232 280 x 980 x 240 340 x 1150 x 280
Outdoor dimension (H x W x D) (mm) 541 x 663 x 290 542 x 799 x 290 632 x 799 x 290 788 x 940 x 320 998 x 940 x 320
Indoor Weight (kg) 8 9.5 10 11 12.5 16.5
Outdoor Weight (kg) 25 31 33 36 39 53 62
Pipe Sizes (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7 9.52 / 15.88
Pipe Length (m) (Max / Precharged) 20 (15) 25 (15) 30 (15) 30 (20) 30 (25)
Max Height Difference (m) 15 20 25 20
Operation Range Cooling (Min to Max CDB) -10 to 50
Operation Range Heating (Min to Max CDB) -15 to 24
Refrigerant Type/Amount (g) R32 / 550 R32 / 700 R32 / 850 R32 / 890 R32 / 960 R32 / 1200 R32 / 1700 R32 / 2300
SKU SET-ASTH12KNCA-INSTALL
Brand Fujitsu
Shipping Weight 34.5000kg
Shipping Cubic 0.152432000m3
Unit Of Measure ea

Warranty

Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
