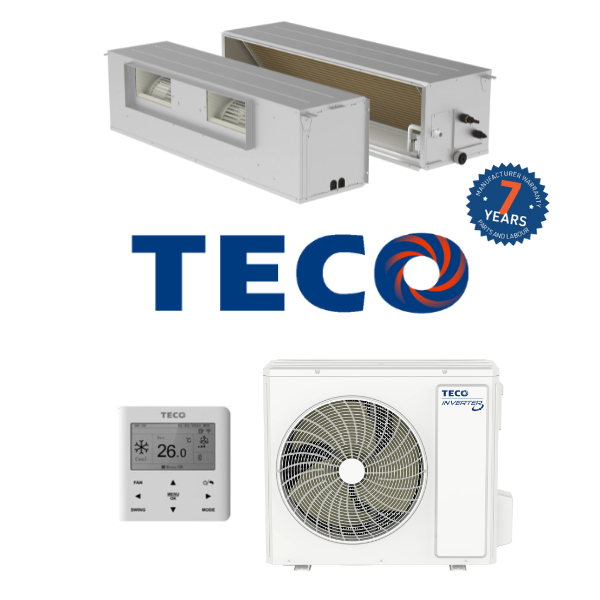

TECO TDS-TSO125HVSWDG 12.5kW 1 Phase Ducted Air Conditioning System

TECO-TDS-TSO125HVSWDG
TECO-TDS-TSO125HVSWDG
TECO-TDS-TSO125HVSWDG

TECO TDS-TSO125HVSWDG 12.5kW 1 Phase Ducted Air Conditioning System

TDS125HVSWDG / TSO125HVWDG Ducted System




$3,868.00 Incl GST
$3,516.36 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System TDS-TSO100HVWDG TDS-TSO125HVSWDG TDS-TSO140HVSWDG TDS-TSO160HVSWDG
Indoor Unit TDS100HVWDG TDS125HVSWDG TDS140HVSWDG TDS160HVSWDG
Outdoor Unit TSO100HVWDG TSO125HVWDG TSO140HVWDG TSO160HVWDG
Power Supply 1 Phase, 220-240V, 50Hz
Cooling Capacity Rated/Min-Max kW 10.0 (3.0-11.7) 12.5 (3.6-14.0) 14.0 (4.2-16.0) 16.0 (4.8-18.0)
Heating Capacity Rated/Min-Max 12.0 (3.6-13.5) 14.0 (4.2-15.0) 16.0 (4.8-17.0) 18.0 (5.4-20.0)
AEER/ACOP 3.7 / 4.0 3.4 / 3.8 3.5 / 3.8 3.3 / 3.8
Cooling Star Rating (Hot/Avg/Cold) 4 / 3.5 / 4 3.5 / 3 / 3 3.5 / 3 / 3.5
Heating Star Rating (Hot/Avg/Cold) 3 / 2.5 / 2 3.5 / 2.5 / 2 3 / 2.5 / 2 3.5 / 2.5 / 2
Cooling Current Input Range A 2.3 - 20.0 3.2 - 25.0 3.7 - 28.0 4.1 - 32.0
Heating Current Input Range 2.7 - 20.0 3.7 - 25.0 4.1 - 28.0 4.6 - 32.0
Standby Power Consumption W 4.0 5.1 12.5 9.8
Indoor Airflow Volume P-Hi/H/M/L m3/h 2100 / 1900 / 1700 / 1400 2800 / 2500 / 2200 / 1800 3200 / 2800 / 2400 / 2000 3500 / 3100 / 2700 / 2300
Indoor Sound Pressure Level H/M/L dBA 42 / 41 / 40 42 / 40 / 39 45 / 43 / 41 50 / 48 / 46
Outdoor Sound Pressure Level (H) 58 59 60
Outdoor Fan Quantity 1 2
Operation Range Cool/Heat C -15 to 52 / -15 to 24
Refrigerant Type/Charge kg R32 / 2.2 R32 / 2.4 R32 / 2.8 R32 / 3.3
Connection Pipe Max Height m 30
Connection Pipe Max Length 75
Pipe Sizes (Liquid/Gas) mm 9.52 / 15.88
Indoor Unit Dimensions (HxWxD) 260 x 1340 x 655 360 x 1350 x 720
Outdoor Unit Dimensions (HxWxD) 820 x 940 x 370 1260 x 900 x 340
Indoor Net/Gross Weight kg 43 / 49 57 / 67 60 / 70
Outdoor Net/Gross Weight 67 / 79 90 / 99 97 / 106

(TDS-TSO125HVSWDG)

System TDS-TSO100HVWDG TDS-TSO125HVSWDG TDS-TSO140HVSWDG TDS-TSO160HVSWDG
Indoor Unit TDS100HVWDG TDS125HVSWDG TDS140HVSWDG TDS160HVSWDG
Outdoor Unit TSO100HVWDG TSO125HVWDG TSO140HVWDG TSO160HVWDG
Power Supply 1 Phase, 220-240V, 50Hz
Cooling Capacity Rated/Min-Max kW 10.0 (3.0-11.7) 12.5 (3.6-14.0) 14.0 (4.2-16.0) 16.0 (4.8-18.0)
Heating Capacity Rated/Min-Max 12.0 (3.6-13.5) 14.0 (4.2-15.0) 16.0 (4.8-17.0) 18.0 (5.4-20.0)
AEER/ACOP 3.7 / 4.0 3.4 / 3.8 3.5 / 3.8 3.3 / 3.8
Cooling Star Rating (Hot/Avg/Cold) 4 / 3.5 / 4 3.5 / 3 / 3 3.5 / 3 / 3.5
Heating Star Rating (Hot/Avg/Cold) 3 / 2.5 / 2 3.5 / 2.5 / 2 3 / 2.5 / 2 3.5 / 2.5 / 2
Cooling Current Input Range A 2.3 - 20.0 3.2 - 25.0 3.7 - 28.0 4.1 - 32.0
Heating Current Input Range 2.7 - 20.0 3.7 - 25.0 4.1 - 28.0 4.6 - 32.0
Standby Power Consumption W 4.0 5.1 12.5 9.8
Indoor Airflow Volume P-Hi/H/M/L m3/h 2100 / 1900 / 1700 / 1400 2800 / 2500 / 2200 / 1800 3200 / 2800 / 2400 / 2000 3500 / 3100 / 2700 / 2300
Indoor Sound Pressure Level H/M/L dBA 42 / 41 / 40 42 / 40 / 39 45 / 43 / 41 50 / 48 / 46
Outdoor Sound Pressure Level (H) 58 59 60
Outdoor Fan Quantity 1 2
Operation Range Cool/Heat C -15 to 52 / -15 to 24
Refrigerant Type/Charge kg R32 / 2.2 R32 / 2.4 R32 / 2.8 R32 / 3.3
Connection Pipe Max Height m 30
Connection Pipe Max Length 75
Pipe Sizes (Liquid/Gas) mm 9.52 / 15.88
Indoor Unit Dimensions (HxWxD) 260 x 1340 x 655 360 x 1350 x 720
Outdoor Unit Dimensions (HxWxD) 820 x 940 x 370 1260 x 900 x 340
Indoor Net/Gross Weight kg 43 / 49 57 / 67 60 / 70
Outdoor Net/Gross Weight 67 / 79 90 / 99 97 / 106
SKU TDS-TSO125HVSWDG
Brand TECO
Shipping Weight 124.0000kg
Shipping Width 0.574m
Shipping Height 0.820m
Shipping Length 1.350m
Shipping Cubic 0.635116000m3
Unit Of Measure ea

TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
