*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

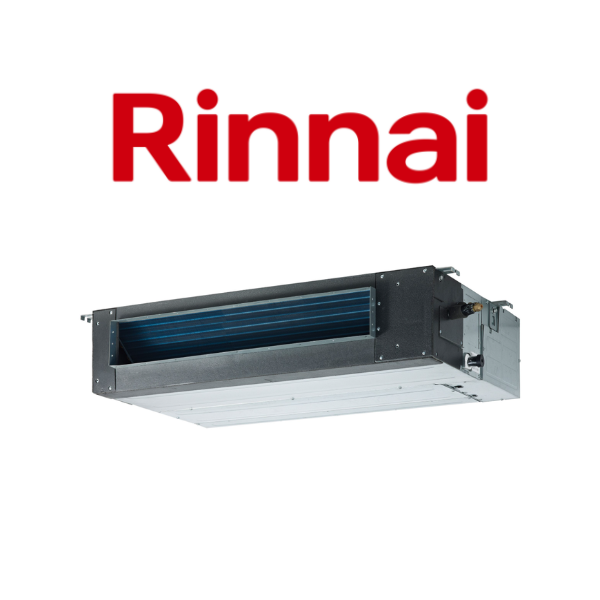

Rinnai DINSD50MBA 5.3kW Indoor Multi Air Conditioning Slim Ducted Unit

This Slim Ducted Multi Split system delivers efficient heating and cooling for up to six rooms with one outdoor unit, discreet design, quiet operation, and flexible, independent climate control.

Features:

Up to six rooms with one outdoor unit
Cooling output of 5.3kW and heating output up to 6.0kW
Sleek, discreet indoor unit designed to be concealed within a bulkhead or ceiling for a seamless look.
Quiet operation
Wi-Fi control enabled
Includes CNTRLDRCINW2 programmable wired controller

(DINSD50MBA)

Unit	DINSD26MBA	DINSD35MBA	DINSD50MBA
Net Dimensions (HxWxD) (mm)	200x700x450		245x700x750
Gross Dimensions (HxWxD) (mm)	285x860x540		298x925x850
Net Weight (kg)	16.6		24.4
Gross Weight (kg)	19.8		29
Air Duct Connection (HxW) Supply (mm)	152x537		178x527
Air Duct Connection (HxW) Return (mm)	186x599		212x592
Pipe Size (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7
Power Supply (V-Ph-Hz)	220-240 / 1 / 50
Rated Cooling Capacity (kW)	2.6	3.5	5.28
Rated Heating Capacity (kW)	2.9	3.8	6.0
Rated Input Power (W)	88	91	172
Rated Input Current (A)	0.66	0.67	1.12
Airflow Hi/Med/Lo (L/s)	172/150/125	183/158/131	250/217/181
Sound Pressure @1.4m H/M/L dBA	35/33/31/27	35/33/31/26	36.5/34/31/25
Maximum External Static Pressure (Hi) Pa	100		160
Condensate Drain Pump Connection (mm)	25
Controller	Wired Controller
Operating Range Cool/Heat ^oC	16-32 / 0-30
Wi-Fi Compatibility	Standard

SKU	DINSD50MBA
Brand	Rinnai
Shipping Weight	29.0000kg
Shipping Width	0.925m
Shipping Height	0.298m
Shipping Length	0.850m
Shipping Cubic	0.234302500m3
Unit Of Measure	ea
