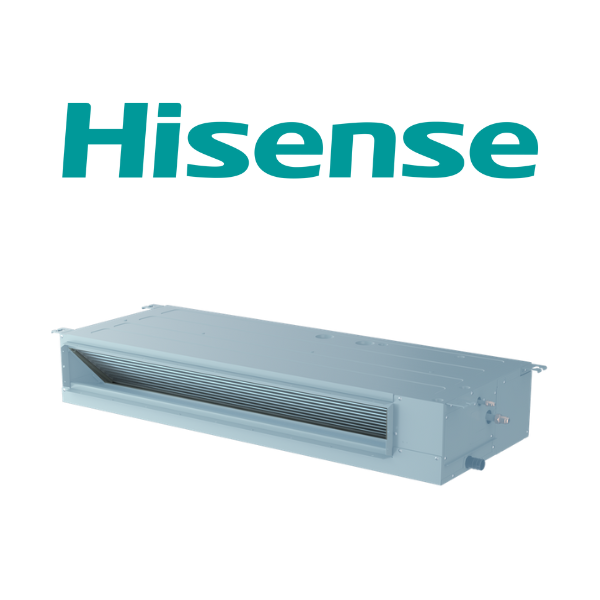

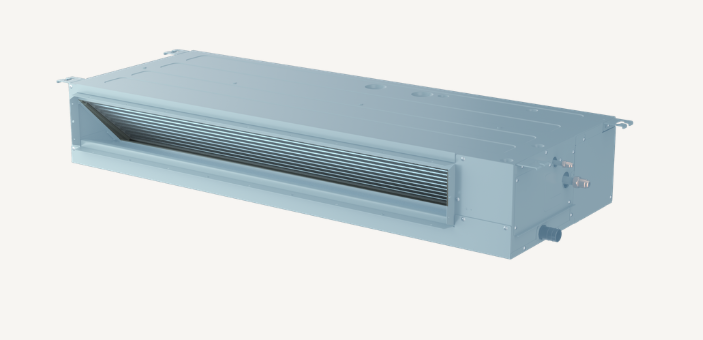

Hisense AMD-25UX4RAL4 2.5kW Indoor Only Multi Compact Bulkhead Air Conditioning Unit
Hisense Indoor Multi Compact Ducted Unit
$533.64 Excl GST
*This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.
Hisense AMD-25UX4RAL4 2.5kW Indoor Only Multi Compact Bulkhead Air Conditioning Unit
Key Features:
- Eco-friendly R32 Refrigerant – Ultra-low energy consumption, effective power saving, non-toxic and environmentally friendly.
- Smart Home Voice Control – When the air conditioner is connected to Wi-Fi, you can operate it using voice control through Google Home or Amazon Alexa. This allows you to use verbal commands to set modes, adjust temperatures and more.
- Wi-Fi Control – Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
- Narrow Depth Design and Slim Height – Designed for narrow ceiling space, the duct unit is only 447mm in depth and 190mm in height, which provides great flexiblity and freedom for installation.
- Inner High Lift Pump – The maximum lift pump components can be as high as 850mm. In order to ensure smooth drainage in long-term operation, the recommended drainage height is <800mm.
(AMD-25UX4RAL4)
Indoor Unit Name | AMD-25UX4RAL4 | AMD-35UX4RBL4 | AMD-50UX4RCL4 | AMD-71UX4RCL4 |
---|---|---|---|---|
Cooling Capacity (kW) | 2.5 | 3.6 | 5.3 | 7.2 |
Heating Capacity (kW) | 3.0 | 3.8 | 5.8 | 7.9 |
Power Supply (V/Hz/Ph) | 220-240 / 50-60 / 1 | |||
Power Input (W) | 40 | 25 | 32 | 40 |
Rated Current (A) | 0.6 | 0.1 | 0.5 | 0.6 |
Airflow (m3/h) | 140 / 122 / 108 | 166 / 134 / 111 | 250 / 214 / 180 | 278 / 194 / 136 |
External Static Pressure Pa | 0~30 | 0~50 | 0~40 | |
Sound Power dBA | 49 | 50 | 57 | 58 |
Sound Pressure H/M/L dBA | 35 / 33 / 31 | 36 / 33 / 30 | 41 / 37 / 33 | 39 / 35 / 32 |
Net Dimensions HxWxD (mm) | 190 x 700 x 447 | 190 x 910 x 447 | 190 x 1180 x 447 | |
Packing Dimensions HxWxD (mm) | 565 x 870 x 285 | 285 x 1080 x 565 | 285 x 1350 x 565 | |
Net Weight (kg) | 15 | 18 | 22.5 | |
Gross Weight (kg) | 18 | 21.5 | 26 | |
Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 9.52 / 15.88 | |
Drain Diameter (mm) | 32 |
SKU | AMD-25UX4RAL4 |
Brand | Hisense |
Shipping Weight | 18.0000kg |
Shipping Width | 0.285m |
Shipping Height | 0.565m |
Shipping Length | 0.870m |
Shipping Cubic | 0.140091750m3 |
Unit Of Measure | ea |
Hisense offers a 5-Year Warranty on their Ducted Units
