Rinnai DINSD26MBA 2.6kW Indoor Only Multi Slim Ducted Air Conditioning Unit

Rinnai DINSD26MBA 2.6kW Indoor Only Multi Slim Ducted Air Conditioning Unit

Rinnai Indoor Multi Slim Ducted Unit




$633.00 Incl GST
$575.45 Excl GST
In Stock

Calculate Shipping


Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

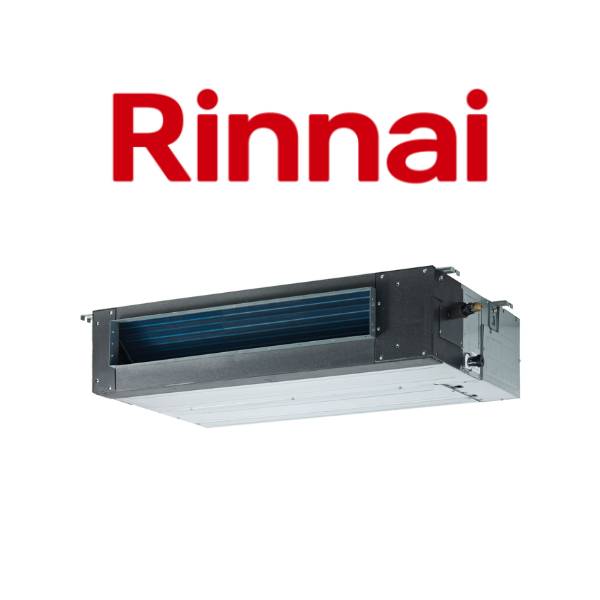

Rinnai DINSD26MBA 2.6kW Indoor Multi Air Conditioning Slim Ducted Unit

This Slim Ducted Multi Split system delivers efficient heating and cooling for up to six rooms with one outdoor unit, discreet design, quiet operation, and flexible, independent climate control.

Features:

  • Up to six rooms with one outdoor unit
  • Cooling output of 2.6kW and heating output up to 2.9kW
  • Sleek, discreet indoor unit designed to be concealed within a bulkhead or ceiling for a seamless look.
  • Quiet operation
  • Wi-Fi control enabled
  • Includes CNTRLDRCINW2 programmable wired controller

(DINSD26MBA)

Unit DINSD26MBA DINSD35MBA DINSD50MBA
Net Dimensions (HxWxD) (mm) 200x700x450 245x700x750
Gross Dimensions (HxWxD) (mm) 285x860x540 298x925x850
Net Weight (kg) 16.6 24.4
Gross Weight (kg) 19.8 29
Air Duct Connection (HxW) Supply (mm) 152x537 178x527
Air Duct Connection (HxW) Return (mm) 186x599 212x592
Pipe Size (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7
Power Supply (V-Ph-Hz) 220-240 / 1 / 50
Rated Cooling Capacity (kW) 2.6 3.5 5.28
Rated Heating Capacity (kW) 2.9 3.8 6.0
Rated Input Power (W) 88 91 172
Rated Input Current (A) 0.66 0.67 1.12
Airflow Hi/Med/Lo (L/s) 172/150/125 183/158/131 250/217/181
Sound Pressure @1.4m H/M/L dBA 35/33/31/27 35/33/31/26 36.5/34/31/25
Maximum External Static Pressure (Hi) Pa 100 160
Condensate Drain Pump Connection (mm) 25
Controller Wired Controller
Operating Range Cool/Heat oC 16-32 / 0-30
Wi-Fi Compatibility Standard
SKU DINSD26MBA
Brand Rinnai
Shipping Weight 19.8000kg
Shipping Width 0.860m
Shipping Height 0.285m
Shipping Length 0.540m
Shipping Cubic 0.132354000m3
Unit Of Measure ea
