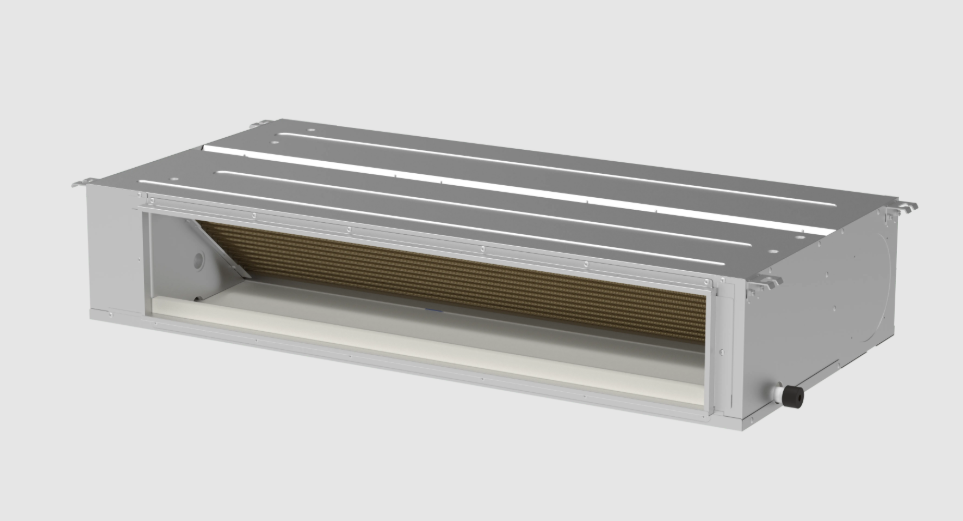

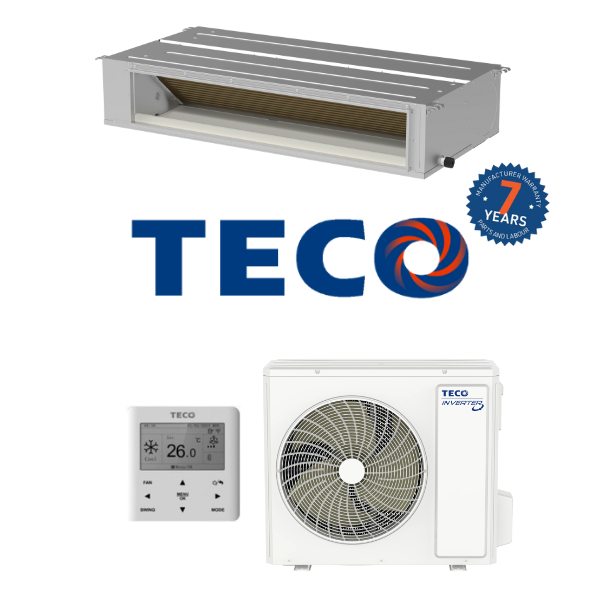

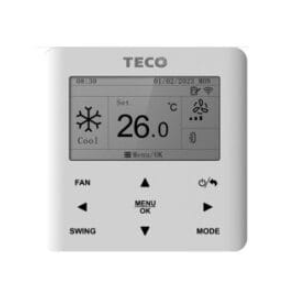

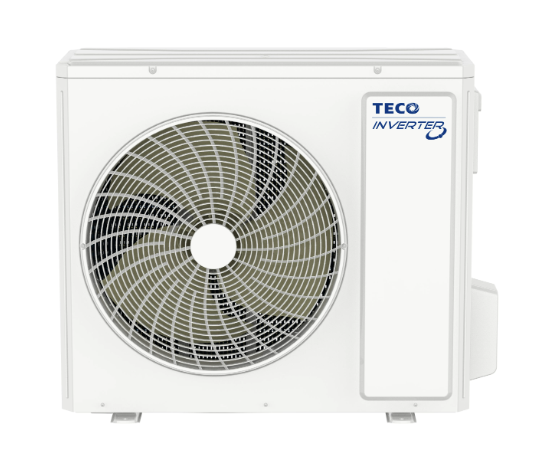

TECO TDS-TSO100HVWDG 10.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller

The TECO 10.0kW Ducted System offers powerful, energy-efficient climate control with a low profile indoor unit height of just 260mm, making it ideal for bulkheads and spaces with limited ceiling clearance. Designed for durability, it features a Blackfin-coated condenser coil in the outdoor unit and a Goldfin-coated evaporator coil in the indoor unit to enhance corrosion resistance and ensure long-term efficiency. With an integrated drain pump for flexible installation and built-in WiFi for remote control, convenience and user-friendly management are prioritised.

Features:

Compact Design with a 260mm height for the indoor unit
Dynamic Temperature Control
Plasmacluster Ion Sterilisation
In-Built WiFi
In-Built Drain Pump
Blackfin Coating on Outdoor Unit
Goldfin Coating on Indoor Unit
X-Fan Function to remove excessive Moisture accumulation on shut down
Fresh Air Intake Control
Wide Voltage Range Operation
BMS Control Capability
Insect-Proof Outdoor Unit Electric Box – Sealed to ≤3mm.
DRED Enabled

(TDS-TSO100HVWDG)

System		TDS-TSO100HVWDG	TDS-TSO125HVSWDG	TDS-TSO140HVSWDG	TDS-TSO160HVSWDG
Indoor Unit		TDS100HVWDG	TDS125HVSWDG	TDS140HVSWDG	TDS160HVSWDG
Outdoor Unit		TSO100HVWDG	TSO125HVWDG	TSO140HVWDG	TSO160HVWDG
Power Supply		1 Phase, 220-240V, 50Hz
Cooling Capacity Rated/Min-Max	kW	10.0 (3.0-11.7)	12.5 (3.6-14.0)	14.0 (4.2-16.0)	16.0 (4.8-18.0)
Heating Capacity Rated/Min-Max	kW	12.0 (3.6-13.5)	14.0 (4.2-15.0)	16.0 (4.8-17.0)	18.0 (5.4-20.0)
AEER/ACOP		3.7 / 4.0	3.4 / 3.8	3.5 / 3.8	3.3 / 3.8
Cooling Star Rating (Hot/Avg/Cold)		4 / 3.5 / 4		3.5 / 3 / 3	3.5 / 3 / 3.5
Heating Star Rating (Hot/Avg/Cold)		3 / 2.5 / 2	3.5 / 2.5 / 2	3 / 2.5 / 2	3.5 / 2.5 / 2
Cooling Current Input Range	A	2.3 - 20.0	3.2 - 25.0	3.7 - 28.0	4.1 - 32.0
Heating Current Input Range	A	2.7 - 20.0	3.7 - 25.0	4.1 - 28.0	4.6 - 32.0
Standby Power Consumption	W	4.0	5.1	12.5	9.8
Indoor Airflow Volume P-Hi/H/M/L	m3/h	2100 / 1900 / 1700 / 1400	2800 / 2500 / 2200 / 1800	3200 / 2800 / 2400 / 2000	3500 / 3100 / 2700 / 2300
Indoor Sound Pressure Level H/M/L	dBA	42 / 41 / 40	42 / 40 / 39	45 / 43 / 41	50 / 48 / 46
Outdoor Sound Pressure Level (H)	dBA	58	59		60
Outdoor Fan Quantity		1		2
Operation Range Cool/Heat	C	-15 to 52 / -15 to 24
Refrigerant Type/Charge	kg	R32 / 2.2	R32 / 2.4	R32 / 2.8	R32 / 3.3
Connection Pipe Max Height	m	30
Connection Pipe Max Length	m	75
Pipe Sizes (Liquid/Gas)	mm	9.52 / 15.88
Indoor Unit Dimensions (HxWxD)		260 x 1340 x 655	360 x 1350 x 720
Outdoor Unit Dimensions (HxWxD)		820 x 940 x 370		1260 x 900 x 340
Indoor Net/Gross Weight	kg	43 / 49	57 / 67	60 / 70
Outdoor Net/Gross Weight	kg	67 / 79		90 / 99	97 / 106

SKU	TDS-TSO100HVWDG
Brand	TECO
Shipping Weight	110.0000kg
Shipping Width	0.467m
Shipping Height	0.820m
Shipping Length	1.340m
Shipping Cubic	0.513398000m3
Unit Of Measure	ea

TECO offers a 7-Year Parts and Labour Warranty on any Split, Multi-Split or Ducted System installed in a Domestic/Residential Application.
