Rinnai DINLR24Z1SA-SET 24.0kW Ducted 3 Phase Air Conditioning System

Calculate Shipping

Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

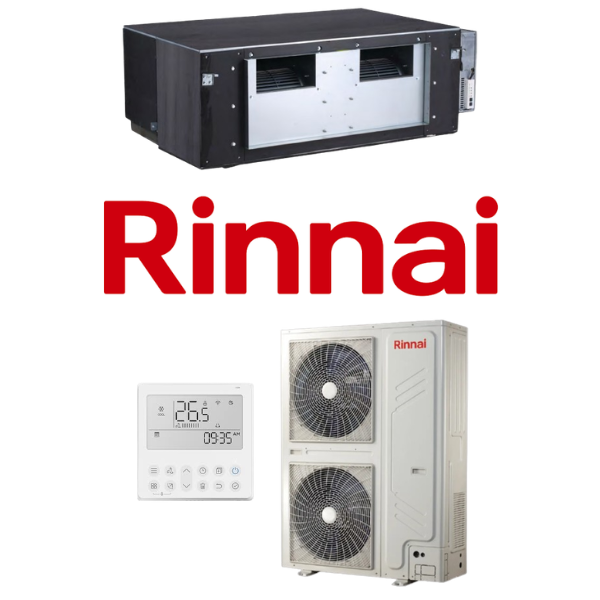

Rinnai DINLR24Z1SA-SET 24.0kW Ducted Three Phase System - Includes Wall Controller and Outdoor Unit DONSR24Z3TA

Powerful whole-home comfort. The 24kW ducted system delivers efficient, discreet heating and cooling with inverter technology, and quiet operation for reliable whole-home comfort year-round.

Key Features:

Flexible 8 Zone Climate Control - Enjoy personalised comfort with independent control of up to eight zones, allowing you to switch each zone on or off and adjust temperatures directly from the main controller.
Self-Cleaning Air Purity - Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
Flexible Installation Made Simple - The innovative splittable design allows the unit to be transported in separate sections and assembled on-site, making installation faster and easier in homes with limited roof space. (Available in 15.0kW, 18.0kW, 20.0kW, and 24.0kW models)
Long-Lasting Protection - Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
Eco-Friendly R32 Refrigerant
Wi-Fi Control and Remote Schedules
Humidity Control - Manage room humidity with Dry Mode for balanced comfort
Quiet Operation

(DINLR24Z1SA-SET)

System	DINLR15B1SA-T-SET	DINLR18B1SA-SET	DINLR20Z1SA-SET	DINLR24Z1SA-SET
Rated Cooling Capacity (kW)	14.0	17.0	20.0	24.0
Rated Heating Capacity (kW)	17.0	18.0	20.0	26.0
Power Supply (V / Ph / Hz)	220-240 / 1 / 50		380-415 / 3 / 50
AEER / ACOP	3.56 / 4.04	3.31 / 3.92	3.3 / 3.8	3.5 / 3.7

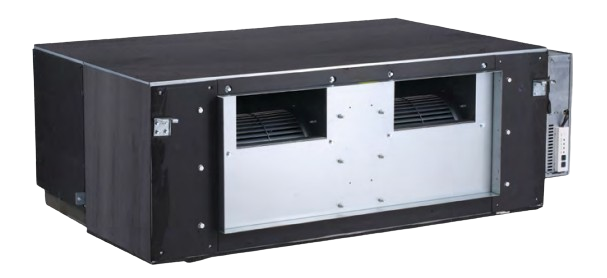

Indoor Unit	DINLR15B1SA	DINLR18B1SA	DINLR20Z1SA	DINLR24Z1SA
Rated Input Power Cool/Heat (W)	631	642	700	840
Rated Input Current Cool/Heat (A)	3.38	3.44	3.18	3.82
Max Airflow (L/s)	922	925	1333	1444
Maximum External Static Pressure (Pa)	200		280
Sound Pressure Level (dBA)	50 / 46.5 / 44 / 42 / 36	51 / 49 / 47 / 43 / 36	50 / 48 / 44 / 43 / 41 / 40	51 / 49 / 47 / 45 / 44 / 42 / 41
Net Dimensions (HxWxD) (mm)	380x1400x870		477x1300x910
Shipping Dimensions (HxWxD) (mm)	477x1650x1065		665x1580x1090
Net/Gross Weight (kg)	65.0 / 80.9	67.0 / 81.9	82 / 120
Supply Air Duct Connection HxW (mm)	295x1152		350x1120
Return Air Duct Connection HxW (mm)	400x2 (Oval)		393x1118
Controller Type	Wired Programmable Controller with Wi-Fi Control		Wired Programmable Controller CNTRLDRCI86TW (Wi-Fi)
Operating Range Cool/Heat (C)	16 to 32 / 0 to 30		15 - 32

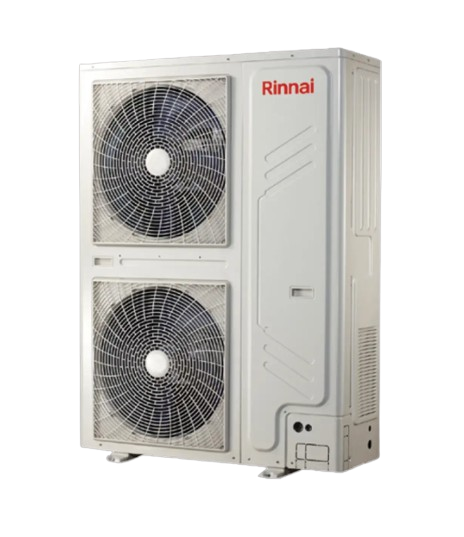

Outdoor Unit	DONSR15B1TA	DONSR18B1TA	DONSR20Z3TA	DONSR24Z3TA
Sound Pressure Level @1m (dBA)	65	63	58	59
Sound Power Level (dBA)	70	72	78
Net Dimensions (HxWxD) (mm)	1333x952x415		1558x1120x528
Shipping Dimensions (HxWxD) (mm)	1500x1095x495		1720x1305x565
Net/Gross Weight (kg)	93 / 109.6	94 / 110.1	144 / 160	145 / 161
Refrigerant Type/Charged Volume (kg)	R32 / 3.6	R32 / 3.8	R410A / 7.7
Pre-Charged Piping Length (m)	20
Liquid/Gas Piping Connections (mm)	9.5 / 15.9	9.5 / 19.0	12.7 / 19.0	12.7 / 22.2
Maximum Pipe Length (m)	75		50
Maximum Vertical Separation (m)	30		20
Operating Range Cool/Heat (C)	-15 to 50 / -20 to 24		-5 to 48 / -20 to 24
