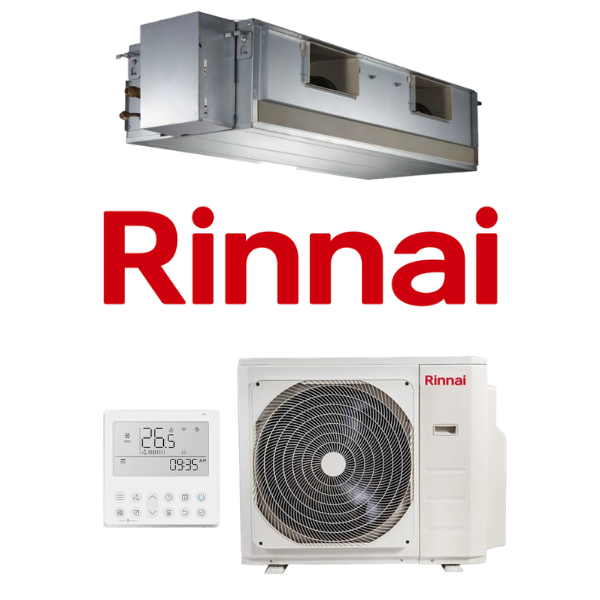

Rinnai DINLR11B1A-SET 10.5kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit DONSR11B1LA

Customised climate control for every room. This 11.0kW ducted system offers seamless heating and cooling across the entire home, pairing powerful inverter technology with flexible zoning, intuitive smart controls, and discreet, low-noise comfort.

Key Features:

Flexible 8 Zone Climate Control - Enjoy personalised comfort with independent control of up to eight zones, allowing you to switch each zone on or off and adjust temperatures directly from the main controller.
Self-Cleaning Air Purity - Deep cleaning technology with 56°C sterilisation helps remove bacteria and reduce dust build-up.
Long-Lasting Protection - Advanced Gold Guard technology helps safeguard the condenser coil from corrosion.
Eco-Friendly R32 Refrigerant
Wi-Fi Control and Remote Schedules
Humidity Control - Manage room humidity with Dry Mode for balanced comfort
Quiet Operation

(DINLR11B1A-SET)

System	DINLR07B1A-SET	DINLR09B1A-SET	DINLR11B1A-SET	DINLR13B1A-SET	DINLR15B1SA-SET
Rated Cooling Capacity (kW)	7.3	9.0	10.5	12.6	14.0
Rated Heating Capacity (kW)	7.5	10.5	12.5	14.5	16.8
Rated Input Power Cool/Heat (W)	2139 / 1842	2610 / 2400	3145 / 2980	3765 / 3550	4180 / 4300
Rated Input Current Cool/Heat (A)	9.3 / 8.2	11.9 / 10.6	14.1 / 13.5	16.6 / 15.4	18.4 / 18.9
Power Supply (V / Ph / Hz)	220-240 / 1 / 50
AEER / ACOP	3.39 / 4.04	3.40 / 4.30	3.30 / 4.14	3.32 / 4.05	3.32 / 3.87
TCSPF (Hot/Avg/Cold)	6.08 / 5.51 / 5.85	5.82 / 5.11 / 5.32	5.94 / 5.24 / 5.5	5.81 / 5.24 / 5.5	5.6 / 5.07 / 5.3
HSPF (Hot/Avg/Cold)	5.16 / 4.5 / 4.05	5.18 / 4.63 / 4.08	5.22 / 4.5 / 3.84	5.11 / 4.52 / 4.02	5.0 / 4.32 / 3.74

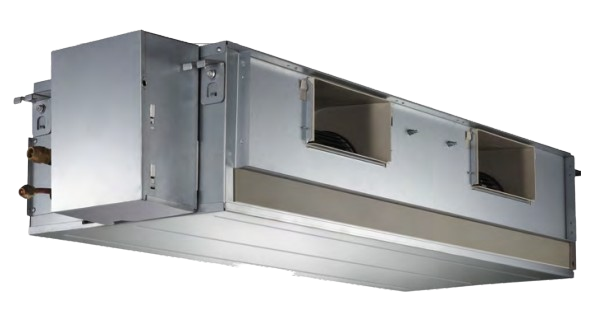

Indoor Unit	DINLR07B1A	DINLR09B1A	DINLR11B1A	DINLR13B1A	DINLR15B1SA
Airflow with Filter (Turbo) (L/s)	488	638	727	920	922
Maximum External Static Pressure (Pa)	160		200
Sound Pressure Level @1.5m (dBA)	41 / 38 / 36 / 33 / 28	46 / 40 / 38 / 36 / 28	45 / 39 / 37.5 / 36 / 30	52 / 46 / 44 / 42 / 34	50 / 46.5 / 44 / 42 / 36
Sound Power Level (dBA)	59.9	58.3	57.7	62.0	63.0
Net Dimensions (HxWxD) (mm)	245x1000x750	245x1200x750	300x1200x750		380x1400x870
Shipping Dimensions (HxWxD) (mm)	304x1225x860	304x1425x860	359x1425x860		477x1650x1065
Net/Gross Weight (kg)	31.5 / 37.7	40.5 / 47.3	42.9 / 49.8	45 / 51.9	65.0 / 80.9
Supply Air Duct Connection HxW (mm)	178x827	178x1027	233x1027		295x1152
Return Air Duct Connection HxW (mm)	212x892	212x1092	267x1092		400x2 (Oval)
Moisture Removal (L/h)	2.95	2.675	1.922	3.559	4.42
Controller Type	Wired Programmable Controller with Wi-Fi Control
Operating Range Cool/Heat (C)	16 to 32 / 0 to 30

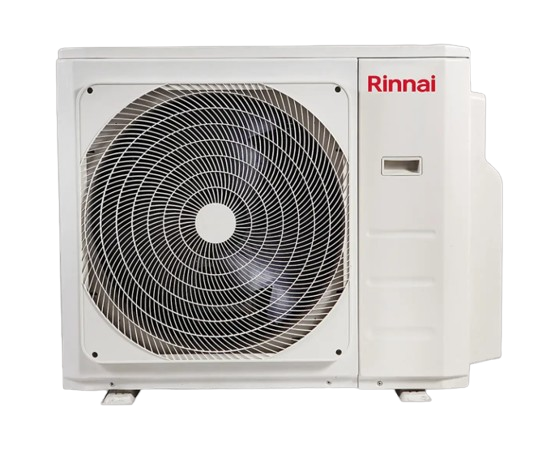

Outdoor Unit	DONSR07B1LA	DONSR09B1LA	DONSR11B1LA	DONSR13B1LA	DONSR15B1TA
Sound Pressure Level @1m (dBA)	61	62		64	63
Sound Power Level (dBA)	66.3	68.1		70.7	71.2
Net Dimensions (HxWxD) (mm)	673x890x342	810x946x410		975x980x415
Shipping Dimensions (HxWxD) (mm)	815x1030x438	965x1090x500		1120x1145x500
Net/Gross Weight (kg)	44.0 / 57.5	75.2 / 91.4		89.0 / 103.2
Refrigerant Type/Charged Volume (kg)	R32 / 1.5	R32 / 2.6		R32 / 3.5
Pre-Charged Piping Length (m)	20
Liquid/Gas Piping Connections (mm)	9.5 / 15.9
Maximum/Minimum Pipe Length (m)	50 / 3	75 / 3
Maximum Vertical Separation (m)	25	30
Operating Range Cool/Heat (C)	-15 to 50 / -20 to 24
