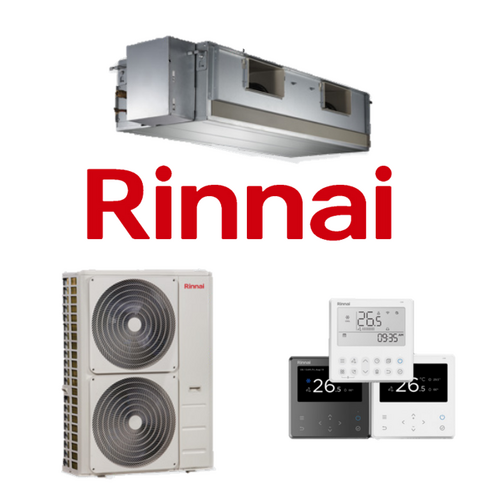

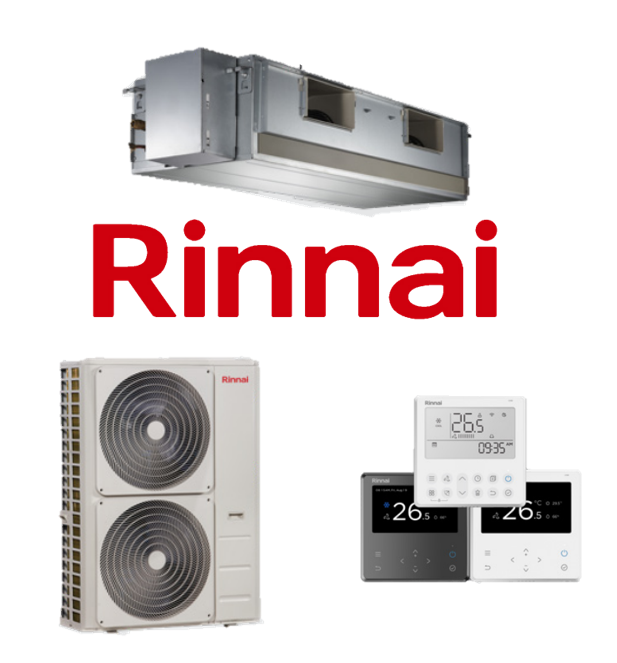

Rinnai DINLR11B1-SET 11.0kW Ducted 1 Phase Air Conditioning System

Rinnai-DINLR11B1-SET
Rinnai-DINLR11B1-SET
Rinnai-DINLR11B1-SET

Rinnai DINLR11B1-SET 11.0kW Ducted 1 Phase Air Conditioning System

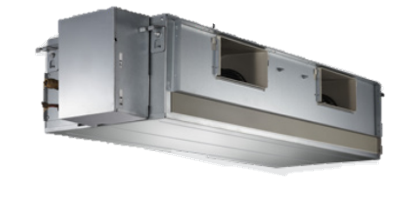

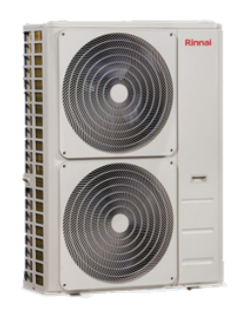

DINLR11B1 / DONSR11B1 Rinnai Ducted System




$3,505.00 Incl GST
$3,186.36 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System DINLR07B1-SET DINLR09B1-SET DINLR11B1-SET DINLR13B1-SET DINLR15B1-SET DINLR18B1-SET
Indoor Unit DINLR07B1 DINLR09B1 DINLR11B1 DINLR13B1 DINLR15B1 DINLR18B1
Outdoor Unit DONSR07B1 DONSR09B1 DONSR11B1 DONSR13B1 DONSR15B1 DONSR18B1
Rated Cooling Capacity (kW) 7.0 9.0 11.0 13.0 15.0 18.0
Rated Heating Capacity (kW) 7.5 10.0 11.5 13.0 14.5 18.0
Rated Input Power Cool/Heat (kW) 2.1 / 1.7 2.55 / 2.25 3.1 / 2.7 3.45 / 3.15 4.2 / 3.6 5.25 / 4.55
Rated Input Current Cool/Heat (A) 9.8 / 7.9 14.5 / 12.8 14.2 / 12.8 18.2 / 16.3 22.5 / 19.5
Recommended Circuit Breaker (A) 20 25 32
Power Supply 1 Phase, 220-240V, 50Hz
EER / COP 3.4 / 4.3 3.5 / 4.4 3.4 / 4.2 3.6 / 4.1 3.3 / 4.0 3.2 / 3.9
Indoor Airflow (High/Minimum) (L/s) 480 / 140 625 / 190 710 / 190 1050 / 250 1080 / 410
Maximum External Static Pressure (Pa) 160 200
Sound Pressure Level @1.4m (Hi/Med/Lo) (dBA) 38.5 / 35.5 / 32.5 45 / 42 / 39.5 39 / 37 / 34.5 46.5 / 43.5 / 40 53 / 49.5 / 45.3
Indoor Unit Net Dimensions (HxWxD) (mm) 249 x 1100 x 774 249 x 1360 x 774 380 x 1200 x 625 440 x 1400 x 858
Indoor Unit Shipping Dimensions (HxWxD) (mm) 315 x 1305 x 805 320 x 1570 x 805 450 x 1485 x 675 515 x 1605 x 910
Outdoor Unit Net Dimensions (HxWxD) (mm) 673 x 890 x 342 810 x 946 x 410 1333 x 952 x 415
Outdoor Unit Shipping Dimensions (HxWxD) (mm) 730 x 995 x 398 845 x 1090 x 500 1380 x 1095 x 495
Indoor Unit Net/Gross Weight (kg) 32 / 38.5 40 / 48 53 / 62 81 / 92
Outdoor Unit Net/Gross Weight (kg) 45 / 48 70 / 75 95 / 110 96 / 111
Refrigerant Type / Charged Volume (kg) R32 / 1.75 R32 / 2.6 R32 / 3.6 R32 / 4.0
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88 9.52 / 19.05
Supply Air Opening (mm) HxW 175 x 926 175 x 1186 253 x 1000 385 x 1188
Return Air Opening (mm) HxW 228 x 1001 228 x 1261 334 x 1145 385 x 1188
Indoor Operating Range Cool/Heat (C) 17 to 32 / 0 to 30
Outdoor Operating Range Cool/Heat (C) -15 to 50 / -20 to 24
Outdoor Sound Pressure Level @1m (dBA) 60 62 60 60.5
Outdoor Sound Power Level (dBA) 65 68 69.5 72
Maximum/Minimum Pipe Length (m) 50 / 3 75 / 3
Maximum Vertical Separation (m) 25 30

(DINLR11B1-SET)

System DINLR07B1-SET DINLR09B1-SET DINLR11B1-SET DINLR13B1-SET DINLR15B1-SET DINLR18B1-SET
Indoor Unit DINLR07B1 DINLR09B1 DINLR11B1 DINLR13B1 DINLR15B1 DINLR18B1
Outdoor Unit DONSR07B1 DONSR09B1 DONSR11B1 DONSR13B1 DONSR15B1 DONSR18B1
Rated Cooling Capacity (kW) 7.0 9.0 11.0 13.0 15.0 18.0
Rated Heating Capacity (kW) 7.5 10.0 11.5 13.0 14.5 18.0
Rated Input Power Cool/Heat (kW) 2.1 / 1.7 2.55 / 2.25 3.1 / 2.7 3.45 / 3.15 4.2 / 3.6 5.25 / 4.55
Rated Input Current Cool/Heat (A) 9.8 / 7.9 14.5 / 12.8 14.2 / 12.8 18.2 / 16.3 22.5 / 19.5
Recommended Circuit Breaker (A) 20 25 32
Power Supply 1 Phase, 220-240V, 50Hz
EER / COP 3.4 / 4.3 3.5 / 4.4 3.4 / 4.2 3.6 / 4.1 3.3 / 4.0 3.2 / 3.9
Indoor Airflow (High/Minimum) (L/s) 480 / 140 625 / 190 710 / 190 1050 / 250 1080 / 410
Maximum External Static Pressure (Pa) 160 200
Sound Pressure Level @1.4m (Hi/Med/Lo) (dBA) 38.5 / 35.5 / 32.5 45 / 42 / 39.5 39 / 37 / 34.5 46.5 / 43.5 / 40 53 / 49.5 / 45.3
Indoor Unit Net Dimensions (HxWxD) (mm) 249 x 1100 x 774 249 x 1360 x 774 380 x 1200 x 625 440 x 1400 x 858
Indoor Unit Shipping Dimensions (HxWxD) (mm) 315 x 1305 x 805 320 x 1570 x 805 450 x 1485 x 675 515 x 1605 x 910
Outdoor Unit Net Dimensions (HxWxD) (mm) 673 x 890 x 342 810 x 946 x 410 1333 x 952 x 415
Outdoor Unit Shipping Dimensions (HxWxD) (mm) 730 x 995 x 398 845 x 1090 x 500 1380 x 1095 x 495
Indoor Unit Net/Gross Weight (kg) 32 / 38.5 40 / 48 53 / 62 81 / 92
Outdoor Unit Net/Gross Weight (kg) 45 / 48 70 / 75 95 / 110 96 / 111
Refrigerant Type / Charged Volume (kg) R32 / 1.75 R32 / 2.6 R32 / 3.6 R32 / 4.0
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88 9.52 / 19.05
Supply Air Opening (mm) HxW 175 x 926 175 x 1186 253 x 1000 385 x 1188
Return Air Opening (mm) HxW 228 x 1001 228 x 1261 334 x 1145 385 x 1188
Indoor Operating Range Cool/Heat (C) 17 to 32 / 0 to 30
Outdoor Operating Range Cool/Heat (C) -15 to 50 / -20 to 24
Outdoor Sound Pressure Level @1m (dBA) 60 62 60 60.5
Outdoor Sound Power Level (dBA) 65 68 69.5 72
Maximum/Minimum Pipe Length (m) 50 / 3 75 / 3
Maximum Vertical Separation (m) 25 30
SKU DINLR11B1-SET
Brand Rinnai
Shipping Weight 137.0000kg
Shipping Width 0.616m
Shipping Height 0.810m
Shipping Length 1.200m
Shipping Cubic 0.911594000m3
Unit Of Measure ea

Warranty

Rinnai offers a 5-year warranty for all of their Air Conditioners.
