Mitsubishi Electric Under Ceiling PCAZM71V2HAKIT 7.1kW Stainless Steel 1 Phase Power Inverter Cassette Air Conditioning System

Mitsubishi Electric-PCAZM71V2HAKIT
Mitsubishi Electric-PCAZM71V2HAKIT
Mitsubishi Electric-PCAZM71V2HAKIT
Mitsubishi Electric-PCAZM71V2HAKIT

Mitsubishi Electric Under Ceiling PCAZM71V2HAKIT 7.1kW Stainless Steel 1 Phase Power Inverter Cassette Air Conditioning System

PCA-M71HA2/PUZ-ZM71VHA2-A Mitsubishi Electric Cassette




$6,001.00 Incl GST
$5,455.45 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

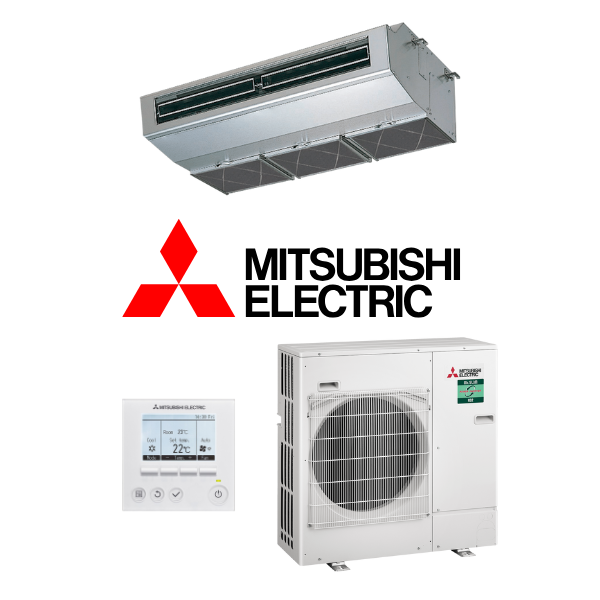

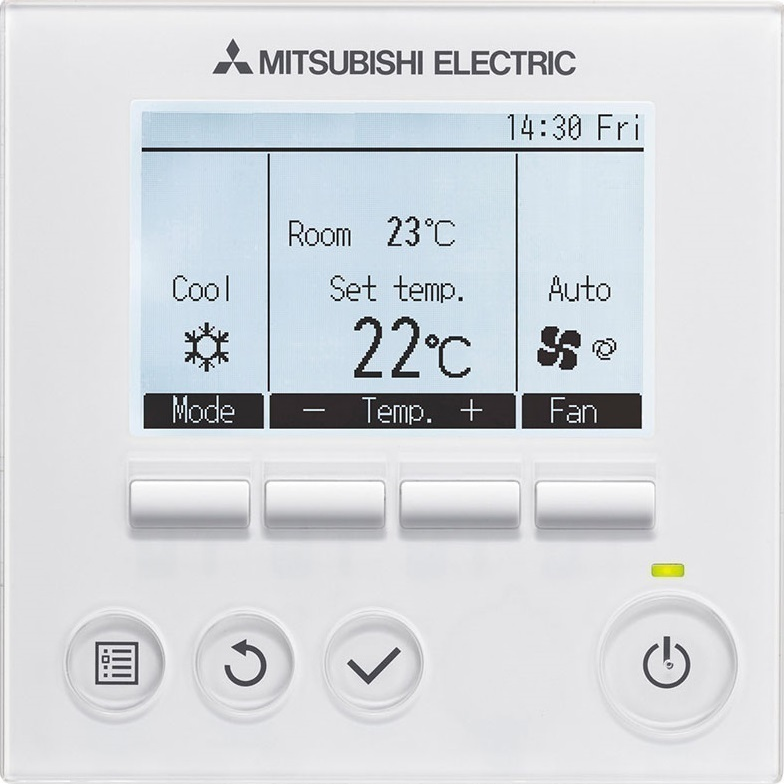

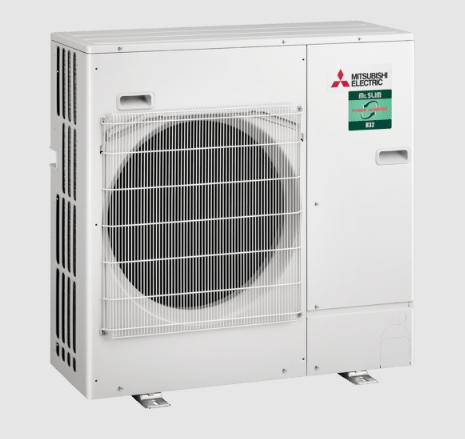

Mitsubishi Electric PCAZM71V2HAKIT 7.1kW Single Phase Stainless Steel Under Ceiling Cassette Air Conditioner (Power Inverter) - Includes High Performance Outdoor Unit and PAR-41MAAM Wired Wall Controller

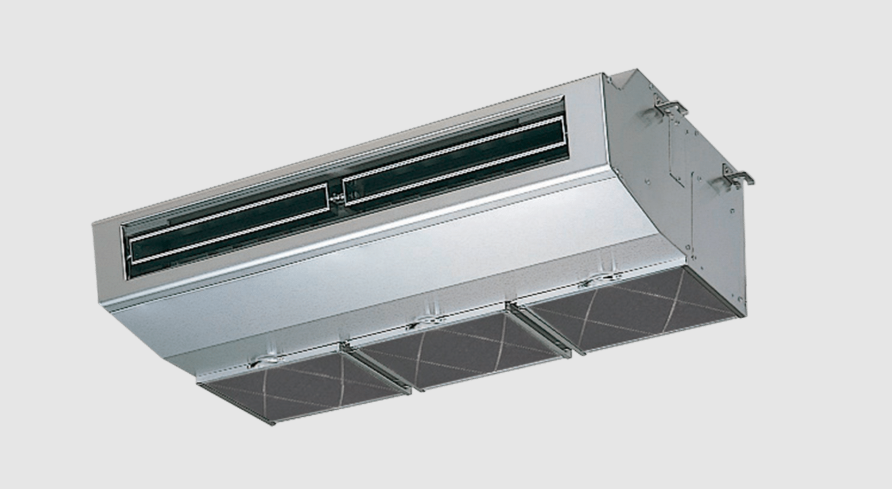

The PCA-M71HA2 stainless steel ceiling suspended system is built to handle the challenges of tough commercial kitchens. Providing a comfortable air conditioning environment in commercial kitchens, features of the PCA-M71HA2 include a durable stainless steel casing that is resistant to oil and smoke and high performance oil mist filter to reduce smoke, grease and fumes from entering the air conditioner.

Key Features:

  • Under Ceiling Mounting
  • Durable Stainless Steel Casing

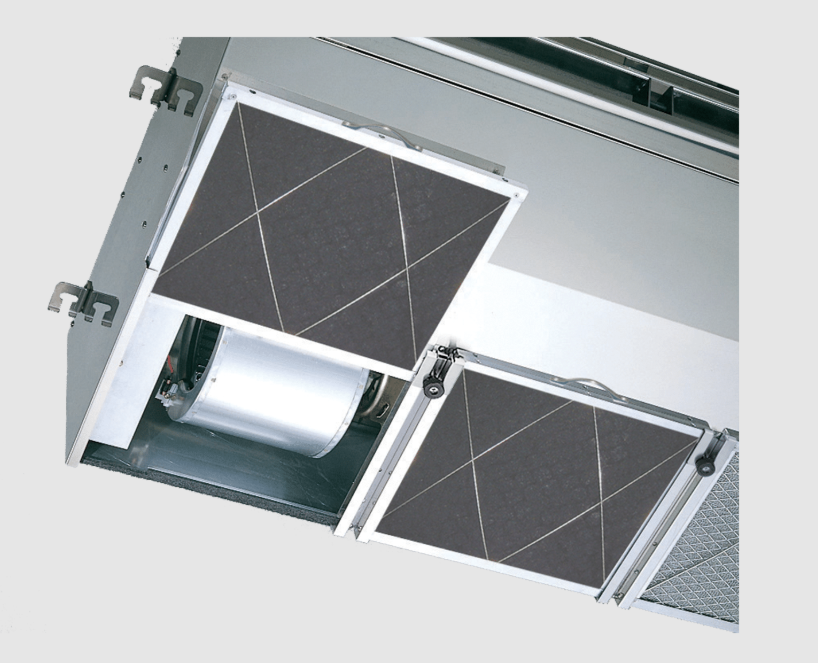

  • Replaceable High Performance Oil Mist Filter (PAC-SG38KF-E)
  • Simplified Installation
  • Easy Maintenance
  • R32 Refrigerant

(PCAZM71V2HAKIT)

System PCAZM71V2HAKIT PCAZM71V2MAKIT PCAZM100V2MAKIT PCAZM125V2MAKIT PCAZM140V2MAKIT
Indoor Unit PCA-M71HA2 PCA-M71KA3 PCA-M100KA3 PCA-M125KA3 PCA-M140KA3
Outdoor Unit PUZ-ZM71VHA2-A PUZ-ZM71VHA2-A PUZ-ZM100VKA2-A.TH PUZ-ZM125VKA2-A.TH PUZ-ZM140VKA2-A.TH
Cooling Capacity Rated/Min-Max kW 7.1 (3.3-8.1) 7.1 (3.3-8.1) 10.0 (4.9-11.4) 12.5 (5.5-14.0) 13.5 (6.2-15.3)
Heating Capacity Rated/Min-Max 7.6 (3.5-10.2) 8.0 (3.5-10.2) 11.2 (4.5-14.0) 14.0 (5.0-16.0) 16.0 (5.7-18.0)
Power Supply 1 Phase, 230V, 50Hz
EER/COP 3.51 / 3.50 3.90 / 3.72 3.92 / 3.41 3.31 / 3.31 3.25 / 3.38
Total Input Rated Cool/Heat kW 2.02 / 2.17 1.82 / 2.15 2.55 / 3.28 3.77 / 4.22 4.15 / 4.72
Rated Running Current Cool/Heat A 8.9 / 8.72 8.3 / 10.06 11.6 / 14.3 17.12 / 19.46 18.07 / 21.4
Sound Pressure Level In L/M2/M1/H Cool dBA 35 - 37 - 39 - 41 37 - 39 - 41 - 43 39 - 41 - 43 - 45 41 - 43 - 45 - 48
Sound Pressure Level Out (PWL) Cool 47(67) 49(69) 50(70)
Sound Pressure Level In L/M2/M1/H Heat 35 - 37 - 39 - 41 37 - 39 - 41 - 43 39 - 41 - 43 - 45 41 - 43 - 45 - 48
Sound Pressure Level Out (PWL) Heat 51(70) 47(67) 49(69) 50(70)
Air Volume (In) Lo/Mid2/Mid1/Hi Cool L/s 267 - 283 - 300 - 333 367 - 400 - 433 - 467 383 - 417 - 450 - 483 400 - 433 - 483 - 533
Air Volume (In) Lo/Mid2/Mid1/Hi Heat 267 - 283 - 300 - 333 367 - 400 - 433 - 467 383 - 417 - 450 - 483 400 - 433 - 483 - 533
Max Running Current A 19.43 19.42 28.15 28.26 29.40
Indoor Unit Dimensions HxWxD mm 280 x 1136 x 650 230 x 1280 x 680 230 x 1600 x 680
Outdoor Unit Dimensions HxWxD 943 x 950 x 330(+25) 1338 x 1050 x 330(+40)
Indoor Unit Weight kg 42 32 37 38 40
Outdoor Unit Weight 70 113
Pipe Sizes (Liquid/Gas) mm 9.52 / 15.88
Max. Piping Length/Height m 50 / 30 75 / 30
Outdoor Operating Range Cool/Heat C -15 to 52 / -20 to 21
Pre-Charge R32 Refrigerant kg 2.18(30m) 4.0(30m)
Additional Refrigerant g/m 40
SKU PCAZM71V2HAKIT
Brand Mitsubishi Electric
Shipping Weight 112.0000kg
Shipping Width 0.193m
Shipping Height 0.943m
Shipping Length 1.136m
Shipping Cubic 0.206750864m3
Unit Of Measure ea
