Mitsubishi Electric Under Ceiling PCAS71V2MAKIT 7.1kW 1 Phase Cassette Air Conditioning System

Mitsubishi Electric-PCAS71V2MAKIT
Mitsubishi Electric-PCAS71V2MAKIT
Mitsubishi Electric-PCAS71V2MAKIT

Mitsubishi Electric Under Ceiling PCAS71V2MAKIT 7.1kW 1 Phase Cassette Air Conditioning System

PCA-M71KA3/SUZ-M71VAD2-A.TH Mitsubishi Electric Cassette




$3,254.00 Incl GST
$2,958.18 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

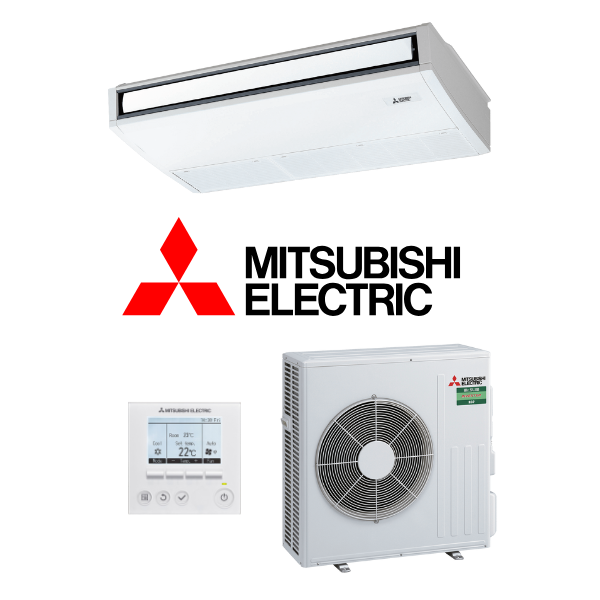

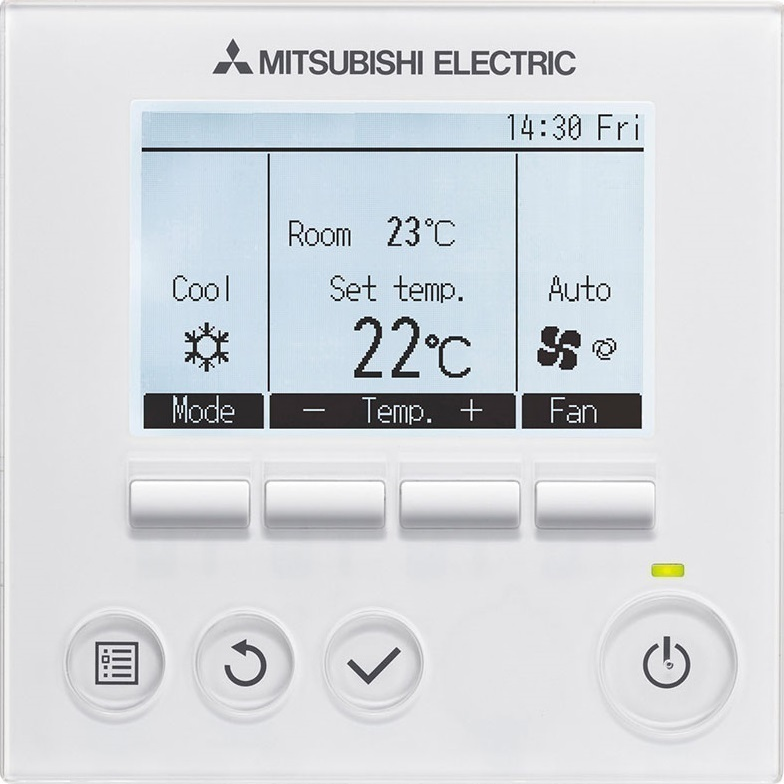

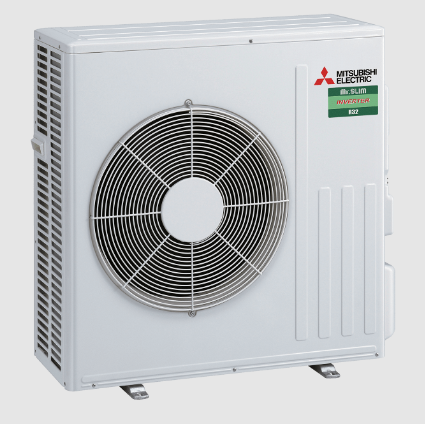

Mitsubishi Electric PCAS71V2MAKIT 7.1kW Single Phase Under Ceiling Cassette Air Conditioner - Includes Outdoor Unit and PAR-41MAAM Wired Wall Controller

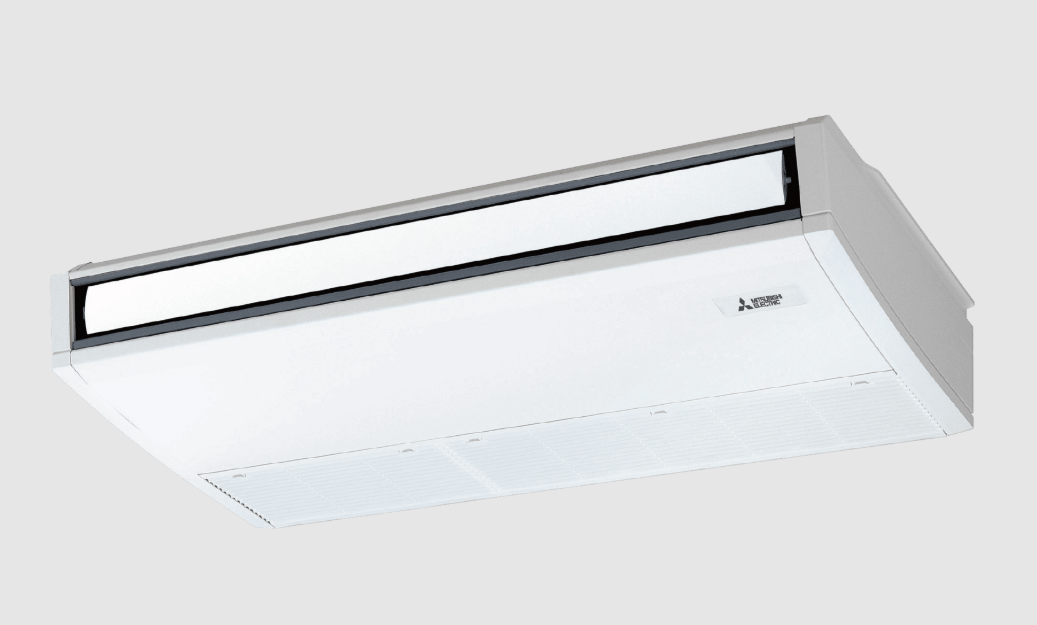

The Mitsubishi Electric PCA-M-KA Series are ceiling suspended air conditioners with capacities ranging from 5 to 13.5 kW. These AC's are engineered for superior climate control in commercial spaces such as schools, shops, and restaurants. Featuring under ceiling mounting, automatic air-speed adjustment, and high/low ceiling modes, it offers adaptable and efficient temperature management across various commercial environments.

Key Features:

  • Under Ceiling Mounting
  • Automatic Air-Speed Adjustment
  • High/Low Ceiling Mode
  • Fresh Outside-Air Intake
  • Optional 7 Day Wired Controller
  • R32 Refrigerant

(PCAS71V2MAKIT)

System PCAS50V2MAKIT PCAS60V2MAKIT PCAS71V2MAKIT PCAM100V2MAKIT PCAM125V2MAKIT
Indoor Unit PCA-M50KA3 PCA-M60KA3 PCA-M71KA3 PCA-M100KA3 PCA-M125KA3
Outdoor Unit SUZ-M50VAD2-A.TH SUZ-M60VAD2-A.TH SUZ-M71VAD2-A.TH PUZ-M100VKA2-A.TH PUZ-M125VKA2-A.TH
Cooling Capacity Rated/Min-Max kW 5.0 (2.3-6.0) 6.0 (2.3-6.5) 7.1 (3.3-8.1) 10.0 (4.0-10.6) 11.5 (5.7-13.0)
Heating Capacity Rated/Min-Max 6.0 (1.7-7.0) 7.0 (2.8-8.0) 8.0 (3.5-10.2) 11.2 (2.8-12.5) 14.0 (4.1-15.0)
Power Supply 1 Phase, 230V, 50Hz
EER/COP 3.90 / 3.63 3.75 / 4.06 3.58 / 3.57 3.36 / 3.31 3.19 / 3.21
Total Input Rated Cool/Heat kW 1.28 / 1.65 1.60 / 1.72 1.98 / 2.24 2.97 / 3.38 3.60 / 4.35
Rated Running Current Cool/Heat A 5.8 / 7.3 7.0 / 7.5 8.7 / 9.8 13.4 / 15.3 16.3 / 19.5
Sound Pressure Level In (L/M2/M1/H) Cool dBA 32 - 34 - 37 - 40 33 - 35 - 37 - 40 35 - 37 - 39 - 41 37 - 39 - 41 - 43 39 - 41 - 43 - 45
Sound Pressure Level Out (PWL) Cool 48(64) 49(65) 49(66) 52(71) 54(72)
Sound Pressure Level In (L/M2/M1/H) Heat 32 - 34 - 37 - 40 33 - 35 - 37 - 40 35 - 37 - 39 - 41 37 - 39 - 41 - 43 39 - 41 - 43 - 45
Sound Pressure Level Out (PWL) Heat 49(66) 51(68) 54(72) 56(74)
Air Volume (In) Lo/Mid2/Mid1/Hi Cool L/s 167-183-217-250 250-267-283-317 267-283-300-333 367-400-433-467 383-417-450-483
Air Volume (In) Lo/Mid2/Mid1/Hi Heat 167-183-217-250 250-267-283-317 267-283-300-333 367-400-433-467 383-417-450-483
Max Running Current A 13.9 15.5 20.7 27.3
Indoor Unit Dimensions HxWxD mm 230 x 960 x 680 230 x 1280 x 680 230 x 1600 x 680
Outdoor Unit Dimensions HxWxD 714 x 800 x 285 880 x 840 x 330 981 x 1050 x 330(+40)
Indoor Unit Weight kg 26 32 37 38
Outdoor Unit Weight 41 54 55 113 113
Pipe Sizes (Liquid/Gas) mm 6.35 / 12.7 6.35 / 15.88 9.52 / 15.88
Max. Piping Length/Height m 30 / 30 55 / 30
Outdoor Operating Range Cool/Heat C -15 to 52 / -10 to 24 -15 to 46 / -15 to 21
Pre-Charge R32 Refrigerant kg 1.20(7m) 1.25(7m) 1.45(7m) 3.10(30m) 3.60(30m)
Additional Refrigerant g/m 20 40
SKU PCAS71V2MAKIT
Brand Mitsubishi Electric
Shipping Weight 87.0000kg
Shipping Cubic 0.444128000m3
Unit Of Measure ea
