Mitsubishi Electric PEADZM100V2MAKIT10.0kW 1 Phase Low-Profile Power Inverter Air Conditioning System
PEAD-M100JAADR1.TH/PUZ-ZM100VKA2-A.TH Mitsubishi Ducted
$4,449.09 Excl GST

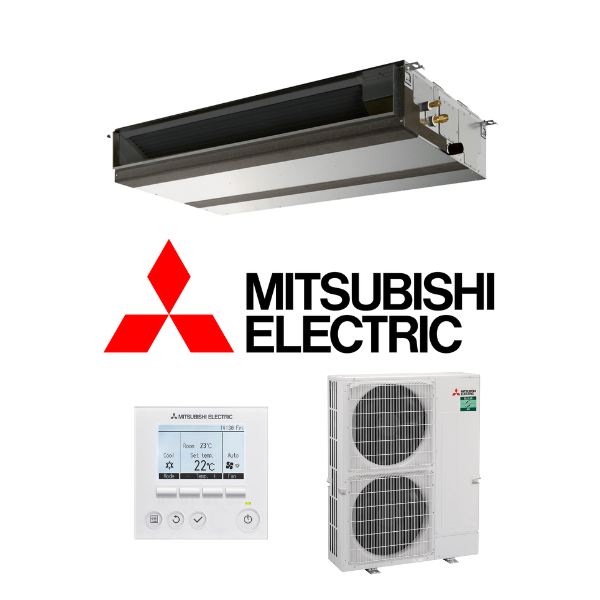

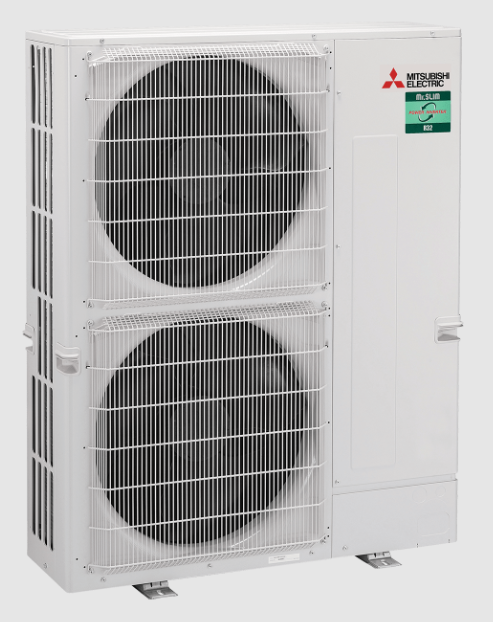

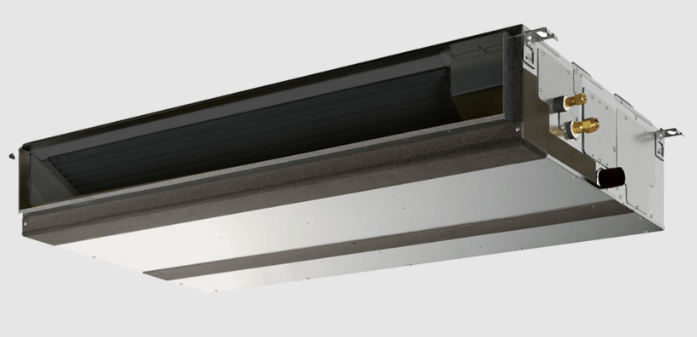

Mitsubishi Electric PEAD-M100JAADR1.TH 10.0kW Single Phase Low Profile Ducted System (Power Inverter) - Includes Outdoor Unit PUZ-ZM100VKA2-A and Wall Controller
Experience the versatility and precision of the low-profile ducted Mitsubishi Electric PEAD series air conditioners, designed to meet your heating and cooling needs with exceptional efficiency.
Key Features:
- Low profile design: The height of the PEAD Series (5.0kW-14.0kW) has been unified to 250mm making installation possible in low ceilings with minimal clearance space.
- Wide Selection of Fan Speeds: 3 fan speeds allowing a wide range of installation possibilities.
- Long Life Filter
- Optional Wi-Fi Control: 1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
- Drainage Pump Installed as Standard
- Wide External Static Pressure Range

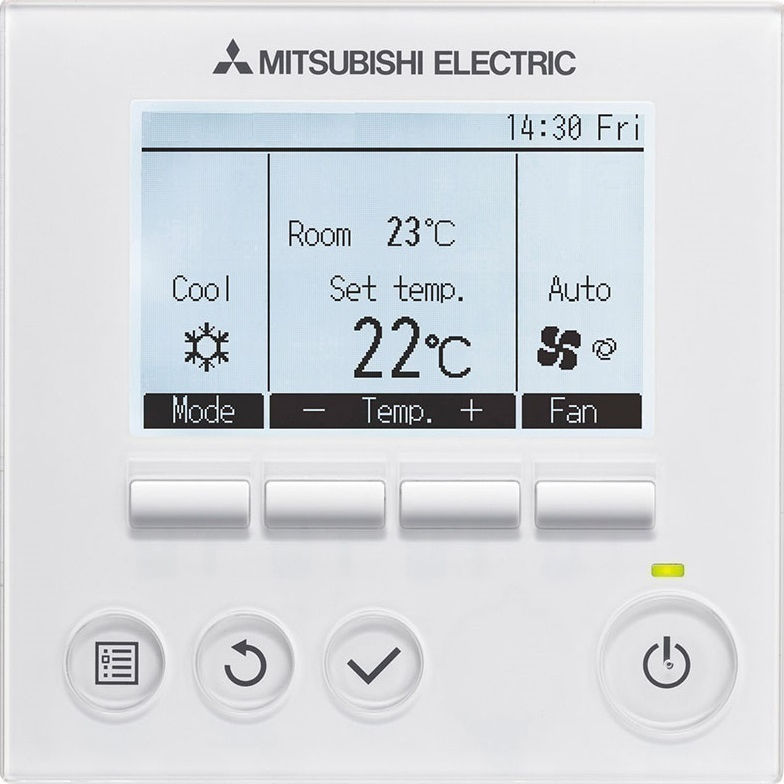

- Wired Controller
- Flexible Duct Design
- R32 Refrigerant
(PEADZM100V2MAKIT)
| System Name | PEADZM71V2MAKIT | PEADZM100V2MAKIT | PEADZM100Y3MAKIT | PEADZM125V2MAKIT | PEADZM125Y2MAKIT | PEADZM140V2MAKIT | PEADZM140Y2MAKIT |
|---|---|---|---|---|---|---|---|
| Indoor Unit | PEAD-M71JAADR1.TH | PEAD-M100JAADR1.TH | PEAD-M100JAADR1.TH | PEAD-M125JAADR1.TH | PEAD-M125JAADR1.TH | PEAD-M140JAADR1.TH | PEAD-M140JAADR1.TH |
| Outdoor Unit | PUZ-ZM71VHA2-A.TH | PUZ-ZM100VKA2-A.TH | PUZ-ZM100YKA3-A.TH | PUZ-ZM125VKA2-A.TH | PUZ-ZM125YKA2-A.TH | PUZ-ZM140VKA2-A.TH | PUZ-ZM140YKA2-A.TH |
| Cooling (kW) | 7.1 | 10.0 | 10.0 | 12.5 | 12.5 | 14.0 | 14.0 |
| Heating (kW) | 8.0 | 11.2 | 11.2 | 14.0 | 14.0 | 16.0 | 16.0 |
| Indoor Dimensions (HxWxD) (mm) | 250 x 1100 x 732 | 250 x 1400 x 732 | 250 x 1600 x 732 | ||||
| Outdoor Dimensions (HxWxD) (mm) | 943 x 950 x 330(+25) | 1338 x 1050 x 330(+40) | |||||
| Indoor Weight (kg) | 30 | 39 | 40 | 44 | |||
| Outdoor Weight (kg) | 70 | 113 | 114 | 113 | 114 | 113 | 114 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||||||
| SKU | PEADZM100V2MAKIT |
| Brand | Mitsubishi Electric |
| Shipping Weight | 152.0000kg |
| Shipping Width | 0.137m |
| Shipping Height | 1.338m |
| Shipping Length | 1.400m |
| Shipping Cubic | 0.256628400m3 |
| Unit Of Measure | ea |
