Mitsubishi Electric PCA-M140KAKIT 14.0kW R32 Three Phase Under Ceiling Split System

PKA-M140KAL/PUZ-ZM140YKA Under Ceiling Air Conditioner




$6,556.00 Incl GST
$5,960.00 Excl GST
In Stock

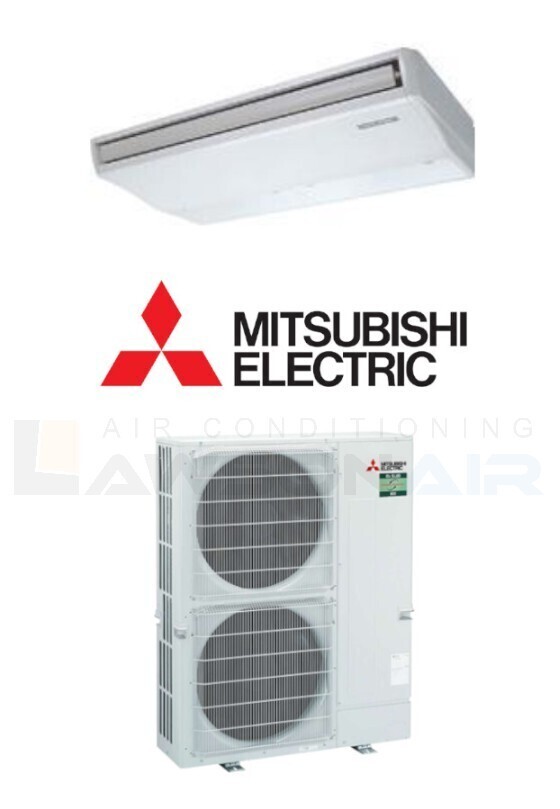

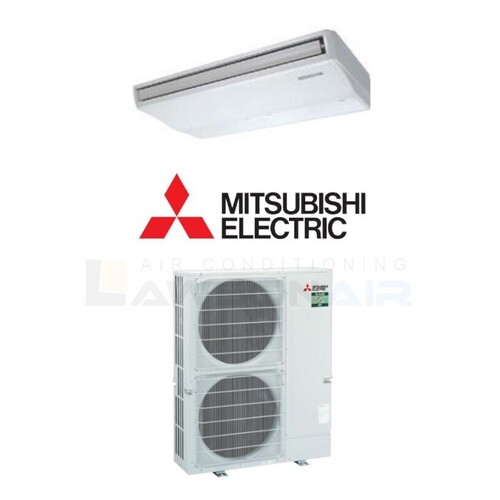

Mitsubishi Electric PCA-M140KAKIT R32 Three Phase Under Ceiling Split System - Includes Outdoor Unit PUZ-ZM140YKA



Mitsubishi Electric's 4-way airflow power suspended unit is the perfect choice for today's diversified residential and commercial applications. The three most important characteristics of an air conditioner - flexible layout planning, efficient yet powerful performance, and installation/maintenance ease - have been refined to make this series ideal for use in retail outlets, restaurants, business offices, etc.



Features:

  • High Ceiling Compatible
  • Reducing Energy Consumption
  • Stylish Design

(PCA-M140KAKIT-3P)

 Unit PKA-M140KAL-3P
 Indoor Unit PKA-M140KAL

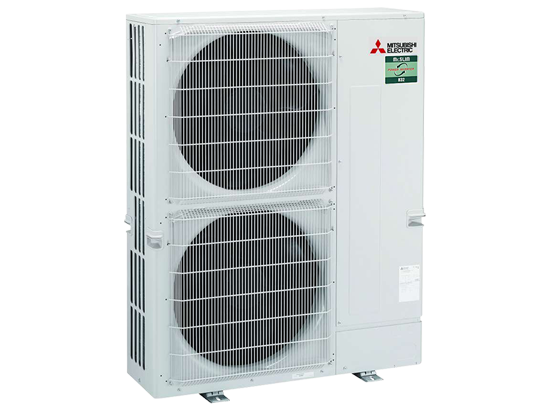

 Outdoor Unit PUZ-ZM140YKA
Cooling Capacity Rated kW 13.5
Min - Max kW 6.2 - 15.3
Total Input kW 4.15
Running current A 7.04
AEER/EER Rated Conditions   3.14/3.25
Air Flow Low - Mid - Hi L/s 400 - 433 - 483 - 533
Sound Pressure Levels Indoor (Lo-Mid-Hi) dBA 41 - 43 - 45 - 48
Outdoor dBA 50
Heating Capacity Rated kW 16.0
Min - Max kW 5.7 - 18.0
Total Input kW 4.72
Running Current A 7.85
ACOP/COP Rated Conditions   3.28 / 3.38
Air Flow Low - Mid - Hi L/s 400 - 433 - 483 - 533
Sound Pressure Levels Indoor (Lo-Mid-Hi) dBA 41 - 43 - 45 - 48
Outdoor dBA 52
Dimensions Indoor HxWxD mm 230 x 1600 x 680
Outdoor HxWxD mm 1338 x 1050 x 330
Weight Indoor kg 40
Outdoor kg 114
Electrical Supply V / Ph / Hz 400 / 3 / 50
Breaker Size A 16
Piping Maximum Length m 75
Maximum Height m 30
Guaranteed Operating Range Cooling °C -5(-15) to 52
Heating °C -20 to 21
SKU PCA-M140KAKIT-3P
Brand Mitsubishi Electric
Shipping Weight 154.0000kg

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
