Mitsubishi Electric PCA-M50KAKIT 5.0kW Under Ceiling R410A Split System Air Conditioner Brisbane Syd

Mitsubishi Electric PCA-M50KAKIT 5.0kW R410A Under Ceiling Split System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

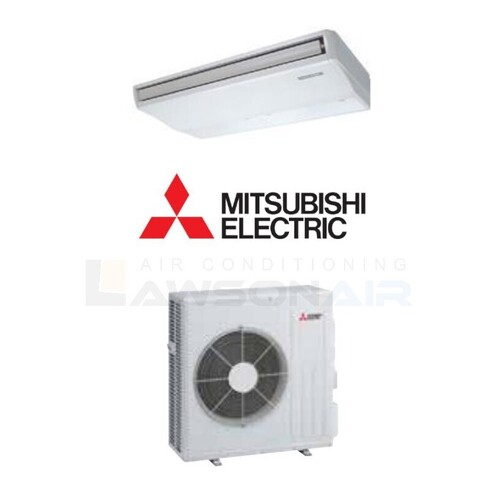

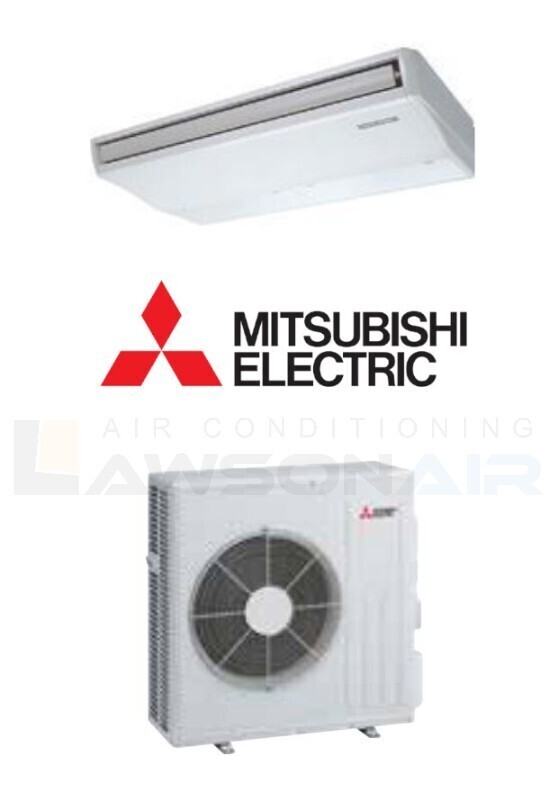

Mitsubishi Electric PCA-M50KAKIT Under Ceiling Split System - Includes Outdoor Unit SUZ-KA50VAD2

Mitsubishi Electric's 4-way airflow power suspended unit is the perfect choice for today's diversified residential and commercial applications. The three most important characteristics of an air conditioner - flexible layout planning, efficient yet powerful performance, and installation/maintenance ease - have been refined to make this series ideal for use in retail outlets, restaurants, business offices, etc.

Features:

High Ceiling Compatible
Reducing Energy Consumption
Stylish Design

(PCA-M50KAKIT)

Kit				PCA-M50KAKIT
Indoor Unit				PCA-M50KA

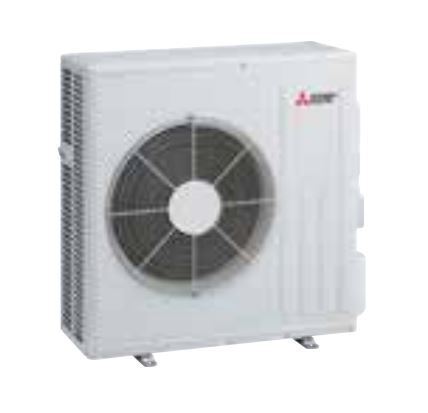

Outdoor Unit				SUZ-KA50VAD2
Cooling	Capacity	Rated	kW	5.0
	Capacity	Min - Max	kW	2.3 - 5.6
	Total Input		kW	1.40
	Running current		A	6.48
	AEER/EER	Rated Conditions		3.50/3.57
	Air Flow	Lo - Mid2 - Mid1 - Hi	L/s	167 - 183 - 217 - 250
	Sound Pressure Levels	Indoor (Lo - Mid2 - Mid1 - Hi)	dBA	32 - 34 - 37 - 40
	Sound Pressure Levels	Outdoor	dBA	52
Heating	Capacity	Rated	kW	6.0
	Capacity	Min - Max	kW	1.7 - 6.6
	Total Input		kW	1.68
	Running Current		A	5.34
	ACOP/COP	Rated Conditions		3.51 / 3.57
	Air Flow	Lo - Mid2 - Mid1 - Hi	L/s	167 - 183 - 217 - 250
	Sound Pressure Levels	Indoor (Lo - Mid2 - Mid1 -Hi)	dBA	32 - 34 - 37 - 40
	Sound Pressure Levels	Outdoor	dBA	52
Dimensions	Indoor	HxWxD	mm	230 x 960 x 680
Dimensions	Outdoor	HxWxD	mm	880 x 840 x 330
Weight	Indoor		kg	26
Weight	Outdoor		kg	51
Electrical Supply			V / Ph / Hz	230 / 1 / 50
Breaker Size			A	20
Piping	Diameter	Gas	mm	ø12.7
	Diameter	Liquid	mm	ø6.35
	Maximum Length		m	30
	Maximum Height		m	30
Guaranteed Operating Range	Cooling		°C	-5(-15) to 52
Guaranteed Operating Range	Heating		°C	-15 to 24
