Mitsubishi Electric PCA-M140KAKIT 14.0kW Under Ceiling R32 1 Phase Split System Air Conditioner Bris

Mitsubishi Electric PCA-M140KAKIT 14.0kW R32 Single Phase Under Ceiling Split System

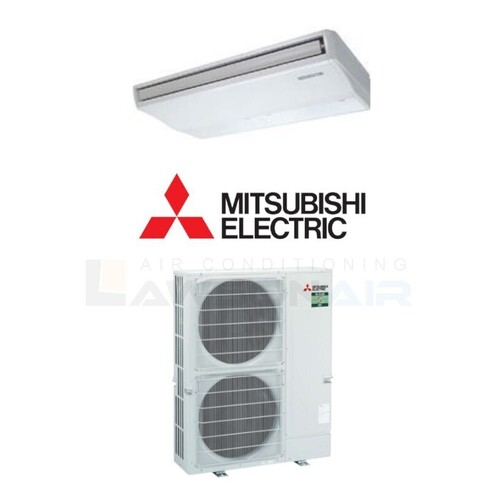

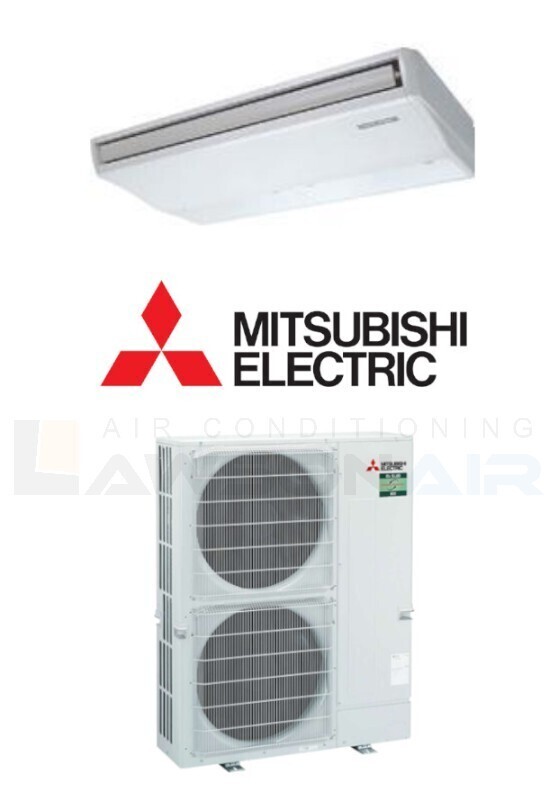

Mitsubishi Electric PCA-M140KAKIT R32 Single Phase Under Ceiling Split System - Includes Outdoor Unit PKA-M140KAL/PUZ-ZM140VKA

Mitsubishi Electric's 4-way airflow power suspended unit is the perfect choice for today's diversified residential and commercial applications. The three most important characteristics of an air conditioner - flexible layout planning, efficient yet powerful performance, and installation/maintenance ease - have been refined to make this series ideal for use in retail outlets, restaurants, business offices, etc.

Features:

High Ceiling Compatible
Reducing Energy Consumption
Stylish Design

(PCA-M140KAKIT)

Unit				PKA-M140KAL
Indoor Unit				PKA-M140KAL

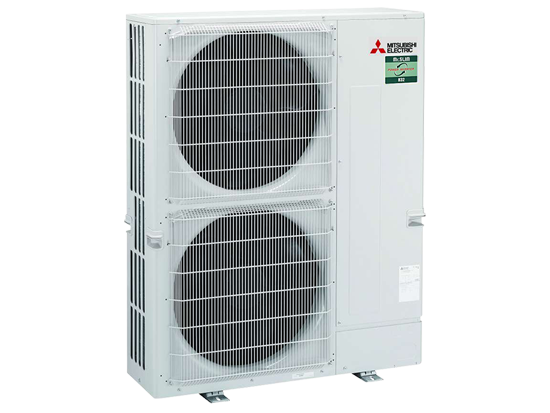

Outdoor Unit				PUZ-ZM140VKA
Cooling	Capacity	Rated	kW	13.5
	Capacity	Min - Max	kW	6.2 - 15.3
	Total Input		kW	4.15
	Running current		A	18.07
	AEER/EER	Rated Conditions		3.17/3.25
	Air Flow	Low - Mid - Hi	L/s	400 - 433 - 483 - 533
	Sound Pressure Levels	Indoor (Lo-Mid-Hi)	dBA	41 - 43 - 45 - 48
	Sound Pressure Levels	Outdoor	dBA	50
Heating	Capacity	Rated	kW	16.0
	Capacity	Min - Max	kW	5.7 - 18.0
	Total Input		kW	4.72
	Running Current		A	21.40
	ACOP/COP	Rated Conditions		3.31 / 3.38
	Air Flow	Low - Mid - Hi	L/s	400 - 433 - 483 - 533
	Sound Pressure Levels	Indoor (Lo-Mid-Hi)	dBA	41 - 43 - 45 - 48
	Sound Pressure Levels	Outdoor	dBA	52
Dimensions	Indoor	HxWxD	mm	230 x 1600 x 680
Dimensions	Outdoor	HxWxD	mm	1338 x 1050 x 330
Weight	Indoor		kg	40
Weight	Outdoor		kg	113
Electrical Supply			V / Ph / Hz	230 / 1 / 50
Breaker Size			A	16
Piping	Maximum Length		m	75
Piping	Maximum Height		m	30
Guaranteed Operating Range	Cooling		°C	-5(-15) to 52
Guaranteed Operating Range	Heating		°C	-20 to 21
