Mitsubishi Electric PCA-M100KAKIT 10.0kW Under Ceiling R32 1 Phase Split System Air Conditioner Bris

Mitsubishi Electric PCA-M100KAKIT 10.0kW R32 Single Phase Under Ceiling Split System

Mitsubishi Electric PCA-M100KAKIT R32 Single Phase Under Ceiling Split System - Includes Outdoor Unit PCA-M100KA/PUZ-ZM100VKA

Mitsubishi Electric's 4-way airflow power suspended unit is the perfect choice for today's diversified residential and commercial applications. The three most important characteristics of an air conditioner - flexible layout planning, efficient yet powerful performance, and installation/maintenance ease - have been refined to make this series ideal for use in retail outlets, restaurants, business offices, etc.

Features:

High Ceiling Compatible
Reducing Energy Consumption
Stylish Design

(PCA-M100KAKIT)

Kit				PCA-M100KAKIT
Indoor Unit				PCA-M100KA

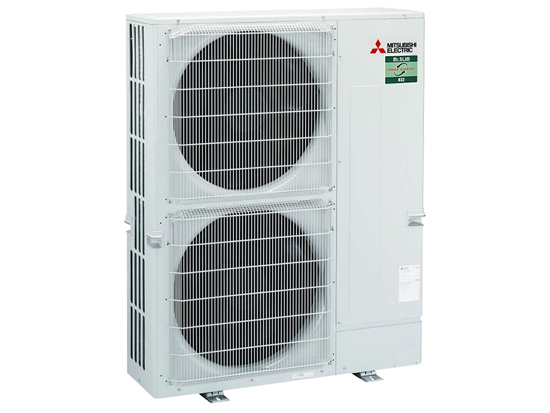

Outdoor Unit				PUZ-ZM100VKA
Cooling	Capacity	Rated	kW	10.0
	Capacity	Min - Max	kW	4.9 - 11.4
	Total Input		kW	2.55
	Running current		A	11.6
	AEER/EER	Rated Conditions		3.77/3.92
	Air Flow	Lo - Mid2 - Mid1 - Hi	L/s	367 - 400 - 433 - 467
	Sound Pressure Levels	Indoor (Lo - Mid2 - Mid1 - Hi)	dBA	37 - 39 - 41 - 43
	Sound Pressure Levels	Outdoor	dBA	49
Heating	Capacity	Rated	kW	11.2
	Capacity	Min - Max	kW	4.5 - 14.0
	Total Input		kW	3.28
	Running Current		A	14.30
	ACOP/COP	Rated Conditions		3.31 / 3.41
	Air Flow	Lo - Mid2 - Mid1 - Hi	L/s	367 - 400 - 433 - 467
	Sound Pressure Levels	Indoor (Lo - Mid2 - Mid1 -Hi)	dBA	37 - 39 - 41 - 43
	Sound Pressure Levels	Outdoor	dBA	51
Dimensions	Indoor	HxWxD	mm	230 x 1600 x 680
Dimensions	Outdoor	HxWxD	mm	1338 x 1050 x 330
Weight	Indoor		kg	37
Weight	Outdoor		kg	113
Electrical Supply			V / Ph / Hz	230 / 1 / 50
Breaker Size			A	32
Piping	Diameter	Gas	mm	ø15.88
	Diameter	Liquid	mm	ø9.52
	Maximum Length		m	75
	Maximum Height		m	30
Guaranteed Operating Range	Cooling		°C	-15 to 52
Guaranteed Operating Range	Heating		°C	-15 to 24
