Install Package - Fujitsu Lifestyle SET-ASTH22KMTD 6.0kW Wall Split Air Conditioning Package

Fujitsu-SET-ASTH22KMTD-INSTALL
Fujitsu-SET-ASTH22KMTD-INSTALL
Fujitsu-SET-ASTH22KMTD-INSTALL

Install Package - Fujitsu Lifestyle SET-ASTH22KMTD 6.0kW Wall Split Air Conditioning Package

ASTH22KMTD / AOTH22KMTD Wall Split R32 Supply & Install




$3,131.00 Incl GST
$2,846.36 Excl GST
In Stock

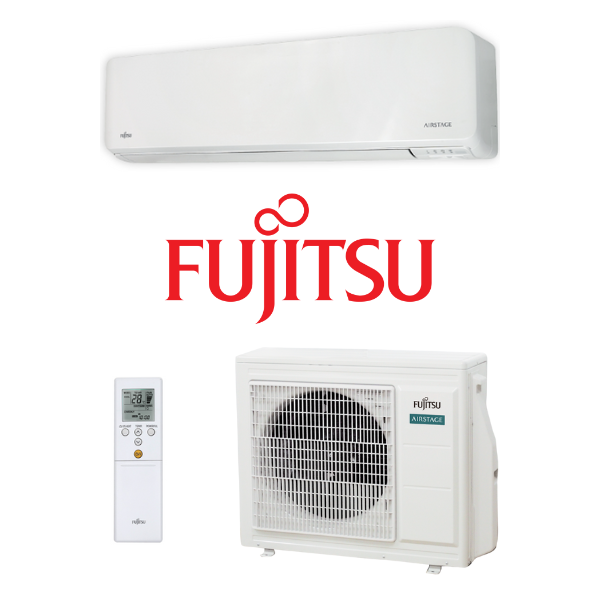

Supply & Installation Package - Fujitsu Lifestyle Range SET-ASTH22KMTD 6.0kW Wall Split System (Optional Wi-Fi Adaptor)

Ideal for mid-sized rooms. With energy management features such as Human Sensor Control, economy mode, and weekly timers, the Lifestyle range makes indoor comfort easy and cost-effective. Energy-efficient, wall mounted split system units in cooling only and reverse cycle. A stylish design, along with efficient features like Human Sensor Control and Economy mode have been combined in the Lifestyle wall mounted split system air conditioning range to offer user flexibility and total control around the comfort of their home.

Standard Installation Inclusions:

  • Wall Split Air Conditioner Installation
  • Suitable for a single-story (lowset) home
  • Back-to-back installation with a maximum 3m pipe run
  • Outdoor unit mounted on the ground

Terms & Conditions:

  • The quoted price represents “Pricing From” based on a standard installation.
  • Non-standard installations may incur additional costs and require a separate quote based on individual site requirements.
  • Pricing does not cover new builds or replacement installations.
  • Brisbane pricing applies to the Brisbane region.
  • Sydney pricing applies to areas within 20km of our Prestons office.
  • For other areas, a custom quote will be provided.

For a tailored quote based on your specific installation needs, contact our Sales Team today!

Features:

  • 7 Models from 2.5kW to 9.5kW
  • Compact and Modern Aesthetic
  • Award-Winning design
  • R32 refrigerant
  • Cooling operation range up to 50C ambient temperature

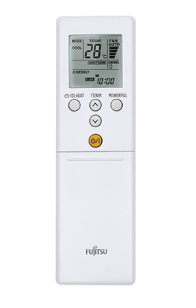

  • Includes Wireless Remote Controller

(SET-ASTH22KMTD-INSTALL)

System Names SET-ASTG09KMTC SET-ASTG12KMTC SET-ASTH18KMTD SET-ASTH22KMTD SET-ASTH24KMTD SET-ASTH30KMTD SET-ASTH34KMTD

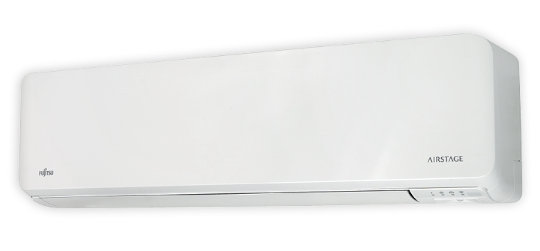

Indoor Units ASTG09KMTC ASTG12KMTC ASTH18KMTD ASTH22KMTD ASTH24KMTD ASTH30KMTD ASTH34KMTD

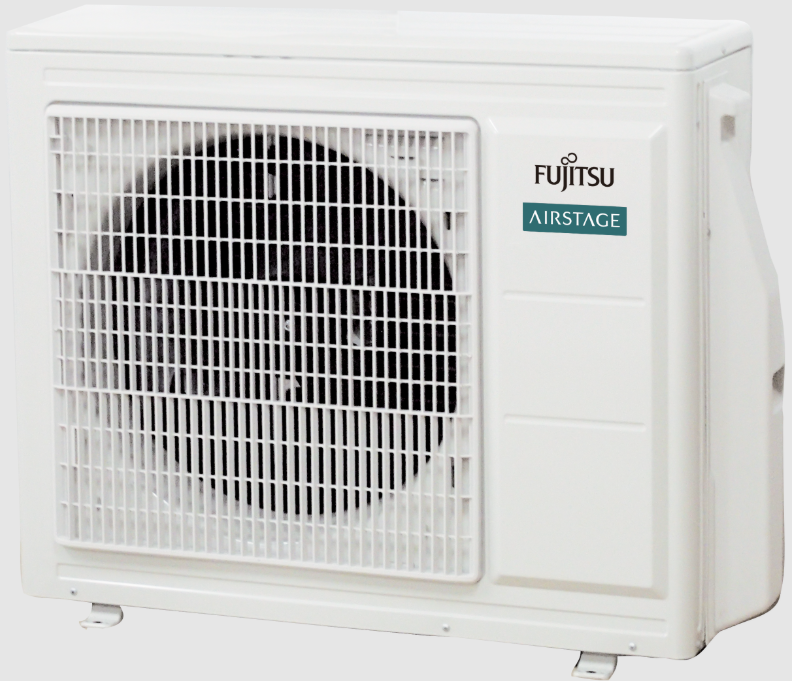

Outdoor Units AOTG09KMTC AOTG12KMTC AOTH18KMTD AOTH22KMTD AOTH24KMTD AOTH30KMTD AOTH34KMTD
Power Source (V/Ph/Hz) 220-240 / 1 / 50
Rated Cooling Capacity (kW) 2.5 3.5 5.0 6.0 7.1 8.5 9.5
Rated Heating Capacity (kW) 3.2 3.7 6.0 7.2 8.0 9.0 10.3
EER / COP 4.71 / 4.84 3.93 / 4.68 4.31 / 4.69 3.80 / 4.24 3.41 / 4.19 3.41 / 3.77 3.49 / 3.39
Outdoor Sound Power (dBA) 55 59 59 61 66 65 70
Indoor dimensions (H x W x D) (mm) 270 x 834 x 222 280 x 980 x 240 340 x 1150 x 280
Outdoor dimension (H x W x D) (mm) 542 x 799 x 290 716 x 820 x 315 788 x 940 x 320 998 x 940 x 320
Indoor Weight (kg) 10 12.5 16.5
Outdoor Weight (kg) 32 41 53 62
Pipe Sizes (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7 9.52 / 15.88
Pipe Length (m) (Max / Precharged) 20 (15) 30 (15) 50 (20) 50 (25)
Max Height Difference (m) 15 25 30
Operation Range Cooling (Min to Max CDB) -10 to 46 -10 to 50
Operation Range Heating (Min to Max CDB) -15 to 24
Refrigerant Type/Amount (g) R32 / 850 R32 / 1270 R32 / 1700 R32 / 2300
SKU SET-ASTH22KMTD-INSTALL
Brand Fujitsu
Shipping Weight 53.5000kg
Shipping Cubic 0.250799000m3
Unit Of Measure ea

Warranty

Lawson Air Conditioning offers a 1-year warranty on all Split System Installs.
