Hisense AUD-125UX-SET 12.5kW Ducted 1 Phase Air Conditioning System
AUD-125XR4RSH1 / AUW-125U4RH1 Hisense Ducted System
$3,502.73 Excl GST

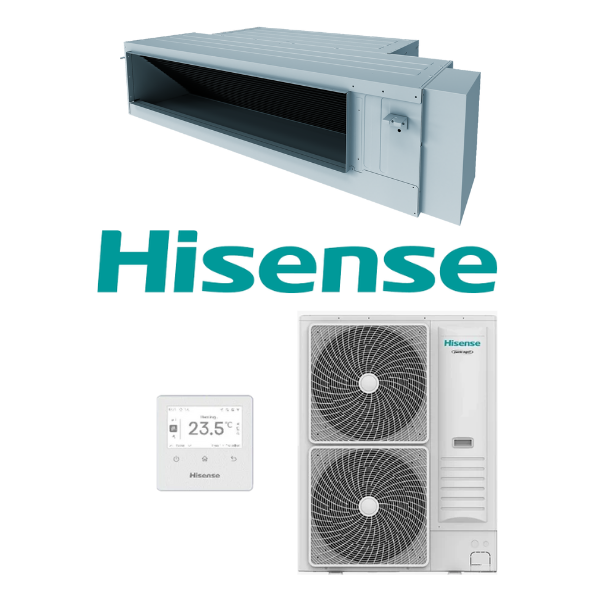

Hisense AUD-125UX-SET 12.5kW Ducted Single Phase System - Includes Programmable Zone Controller and Outdoor Unit AUW-125U4RH1
- Zone Control– Capability to control or customise the air conditioning in different zones or rooms.
- Large Airflow- Experience high airflow pressure with various piping options.
- Wi-Fi Control– Remotely control the air conditioner through the mobile phone APP and a Wi-Fi connection.
- Easy Installation– The design allows for convenient installation and maintenance.
(AUD-125UX-SET)
| System | AUD-125UX-SET | AUD-140UX-SET | AUD-160UX-SET |
|---|---|---|---|
| Indoor Unit | AUD-125UX4RSH1 | AUD-140UX4RSH1 | AUD-160UX4RSH1 |
| Outdoor Unit | AUW-125U4RH1 | AUW-140U4RH1 | AUW-160U4RH1 |
| Rated Cooling Capacity (kW) | 12.5 | 14.0 | 16.0 |
| Rated Heating Capacity (kW) | 15.0 | 17.0 | 18.9 |
| Rated Input Power Cool/Heat (kW) | 3.61 / 3.78 | 4.09 / 4.25 | 4.78 / 4.87 |
| Rated Input Current Cool/Heat (A) | 16.2 / 16.9 | 18.3 / 19.0 | 21.2 / 21.6 |
| Power Supply | 1 Phase, 220-240V, 50Hz | ||
| EER / COP | 3.60 / 4.10 | 3.55 / 4.00 | 3.35 / 3.88 |
| Airflow (H/M/L) (L/s) | 1020 / 810 / 710 | 1120 / 920 / 780 | |
| External Static Pressure (Pa) | 250 | ||
| Indoor Sound Pressure Level @1.5m (H/M/L) (dBA) | 56 / 53 / 49 | 58 / 55 / 51 | |
| Indoor Unit Net Dimensions (HxWxD) (mm) | 360 x 1520 x 820 | ||
| Indoor Unit Shipping Dimensions (HxWxD) (mm) | 440 x 1650 x 1055 | ||
| Outdoor Unit Net Dimensions (HxWxD) (mm) | 1460 x 975 x 330 | ||
| Outdoor Unit Shipping Dimensions (HxWxD) (mm) | 1590 x 1040 x 435 | ||
| Indoor Unit Net Weight (kg) | 60 | ||
| Outdoor Unit Net Weight (kg) | 98 | ||
| Refrigerant Type | R32 | ||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | ||
| Supply Air Opening (mm) HxW | 245 x 1152 | ||
| Return Air Opening (mm) HxW | 2 x 400 (Oval) | ||
| Operating Range Cool/Heat (C) | -10 to 50 / -15 to 24 | ||
| Outdoor Sound Pressure Level @1m (dBA) | 62 | ||
| Outdoor Sound Power Level (dBA) | 77 | ||
| Maximum Pipe Length (m) | 75 | ||
| Maximum Height Drop (m) | 30 | ||
| SKU | AUD-125UX-SET |
| Brand | Hisense |
| Shipping Weight | 164.0000kg |
| Shipping Cubic | 1.502653000m3 |
| Unit Of Measure | ea |
