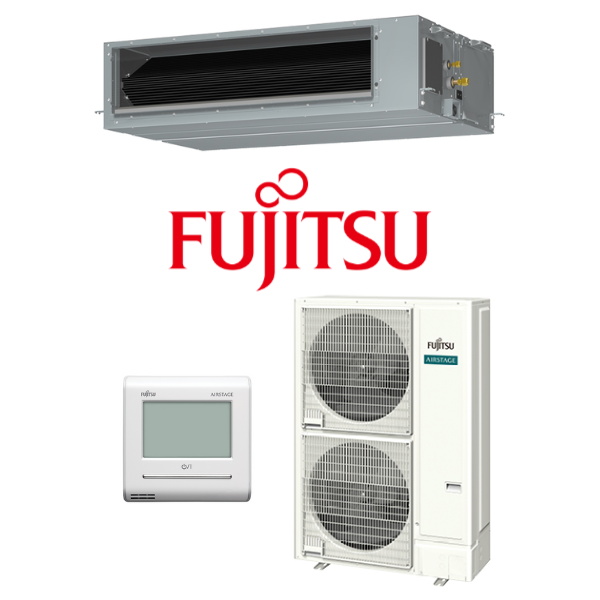

Fujitsu SET-ARTH72KHTA-3PH 20.0kW 3 Phase Large High Static Ducted Air Conditioning System

Fujitsu-SET-ARTH72KHTA-3PH
Fujitsu-SET-ARTH72KHTA-3PH
Fujitsu-SET-ARTH72KHTA-3PH

Fujitsu SET-ARTH72KHTA-3PH 20.0kW 3 Phase Large High Static Ducted Air Conditioning System

ARTH72KHTA / AOTH72KRTA Fujitsu Ducted




$6,263.00 Incl GST
$5,693.64 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System Names SET-ARTH65KHTA SET-ARTH65KHTA-3PH SET-ARTH72KHTA-3PH SET-ARTH90KHTA-3PH

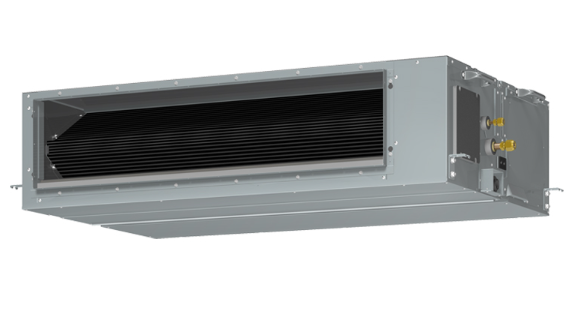

Indoor Units ARTH65KHTA ARTH65KHTA ARTH72KHTA ARTH90KHTA

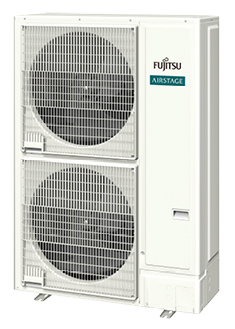

Outdoor Units AOTH65KBTA AOTH65KRTA AOTH72KRTA AOTH90KRTA
Power Source (V/Ph/Hz) 220-240 / 1 / 50 380-415 / 3 / 50
Cooling Capacity Rated/Min-Max (kW) 18.0 (5.5-20.0) 20.0 (6.0-22.4) 22.4 (6.5-26.0)
Rated Heating Capacity (kW) 20.0 (5.5-22.4) 22.4 (6.0-25.0) 25.0 (6.5-30.0)
Input Power Cool/Heat (kW) 5.61 / 5.24 6.16 / 5.82 7.42 / 6.70
EER / COP 3.21 / 3.82 3.25 / 3.85 3.02 / 3.73
Star Rating Cool (Hot/Avg/Cold) 3.0 / 2.5 / 3.0 2.5 / 2.5 / 2.5 2.0 / 2.0 / 2.0
Star Rating Heat (Hot/Avg/Cold) 3.0 / 2.5 / 1.5 3.0 / 2.5 / 1.5 2.5 / 2.0 / 1.5
Running Current Cool/Heat (A) 24.6 / 23.0 8.6 / 8.1 9.9 / 9.5 11.7 / 10.6
Outdoor Breaker (A) 32 16 20
Moisture Removal (L/hr) 4.00 5.30 4.60
Sound Pressure Level Cool Hi/Qu dBA 44 / 35 46 / 39 50 / 42
Sound Pressure Level Heat Hi/Qu dBA 44 / 35 46 / 39 50 / 42
OD Sound Pressure Level Cool/Heat dBA 57 / 58 59 / 61 60 / 62
Outdoor Sound Power Level dBA 74 75 76
Air Circulation Cool/Heat (l/sec) 1139 / 1139 1194 / 1195 1400 / 1400
Indoor dimensions (HxWxD) (mm) 360 x 1400 x 850
Outdoor dimension (HxWxD) (mm) 1418 x 970 x 370
Indoor Weight (kg) 69 79
Outdoor Weight (kg) 101 102 107
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88 12.7 / 19.05
Pipe Length (m) (Max/Precharged) 75 (30)
Max Height Difference (m) 30
Operation Range Cool Min-Max -15 to 50
Operation Range Heat Min-Max -20 to 24
Refrigerant Type/Amount (g) R32 / 3800 R32 / 4500

(SET-ARTH72KHTA-3PH)

System Names SET-ARTH65KHTA SET-ARTH65KHTA-3PH SET-ARTH72KHTA-3PH SET-ARTH90KHTA-3PH
Indoor Units ARTH65KHTA ARTH65KHTA ARTH72KHTA ARTH90KHTA
Outdoor Units AOTH65KBTA AOTH65KRTA AOTH72KRTA AOTH90KRTA
Power Source (V/Ph/Hz) 220-240 / 1 / 50 380-415 / 3 / 50
Cooling Capacity Rated/Min-Max (kW) 18.0 (5.5-20.0) 20.0 (6.0-22.4) 22.4 (6.5-26.0)
Rated Heating Capacity (kW) 20.0 (5.5-22.4) 22.4 (6.0-25.0) 25.0 (6.5-30.0)
Input Power Cool/Heat (kW) 5.61 / 5.24 6.16 / 5.82 7.42 / 6.70
EER / COP 3.21 / 3.82 3.25 / 3.85 3.02 / 3.73
Star Rating Cool (Hot/Avg/Cold) 3.0 / 2.5 / 3.0 2.5 / 2.5 / 2.5 2.0 / 2.0 / 2.0
Star Rating Heat (Hot/Avg/Cold) 3.0 / 2.5 / 1.5 3.0 / 2.5 / 1.5 2.5 / 2.0 / 1.5
Running Current Cool/Heat (A) 24.6 / 23.0 8.6 / 8.1 9.9 / 9.5 11.7 / 10.6
Outdoor Breaker (A) 32 16 20
Moisture Removal (L/hr) 4.00 5.30 4.60
Sound Pressure Level Cool Hi/Qu dBA 44 / 35 46 / 39 50 / 42
Sound Pressure Level Heat Hi/Qu dBA 44 / 35 46 / 39 50 / 42
OD Sound Pressure Level Cool/Heat dBA 57 / 58 59 / 61 60 / 62
Outdoor Sound Power Level dBA 74 75 76
Air Circulation Cool/Heat (l/sec) 1139 / 1139 1194 / 1195 1400 / 1400
Indoor dimensions (HxWxD) (mm) 360 x 1400 x 850
Outdoor dimension (HxWxD) (mm) 1418 x 970 x 370
Indoor Weight (kg) 69 79
Outdoor Weight (kg) 101 102 107
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88 12.7 / 19.05
Pipe Length (m) (Max/Precharged) 75 (30)
Max Height Difference (m) 30
Operation Range Cool Min-Max -15 to 50
Operation Range Heat Min-Max -20 to 24
Refrigerant Type/Amount (g) R32 / 3800 R32 / 4500
SKU SET-ARTH72KHTA-3PH
Brand Fujitsu
Shipping Weight 176.0000kg
Shipping Width 0.472m
Shipping Height 1.418m
Shipping Length 1.400m
Shipping Cubic 0.937320000m3
Unit Of Measure ea
