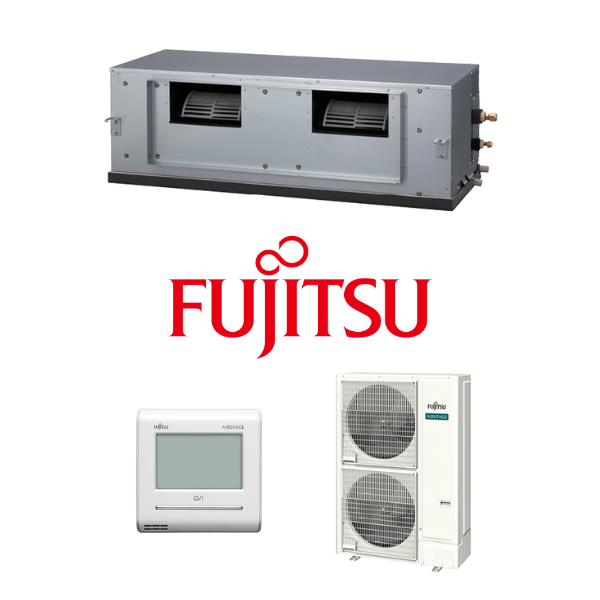

Fujitsu SET-ARTH45KHTA-HP 12.5kW Single Phase High Static Ducted High Performance Air Conditioning System

Fujitsu-SET-ARTH45KHTA-HP
Fujitsu-SET-ARTH45KHTA-HP
Fujitsu-SET-ARTH45KHTA-HP

Fujitsu SET-ARTH45KHTA-HP 12.5kW Single Phase High Static Ducted High Performance Air Conditioning System

ARTH45KHTA / AOTH45KCTA Fujitsu Ducted




$5,156.00 Incl GST
$4,687.27 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

System Names SET-ARTH30KHTA-HP SET-ARTH36KHTA-HP SET-ARTH45KHTA-HP SET-ARTH54KHTA-HP SET-ARTH60KHTB
Indoor Units ARTH30KHTA ARTH36KHTA ARTH45KHTA ARTH54KHTA ARTH60KHTB
Outdoor Units AOTH30KCTA AOTH36KCTA AOTH45KCTA AOTH54KCTA AOTH60KCTA
Power Source (V/Ph/Hz) 230 / 1 / 50
Rated Cooling Capacity (kW) 8.5 10.0 12.5 14.0 16.0
Rated Heating Capacity (kW) 10.0 12.5 15.0 16.5 18.0
EER / COP 3.90 / 4.55 3.85 / 4.25 3.61 / 4.30 3.58 / 4.13 3.32 / 3.89
Outdoor Sound Power (dBA) 69 70 71
Indoor dimensions (H x W x D) (mm) 400 x 1050 x 500 425 x 1250 x 490 360 x 1400 x 850
Outdoor dimension (H x W x D) (mm) 998 x 940 x 320 1418 x 970 x 370
Indoor Weight (kg) 39 53 69
Outdoor Weight (kg) 64 67 95 101
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88
Pipe Length (m) (Max / Precharged) 75 (30)
Max Height Difference (m) 30
Operation Range Cooling (Min to Max CDB) -10 to 50
Operation Range Heating (Min to Max CDB) -15 to 24
Refrigerant Type/Amount (g) R32 / 2100 R32 / 2500 R32 / 3400 R32 / 3800

(SET-ARTH45KHTA-HP)

System Names SET-ARTH30KHTA-HP SET-ARTH36KHTA-HP SET-ARTH45KHTA-HP SET-ARTH54KHTA-HP SET-ARTH60KHTB
Indoor Units ARTH30KHTA ARTH36KHTA ARTH45KHTA ARTH54KHTA ARTH60KHTB
Outdoor Units AOTH30KCTA AOTH36KCTA AOTH45KCTA AOTH54KCTA AOTH60KCTA
Power Source (V/Ph/Hz) 230 / 1 / 50
Rated Cooling Capacity (kW) 8.5 10.0 12.5 14.0 16.0
Rated Heating Capacity (kW) 10.0 12.5 15.0 16.5 18.0
EER / COP 3.90 / 4.55 3.85 / 4.25 3.61 / 4.30 3.58 / 4.13 3.32 / 3.89
Outdoor Sound Power (dBA) 69 70 71
Indoor dimensions (H x W x D) (mm) 400 x 1050 x 500 425 x 1250 x 490 360 x 1400 x 850
Outdoor dimension (H x W x D) (mm) 998 x 940 x 320 1418 x 970 x 370
Indoor Weight (kg) 39 53 69
Outdoor Weight (kg) 64 67 95 101
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88
Pipe Length (m) (Max / Precharged) 75 (30)
Max Height Difference (m) 30
Operation Range Cooling (Min to Max CDB) -10 to 50
Operation Range Heating (Min to Max CDB) -15 to 24
Refrigerant Type/Amount (g) R32 / 2100 R32 / 2500 R32 / 3400 R32 / 3800
SKU SET-ARTH45KHTA-HP
Brand Fujitsu
Shipping Weight 148.0000kg
Shipping Width 0.434m
Shipping Height 1.418m
Shipping Length 1.250m
Shipping Cubic 0.769233000m3
Unit Of Measure ea
