Fujitsu SET-ARTH30KHTA-HP 8.5kW Single Phase High Static Ducted High Performance Air Conditioning System

Fujitsu-SET-ARTH30KHTA-HP
Fujitsu-SET-ARTH30KHTA-HP
Fujitsu-SET-ARTH30KHTA-HP

Fujitsu SET-ARTH30KHTA-HP 8.5kW Single Phase High Static Ducted High Performance Air Conditioning System

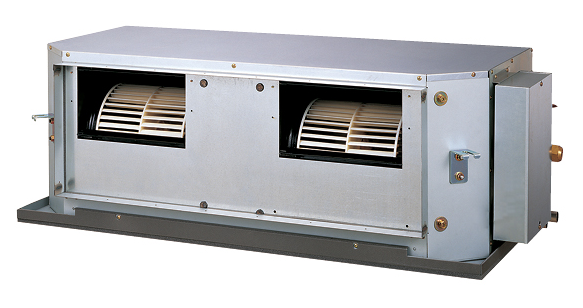

ARTH30KHTA / AOTH30KCTA Fujitsu Ducted




$4,107.00 Incl GST
$3,733.64 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

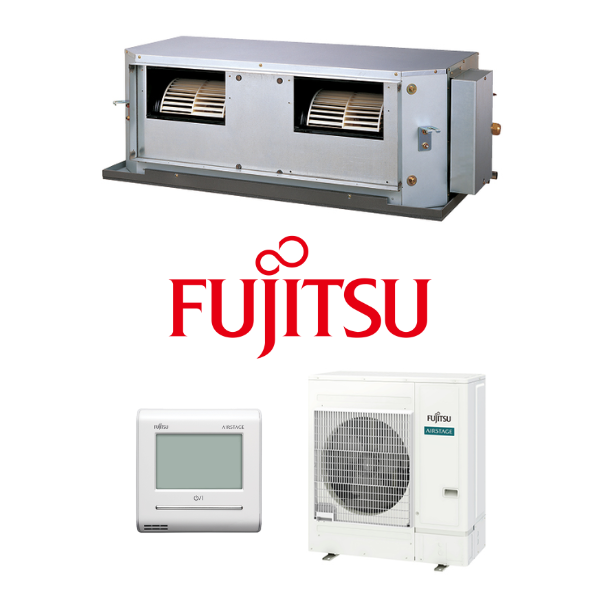

Fujitsu SET-ARTH30KHTA-HP 8.5kW Single Phase High Static Ducted System (High Performance) - Includes AOTH30KCTA Outdoor Unit and Wall Controller

The High Static Single Phase R32 (High Performance) range is available in five models, ranging in capacity from 8.5kW to 16kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.

Key Features:

  • Zone Control
  • Auto Restart
  • Auto Changeover
  • Blue Fin Heat Exchanger
  • Connectable Distributing Duct
  • Connectable Fresh Air Duct
  • Demand Response
  • Economy Mode
  • Filter Sign
  • On-Off Timer
  • Automatic Fan Speed Adjustment
  • Automatic Static Pressure Setting Adjustment
  • R32 Gas

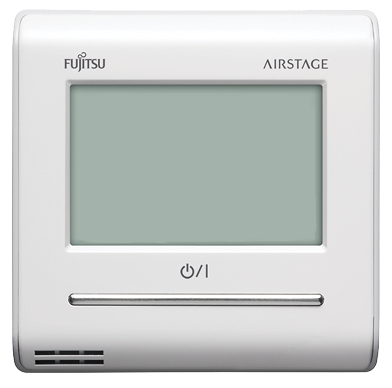

  • Wired Remote Controller Included

(SET-ARTH30KHTA-HP)

System Names SET-ARTH30KHTA-HP SET-ARTH36KHTA-HP SET-ARTH45KHTA-HP SET-ARTH54KHTA-HP SET-ARTH60KHTB
Indoor Units ARTH30KHTA ARTH36KHTA ARTH45KHTA ARTH54KHTA ARTH60KHTB

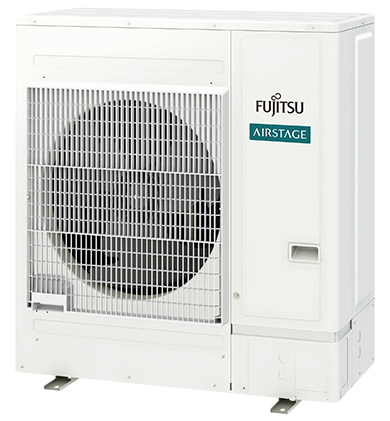

Outdoor Units AOTH30KCTA AOTH36KCTA AOTH45KCTA AOTH54KCTA AOTH60KCTA
Power Source (V/Ph/Hz) 230 / 1 / 50
Rated Cooling Capacity (kW) 8.5 10.0 12.5 14.0 16.0
Rated Heating Capacity (kW) 10.0 12.5 15.0 16.5 18.0
EER / COP 3.90 / 4.55 3.85 / 4.25 3.61 / 4.30 3.58 / 4.13 3.32 / 3.89
Outdoor Sound Power (dBA) 69 70 71
Indoor dimensions (H x W x D) (mm) 400 x 1050 x 500 425 x 1250 x 490 360 x 1400 x 850
Outdoor dimension (H x W x D) (mm) 998 x 940 x 320 1418 x 970 x 370
Indoor Weight (kg) 39 53 69
Outdoor Weight (kg) 64 67 95 101
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88
Pipe Length (m) (Max / Precharged) 75 (30)
Max Height Difference (m) 30
Operation Range Cooling (Min to Max CDB) -10 to 50
Operation Range Heating (Min to Max CDB) -15 to 24
Refrigerant Type/Amount (g) R32 / 2100 R32 / 2500 R32 / 3400 R32 / 3800
SKU SET-ARTH30KHTA-HP
Brand Fujitsu
Shipping Weight 103.0000kg
Shipping Width 0.487m
Shipping Height 0.998m
Shipping Length 1.050m
Shipping Cubic 0.510198000m3
Unit Of Measure ea
