Fujitsu SET-ARTH24KMTAP 7.1kW Mid Static Slimline Ducted 1 Phase System

ARTH24KMTAP/AOTH24KBTA Ducted Air Conditioner




$2,911.00 Incl GST
$2,646.36 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

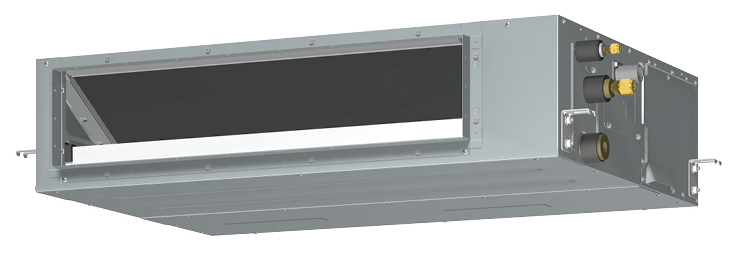

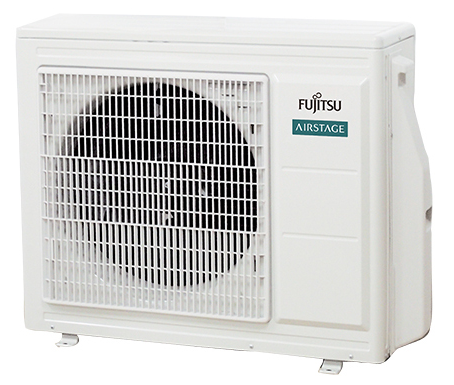

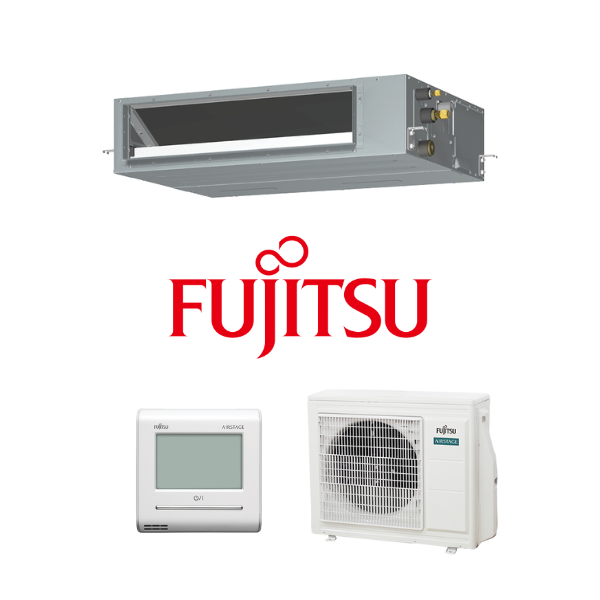

Fujitsu SET-ARTH24KMTAP 7.1kW Single Phase Mid Static Slimline Ducted System - Includes AOTH24KBTA Outdoor Unit

The Fujitsu General Mid Static Slimline R32 models are designed with a narrow 240mm high chassis and a built-in drain pump, giving flexibility for the system to be installed in tighter bulkhead and ceiling applications.

Features:

  • Zone Control
  • Auto Restart
  • Auto Changeover
  • Blue Fin Heat Exchanger
  • Connectable Distributing Duct
  • Connectable Fresh Air Duct
  • Demand Response
  • Economy Mode
  • Filter Sign
  • On-Off Timer
  • In-Built Drain Pump
  • Automatic Fan Speed Adjustment

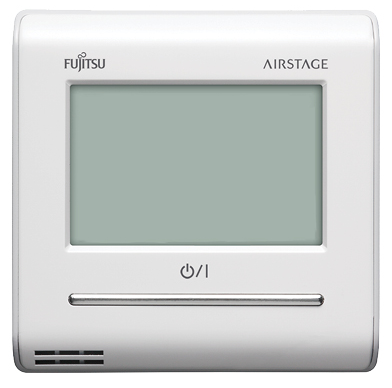

  • Wired Remote Controller Included
  • R32 Gas

(SET-ARTH24KMTAP)

System Names SET-ARTH18KMTAP SET-ARTH24KMTAP SET-ARTH30KMTAP SET-ARTH36KMTAP SET-ARTH45KMTAP SET-ARTH54KMTAP SET-ARTH24KMTAP-HP SET-ARTH30KMTAP-HP
Indoor Units ARTH18KMTAP ARTH24KMTAP ARTH30KMTAP ARTH36KMTAP ARTH45KMTAP ARTH54KMTAP ARTH24KMTAP ARTH30KMTAP
Outdoor Units AOTH18KBTA AOTH24KBTA AOTH30KBTA AOTH36KBTA AOTH45KBTA AOTH54KBTA AOTH24KCTA AOTH30KCTA
Power Source (V/Ph/Hz) 230 / 1 / 50
Rated Cooling Capacity (kW) 5.0 7.1 8.5 10.0 12.5 13.0 7.1 8.5
Rated Heating Capacity (kW) 6.0 8.0 10.0 11.2 14.0 15.0 8.0 10.0
EER / COP 3.65 / 3.80 3.30 / 3.65 3.55 / 4.12 3.19 / 3.73 3.13 / 3.50 3.02 / 3.37 3.84 / 4.15 3.76 / 4.05
Outdoor Sound Power (dBA) 62 68 69 70 71 72 67 69
Indoor dimensions (H x W x D) (mm) 240 x 1000 x 700 240 x 1400 x 700 240 x 1000 x 700 240 x 1400 x 700
Outdoor dimension (H x W x D) (mm) 632 x 799 x 290 716 x 820 x 315 788 x 940 x 320 998 x 940 x 320
Indoor Weight (kg) 31 42 31 42
Outdoor Weight (kg) 36 42 52 67 63 64
Pipe Sizes (Liquid/Gas) (mm) 6.35 / 12.7 9.52 / 15.88 6.35 / 12.7 9.52 / 15.88
Pipe Length (m) (Max / Precharged) 30 (20) 50 (30) 75 (30)
Max Height Difference (m) 20 25 30
Operation Range Cooling (Min to Max CDB) -10 to 50
Operation Range Heating (Min to Max CDB) -15 to 24
Refrigerant Type/Amount (g) R32 / 1020 R32 / 1250 R32 / 1900 R32 / 2700 R32 / 1800 R32 / 2100
SKU SET-ARTH24KMTAP
Brand Fujitsu
Shipping Weight 74.0000kg
Unit Of Measure ea
