Fujitsu SET-ARTH18KSLAP 5.0kW 1 Phase Bulkhead Ducted Air Conditioner Brisbane Sydney Installation

Fujitsu SET-ARTH18KSLAP 5.0kW Ducted Bulkhead 1 Phase Air Conditioning System

Calculate Shipping

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

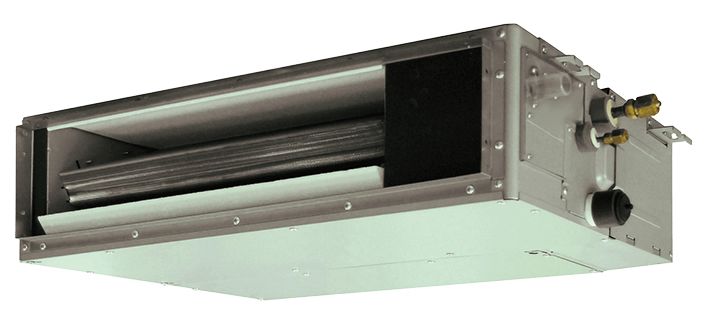

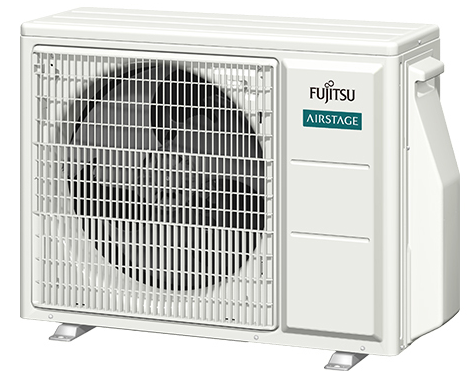

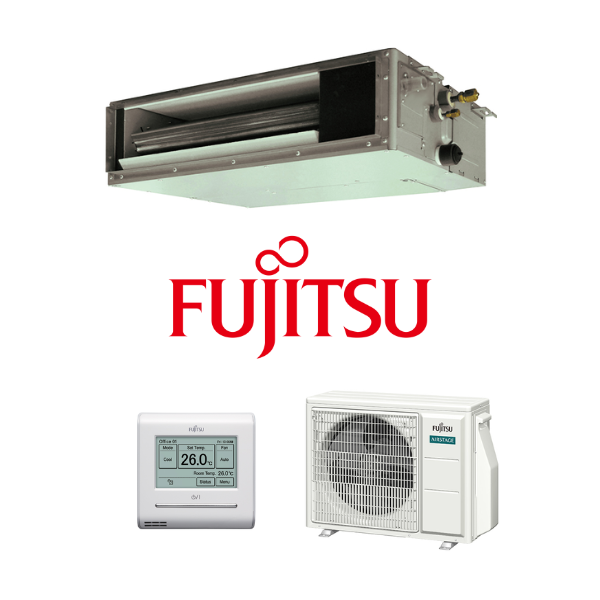

Fujitsu SET-ARTH18KSLAP 5.0kW Single Phase Deep Bulkhead Ducted System - Includes AOTH18KBTA Outdoor Unit and Wall Controller

Fujitsu bulkhead ducted air conditioner features a compact design to allow for flexible installation in tight bulkhead applications such as above a wardrobe. The 450mm bulkhead model is energy efficient and uses R32 refrigerant, which has a 67 per cent lower ‘Global Warming Potential Factor’ whilst still maintaining the performance of the air conditioner.

Features:

All DC
Auto Restart
Auto Changeover
Blue Fin Heat Exchanger
Connectable Distributing Duct
Economy Mode

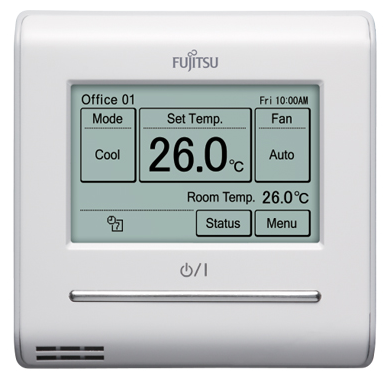

Wired Remote Controller Included

(SET-ARTH18KSLAP)

System Names	SET-ARTH09KSLAP	SET-ARTH12KSLAP	SET-ARTH18KSLAP
Indoor Units	ARTH09KSLAP	ARTH12KSLAP	ARTH18KSLAP
Outdoor Units	AOTH09KBTA	AOTH12KBTA	AOTH18KBTA
Power Source (V/Ph/Hz)	230 / 1 / 50
Rated Cooling Capacity (kW)	2.5	3.5	5.0
Rated Heating Capacity (kW)	3.2	4.0	6.0
EER / COP	3.91 / 4.00	3.57 / 3.64	3.38 / 3.47
Outdoor Sound Power (dBA)	59	61	62
Indoor dimensions (H x W x D) (mm)	198 x 700 x 450		198 x 900 x 450
Outdoor dimension (H x W x D) (mm)	542 x 799 x 290		632 x 799 x 290
Indoor Weight (kg)	15.5		18.5
Outdoor Weight (kg)	32		36
Pipe Sizes (Liquid/Gas) (mm)	6.35 / 9.52		6.35 / 12.7
Pipe Length (m) (Max / Precharged)	20 (15)		30 (20)
Max Height Difference (m)	15		20
Operation Range Cooling (Min to Max CDB)	-10 to 46
Operation Range Heating (Min to Max CDB)	-15 to 24
Refrigerant Type/Amount (g)	R32 / 850		R32 / 1020
