Daikin Premium FDYA180A-DV 18.0kW Ducted 1 Phase Air Conditioning System

Daikin-FDYA180A-DV
Daikin-FDYA180A-DV
Daikin-FDYA180A-DV

Daikin Premium FDYA180A-DV 18.0kW Ducted 1 Phase Air Conditioning System

FDYA180AV1 / RZAS180DV1 Daikin Premium Ducted




$7,994.00 Incl GST
$7,267.27 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

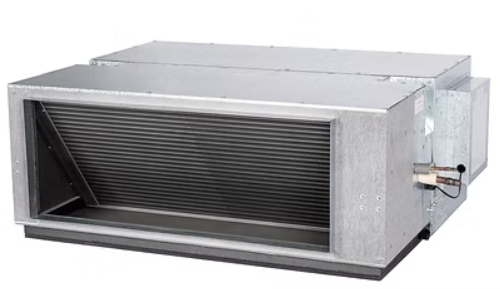

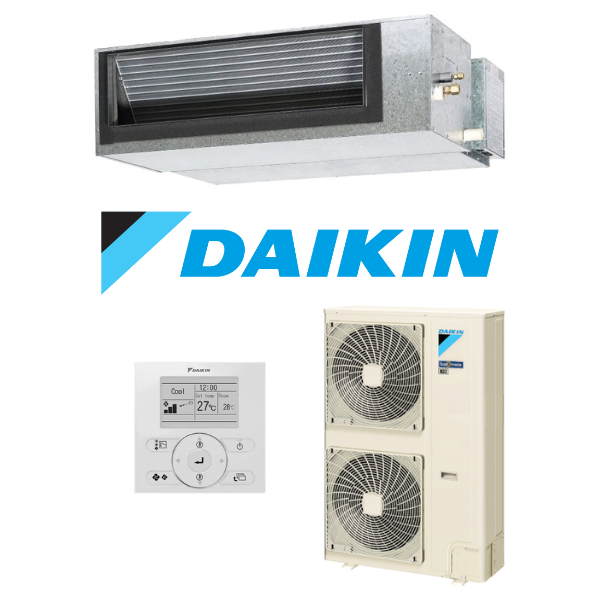

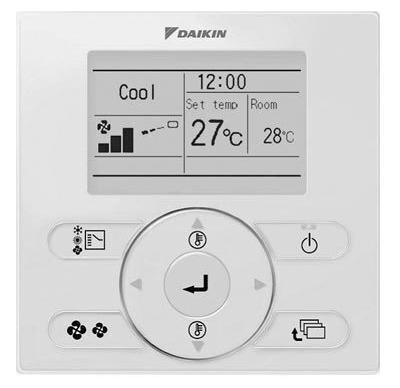

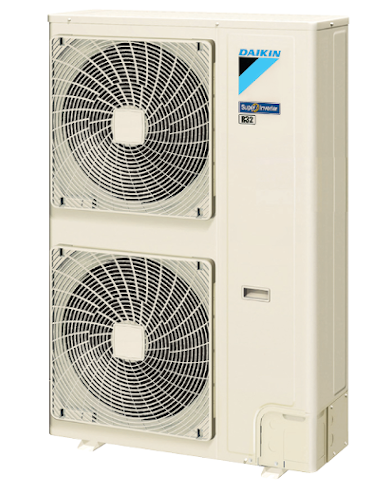

Daikin Premium FDYA180A-DV 18.0kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit RZAS180DV1

Daikin Australia has introduced its New 18 & 20kW R32 Premium Inverter Ducted Systems (FDYA180AV1 & FDYA200AV1). Featuring R32 refrigerant, greater seasonal energy performance, and an optional refrigerant leak detector sensor, these units deliver powerful performance with compact side discharge outdoor units. Engineered for the Australian market, the new systems offer exceptional energy efficiency, installation flexibility and advanced safety compliance.

Key Features:

  • Industry leading energy performance - Attained through the utilization of a reengineered cross-pass heat exchanger, a DC fan motor, and enhanced refrigerant control technology.

  • Night Quite Mode - Lowers outdoor noise levels during sleeping hours and seamlessly restores regular operations in the morning.

  • Demand Respone Enabled Ducted (DRED) - A Demand Response Enabled (DRED) air conditioner permits your electricity provider to regulate the system at different preset levels, effectively managing your power grid demand during peak periods.

  • R22 backwards compatibility - Offers an economical and user-friendly enhancement option for an existing R22 ducted system, maintaining the field piping (excluding Heating Focus models).

  • Australian Made - The indoor units are meticulously crafted and engineered to adhere to Australian standards, ensuring durability against the more demanding conditions of the summer climate.

(FDYA180A-DV)


System Names FDYA71A9-C2V FDYA85A9-C2V FDYA100A9-C2V FDYA125A9-C2V FDYA140A9-C2V FDYA160A9-C2V FDYA180A-DV
Indoor Unit FDYA71AV19 FDYA85AV19 FDYA100AV19 FDYA125AV19 FDYA140AV19 FDYA160AV19 FDYA180AV1
Outdoor Unit RZAS71C2V1 RZAS85C2V1 RZAS100C2V1 RZAS125C2V1 RZAS140C2V1 RZAS160C2V1 RZAS180DV1
Rated Cooling Capacity (kW) 7.1 8.5 10.0 12.5 14.0 16.0 18.0
Rated Heating Capacity (kW) 7.5 10.0 12.5 15.0 16.5 18.0 20.0
Power Supply 1 Phase, 220-240V, 50Hz
Power Input (Rated) Cool/Heat (kW) 1.90 / 1.75 2.35 / 2.46 2.61 / 3.13 3.45 / 3.80 3.93 / 4.28 4.85 / 4.65 5.16 / 4.79
EER / COP 3.74 / 4.29 3.62 / 4.07 3.83 / 3.99 3.62 / 3.95 3.56 / 3.86 3.30 / 3.87 3.49 / 4.18
TCSPF (Residential) Hot/Avg/Cold 5.2 / 4.5 / 4.55 4.99 / 4.4 / 4.45 4.69 / 4.22 / 4.25 4.96 / 4.47 / 4.59 5.00 / 4.54 / 4.67 4.77 / 4.37 / 4.55 5.17 / 4.41 / 4.42
HSPF (Residential) Hot/Avg/Cold 4.79 / 4.34 / 3.86 4.43 / 4.04 / 3.60 4.43 / 4.07 / 3.62 4.72 / 4.08 / 3.45 5.01 / 4.12 / 3.41 4.55 / 3.97 / 3.41 5.33 / 4.52 / 3.82
Airflow Rate (Nominal/Max) (L/s) 425 / 566 580 / 600 680 / 800 755 / 840 900 / 1000 950 / 1120 1160 / 1200
Indoor Sound Level @1.5m Cool/Heat (dBA) 37.3 / 40.5 42.0 / 42.5 42.3 / 45.0 44.8 / 46.2 45.9 / 47.4 47.2 / 49.6 42.1 / 42.1
Piping Length (m) 75 50
Indoor Fan Speeds H / M / L
Indoor Unit Dimensions (HxWxD) (mm) 300 x 1210 x 900 360 x 1520 x 935 400 x 1505 x 980 470 x 1200 x 997
Outdoor Unit Dimension (HxWxD) (mm) 990 x 940 x 320 1430 x 940 x 320
Indoor Unit Weight (kg) 40 41 46 56 60 70
Outdoor Unit Weight (kg) 69 78 93 99 118
Compressor Type Hermetically Sealed Swing Type
Refrigerant R32
Pipe Sizes (Liquid/Gas) (mm) 9.52 / 15.88 9.52 / 19.1
Supply Air Opening (mm) HxW 185 x 852 245 x 1152 295 x 1152 350 x 918
Return Air Opening (mm) 1 x 400 (Oval) 2 x 350 (Oval) 2 x 400 (Oval) 393 x 918
Outdoor Operating Range Cool/Heat (C) -5 to 50 / -15 to 16 -5 to 52 / -20 to 15.5
EPA Sound Power Level (dBA) 67 71 70 71 73 75 82
Outdoor Sound Level @1m Cool/Heat (dBA) 48 / 50 52 / 53 51 / 53 52 / 54 54 / 56 56 / 58 59 / 61
SKU FDYA180A-DV
Brand Daikin
Shipping Weight 188.0000kg
Shipping Cubic 0.992452000m3
Unit Of Measure ea

Daikin offers a 5-year warranty for all of their Air Conditioners and Controllers.
