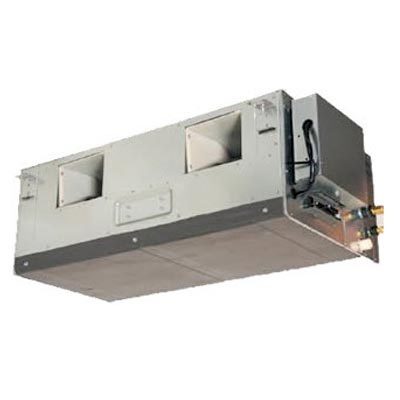

Toshiba RAV-SM1103DT-A 10.4kW High Static Ducted Unit

RAV-SM1103DT-A/RAV-SP1104AT-A 1PH Ducted Air Conditioner




$3,803.00 Incl GST
$3,457.27 Excl GST
Sold Out

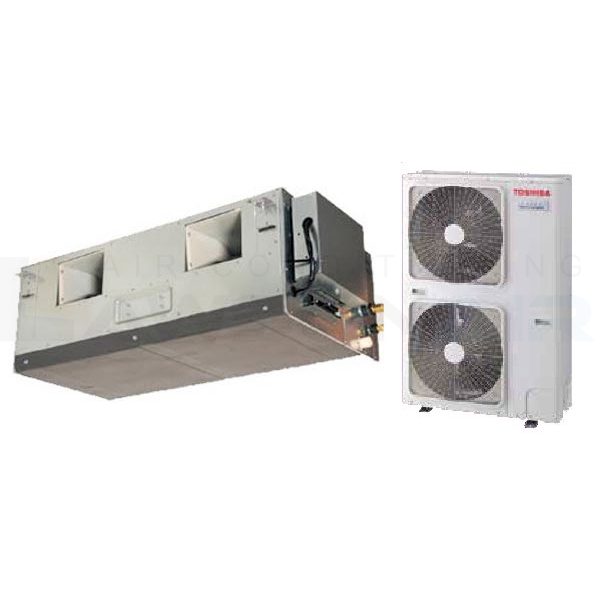

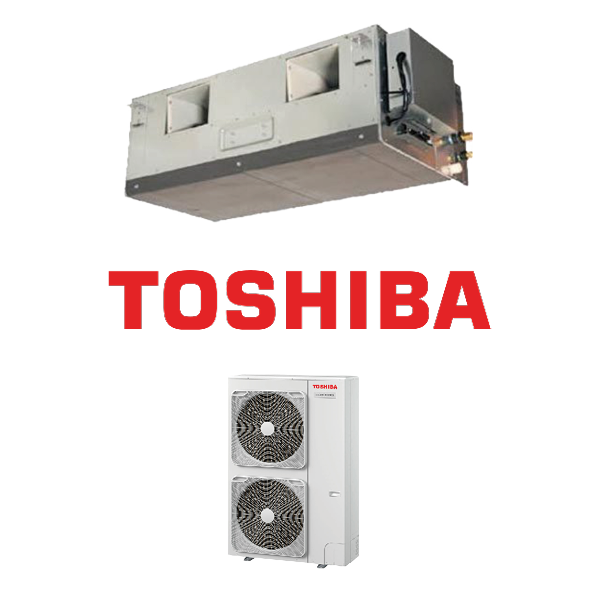

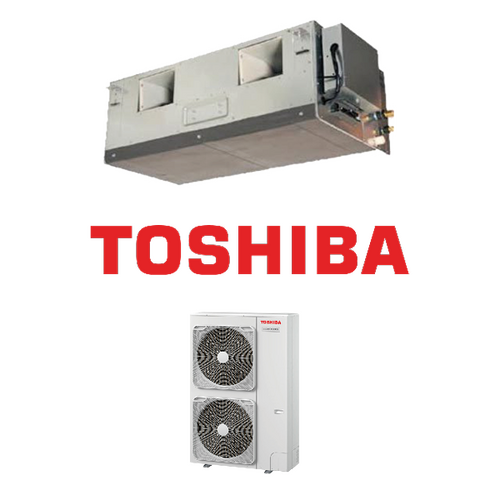

Toshiba RAV-SM1103DT-A 10.4kW High Static Ducted Unit - Includes Outdoor Unit RAV-SP1104AT-A

Ducted air conditioning is a fantastic solution to controlling the temperature of multiple rooms or an entire home. Toshiba’s Inverter ducted air conditioning systems allow you to air condition your home without having to install the indoor units on your wall, making your home look neat and tidy.

The indoor unit is installed in a confined space and ducts run through the ceiling leading to air outlets in your room. Air is allowed into the room through vents on the ceiling or on the wall. Toshiba’s ducted air conditioners are reverse cycle allowing your home to be kept cool in summer and warm in winter, achieving all year comfort.

Features:

  • Stable performance with minimum friction is delivered by the enhanced DC Twin-Rotary Compressor. It is great for noise-sensitive environments as the sound of the outdoor unit is close to silent.
  • PAM provides fast cooling to achieve the desired room temperature when the air conditioner is switched on. It works like a turbo engine in a car to achieve the set temperature quickly.
  • Reduced energy consumption when operated in long stable conditions.

Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal, Iconic smart home automation product suppliers.

(RAV-SM1103DT-A)

Model Number - System
Indoor Unit RAV-SM1103DT-A
Outdoor Unit RAV-SP1104AT-A
Refrigerant Type   R410A
Power Supply V / Ph / Hz 220-240 / 1 / 50
Cooling Capacity - Rated kW 10.4
Capacity - Range (min - max) kW 3.3 - 12.1
Efficiency - Rated EER 3.30
Power input (min - rated - max) kW 0.90 - 3.15 - 3.99
Operating Current - Rated A 14.8
Heating Capacity - Rated kW 11.3
Capacity - Range (min - max) kW 4.2 - 17.0
Efficiency - Rated COP 4.38
Power input (min - rated - max) kW 0.80 - 2.58 - 4.84
Operating Current - Rated A 12.1
Indoor Unit Dimensions (HxWxD) mm 380 x 1050 x 600
Net Weight kg 57
Airfow Volume L/s 693.3
Heating Airflow Volume L/s 693.5
Fan Motor Output W 60
Sound Pressure (H) - 1m dBA 49
Sound Power (H) dBA 64
Outdoor Unit Dimensions (HxWxD) mm 1340 x 900 x 320
Net Weight kg 93
Compressor Type - DC Twin Rotary
Fan Motor Output W 100 + 100
Cooling Operating Noise (Sound Pressure) (H) - 1m dBA(@spl) 49
Cooling Operating Noise (Sound Power) (H) dBA(@spl) 66
Heating Operating Noise (Sound Pressure) (H) - 1m dBA(@spl) 50
Heating Operating Noise (Sound Power) (H) dBA(@spl) 67
Cooling Usabe Temperature Range °CDB -15 to 43
Heating Usable Temperature Range °CWB -20 to 15
Pipe Size Liquid Line Ø mm 9.5
Gas Line Ø mm 15.9
Coupler Style - Flaring
Drain (Inside Diameter) Ø mm VP25
Maximum Length m 75
Chargeless Length m 30
Maximum Height Difference m 30
SKU RAV-SM1103DT-A
Brand Toshiba
Shipping Weight 150.0000kg
