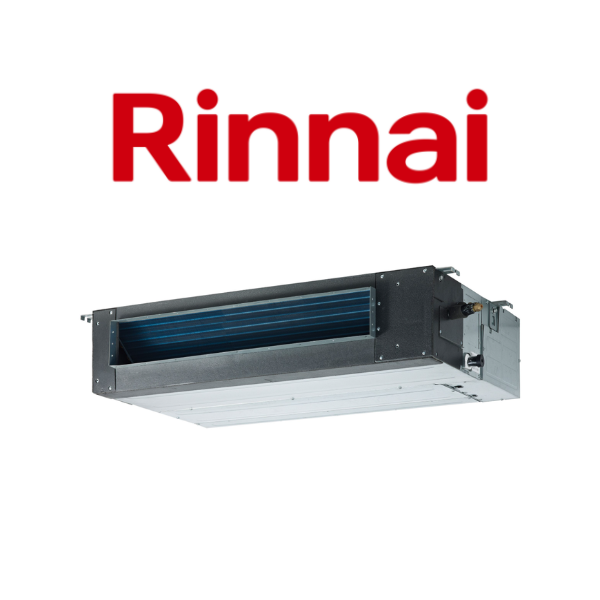

Rinnai DINSD26MB 2.6kW Indoor Only Multi Air Conditioning Mid Static Ducted Unit

Rinnai DINSD26MB 2.6kW Indoor Only Multi Air Conditioning Mid Static Ducted Unit

Rinnai Indoor Ducted Multi




$591.00 Incl GST
$537.27 Excl GST
In Stock

Calculate Shipping


Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

 *This is an Indoor Unit Only, not a complete system. An Outdoor Multi Unit is Required.

Rinnai DINSD26MB 2.6kW Indoor Multi Air Conditioning Mid Static Ducted Unit

Ideal temperatures for more than one room - When your home requires heating and cooling in more than one room, or independent room control is needed, the Rinnai Inverter Multi-Split Slim Ducted units are the simplest way to heat or cool up to five individual rooms with only one outdoor unit.

Compact and space saving in design, the Rinnai Inverter Multi-Split Slim Ducted indoor unit is ideal for tight spaces. Hidden away in a bulkhead or a ceiling cavity, with excellent acoustic characteristics, this ultra slim unit also has flexible installation configuration options.

Features:



  • Compact and slim
  • Non-obtrusive to your architectural designs
  • Great performance
  • Timer functionality
  • DC Inverter

(DINSD26MB)

Unit DINSD26MB DINSD35MB DINSD50MB DINSD70MB
Net Dimensions (HxWxD) (mm) 200x700x506 210x880x674 249x1100x774
Gross Dimensions (HxWxD) (mm) 285x860x540 280x1070x725 315x1305x805
Net Weight (kg) 18 24 32
Gross Weight (kg) 22 29 39
Air Duct Connection (H x W) Supply (mm) 152x537 136x706 175x926
Air Duct Connection (H x W) Return (mm) 186x599 190x782 228x1001
Pipe Size (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7 9.52 / 15.9
Power Supply (V-Ph-Hz) 220-240 / 1 / 50
Rated Capacity Cool/Heat (kW) 2.6 / 2.9 3.5 / 3.8 5.2 / 5.5 7.1 / 7.3
Rated Input Power Cool/Heat (W) 180 / 180 185 / 185 200 / 200
Rated Input Current Cool/Heat (A) 1.1 / 1.1 1.3 / 1.3
Airflow Hi/Med/Lo (L/s) 500 / 340 / 230 600 / 480 / 300 880 / 650 / 350
Sound Pressure @1m Hi/Med/Lo dB(A) 40 / 34 / 27 41 / 38 / 33
Maximum External Static Pressure (Hi) (Pa) 60 100 160
Condensate Drain Pump Connection OD 25
Controller Wired Controller - 12m Cable
Operating Range Cool/Heat oC 17 to 32 / 0 to 30
Wi-Fi Compatibility Optional
SKU DINSD26MB
Brand Rinnai
Shipping Weight 22.0000kg
Shipping Width 0.540m
Shipping Height 0.285m
Shipping Length 0.860m
Shipping Cubic 0.132354000m3
Unit Of Measure ea
