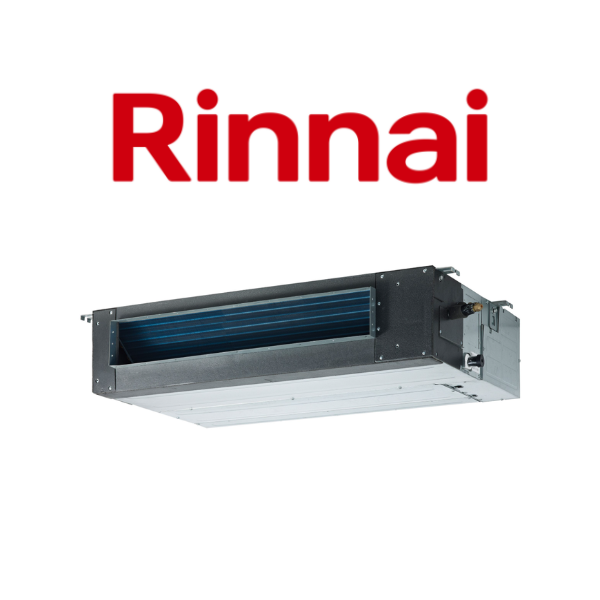

Rinnai DINSD70MB 7.0kW Indoor Only Multi Air Conditioning Mid Static Ducted Unit

Rinnai DINSD70MB 7.0kW Indoor Only Multi Air Conditioning Mid Static Ducted Unit

Rinnai Indoor Ducted Multi




$729.00 Incl GST
$662.73 Excl GST
In Stock

Calculate Shipping


Request Separate Shipping Quote
Best suited for large or bulky orders. After receiving your order, our team will contact you to arrange a custom shipping quote based on current freight market rates to your location. We work with multiple freight providers to find the best pricing and delivery option for your needs. Please note that final shipping costs will vary from the online shipping estimate.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.
Pick Up- $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm. Please wait for pickup confirmation call or email. Or contact us prior to picking up to ensure your unit is packed and ready to go.

Unit DINSD26MB DINSD35MB DINSD50MB DINSD70MB
Net Dimensions (HxWxD) (mm) 200x700x506 210x880x674 249x1100x774
Gross Dimensions (HxWxD) (mm) 285x860x540 280x1070x725 315x1305x805
Net Weight (kg) 18 24 32
Gross Weight (kg) 22 29 39
Air Duct Connection (H x W) Supply (mm) 152x537 136x706 175x926
Air Duct Connection (H x W) Return (mm) 186x599 190x782 228x1001
Pipe Size (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7 9.52 / 15.9
Power Supply (V-Ph-Hz) 220-240 / 1 / 50
Rated Capacity Cool/Heat (kW) 2.6 / 2.9 3.5 / 3.8 5.2 / 5.5 7.1 / 7.3
Rated Input Power Cool/Heat (W) 180 / 180 185 / 185 200 / 200
Rated Input Current Cool/Heat (A) 1.1 / 1.1 1.3 / 1.3
Airflow Hi/Med/Lo (L/s) 500 / 340 / 230 600 / 480 / 300 880 / 650 / 350
Sound Pressure @1m Hi/Med/Lo dB(A) 40 / 34 / 27 41 / 38 / 33
Maximum External Static Pressure (Hi) (Pa) 60 100 160
Condensate Drain Pump Connection OD 25
Controller Wired Controller - 12m Cable
Operating Range Cool/Heat oC 17 to 32 / 0 to 30
Wi-Fi Compatibility Optional

(DINSD70MB)

Unit DINSD26MB DINSD35MB DINSD50MB DINSD70MB
Net Dimensions (HxWxD) (mm) 200x700x506 210x880x674 249x1100x774
Gross Dimensions (HxWxD) (mm) 285x860x540 280x1070x725 315x1305x805
Net Weight (kg) 18 24 32
Gross Weight (kg) 22 29 39
Air Duct Connection (H x W) Supply (mm) 152x537 136x706 175x926
Air Duct Connection (H x W) Return (mm) 186x599 190x782 228x1001
Pipe Size (Liquid/Gas) (mm) 6.35 / 9.52 6.35 / 12.7 9.52 / 15.9
Power Supply (V-Ph-Hz) 220-240 / 1 / 50
Rated Capacity Cool/Heat (kW) 2.6 / 2.9 3.5 / 3.8 5.2 / 5.5 7.1 / 7.3
Rated Input Power Cool/Heat (W) 180 / 180 185 / 185 200 / 200
Rated Input Current Cool/Heat (A) 1.1 / 1.1 1.3 / 1.3
Airflow Hi/Med/Lo (L/s) 500 / 340 / 230 600 / 480 / 300 880 / 650 / 350
Sound Pressure @1m Hi/Med/Lo dB(A) 40 / 34 / 27 41 / 38 / 33
Maximum External Static Pressure (Hi) (Pa) 60 100 160
Condensate Drain Pump Connection OD 25
Controller Wired Controller - 12m Cable
Operating Range Cool/Heat oC 17 to 32 / 0 to 30
Wi-Fi Compatibility Optional
SKU DINSD70MB
Brand Rinnai
Shipping Weight 39.0000kg
Shipping Width 0.805m
Shipping Height 0.315m
Shipping Length 1.305m
Shipping Cubic 0.330915375m3
Unit Of Measure ea
