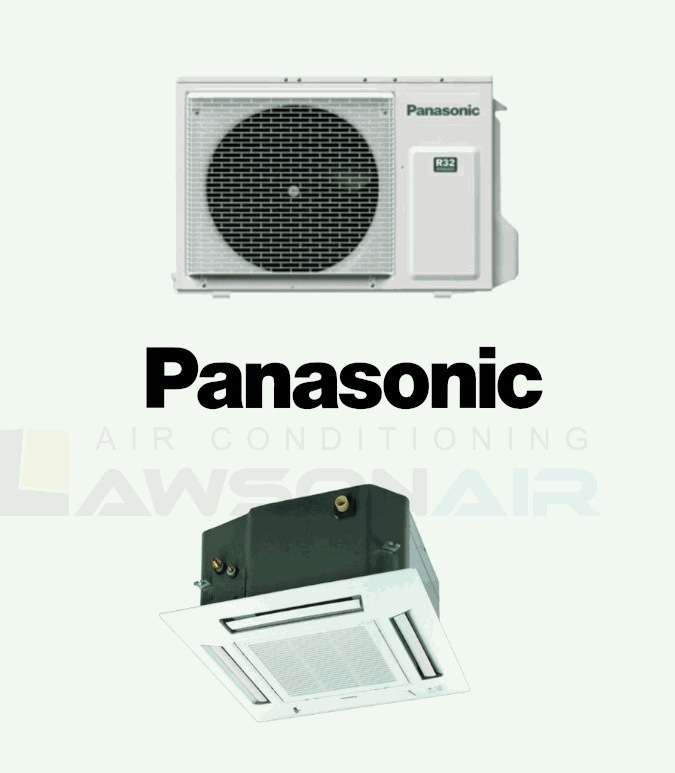

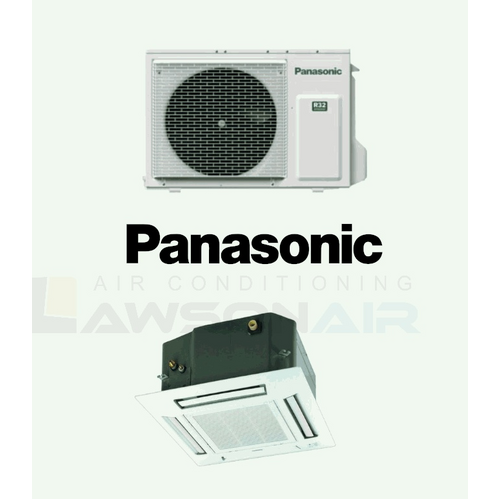

Panasonic CSCU-Z60UB4RAW 6.0 kW 4-Way Mini-Cassette System

CS-Z60UB4RAW/CU-Z60UBRA Mini-Cassette Air Conditioner




$1,194.00 Incl GST
$1,085.45 Excl GST
Sold Out



Panasonic CSCU-Z60UB4RAW 6.0 kW 4-Way Mini-Cassette System - Includes Outdoor Unit CU-Z60UBRA

Product line-up suitable for light to medium commercial and residential applications.

Features:

  • WLAN Control Possible
  • Market-leading Energy Efficiency
  • Compact Design (260mm High)
  • Built-in drain pump

(CSCU-Z60UB4RAW)

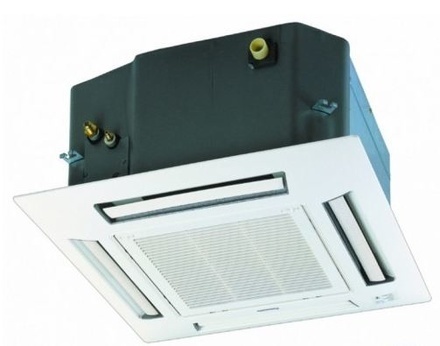

Indoor Unit CS-Z60UB4RAW

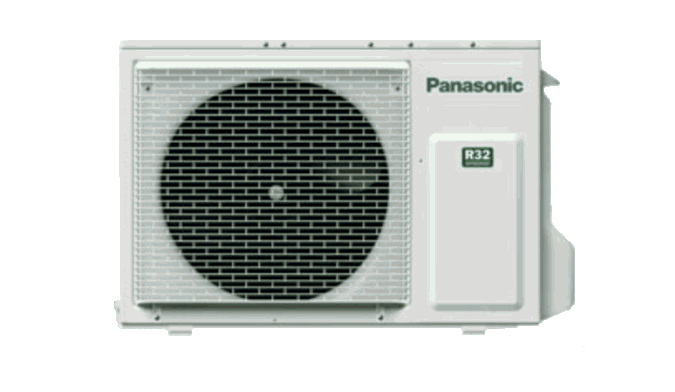

Outdoor Unit CU-Z60UBRA
Function Cooling + Heating
Cooling Capacity Rated Conditions kW 5.7
Cooling Capacity Range - Min ~ Max kW 0.90 ~ 6.35
EER w/w 3.29
Heating Capacity Rated Conditions kW 6.0
Heating Capacity Range - Min ~ Max kW 0.90 ~ 8.00
COP w/w 3.30
Sound Pressure Indoor - Cool - Hi / Med / Lo dB(A) 43 / 32 / 29
Sound Pressure Indoor - Heat - Hi / Med / Lo dB(A) 45 / 32 / 29
Sound Power Outdoor - Cool - Hi / Med / Lo dB(A) 59 / 48 / 45
Sound Power Outdoor - Heat - Hi / Med / Lo dB(A) 61 / 48 / 45
Air Flow - Cool / Heat L/s 237 / 253
Indoor Dimensions - H x W x D mm 260 x 575 x 575
Outdoor Dimensions - H x W x D mm 695 x 875 x 320
Weight - Indoor kg 18
Weight - Outdoor kg 43
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm Ø6.35 / Ø12.70
Piping Extension Length Min ~ Max m 3 ~ 30
Elevation Difference m 20
Operating Temperature Range - Outdoor - Cooling °C -10 ~ 46
Operating Temperature Range - Outdoor - Heating °C -15 ~ 24
SKU CSCU-Z60UB4RAW
Brand Panasonic
Shipping Weight 61.0000kg
