Mitsubishi Heavy (MHI) 12.5kW FDUA125AVSXWVH-RC-EXZ3A Ducted Air Conditioning Unit

FDUA125VH / FDCA125VSX-W Mitsubishi Heavy (MHI) Ducted




$4,479.00 Incl GST
$4,071.82 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.
Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Sydney Warehouse. Mon - Fri 8am - 4pm.

Dear Customers, our online sales will close on 23rd December 2024 at 3:00 PM and will recommence on 2nd January 2025 at 8:00 AM.

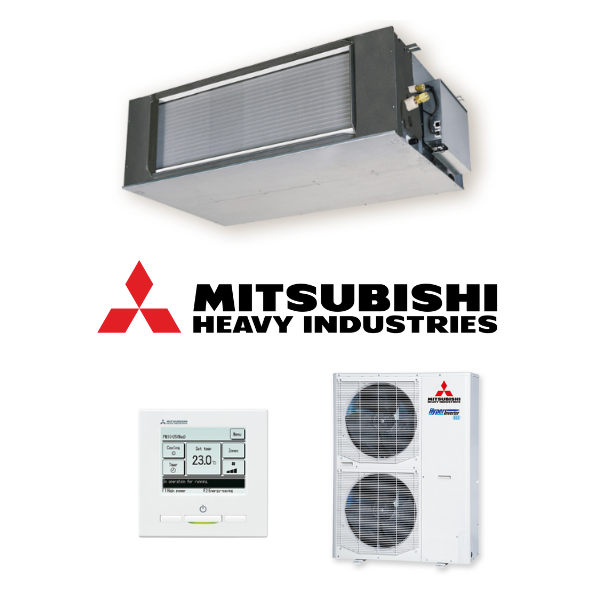

Mitsubishi Heavy Industries FDUA125AVSXWVH-RC-EXZ3A 12.5kW Three Phase Ducted System - Includes Outdoor Unit FDCA125VSX-W

The FDUA series of ducted air conditioning systems are a quiet and discreet climate solution for your entire home. Ranging from 10.0kW up to 20kW, the FDUA series incorporates a range of convenient features and functions including high power mode, silent mode, eco mode and several timer and scheduling functions.

Key Features:

  • Three phase model
  • Automatic operation Mode
  • Weekly / Sleep Timer
  • Silent operation

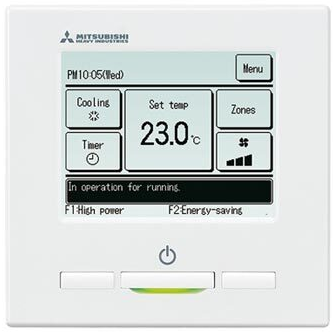

  • Wired and wireless control options
  • High Power Mode for rapid cooling & heating
  • Dry operation to reduce humidity
  • Economy mode to reduce power consumption

(FDUA125AVSXWVH-RC-EXZ3A)

System Name  FDUA100AVSAWVH  FDUA125AVSXWVH  FDUA140AVSXWVH  FDUA160AVSAWVH  FDUA200AVSAWVH  FDUA250AVSAWVH

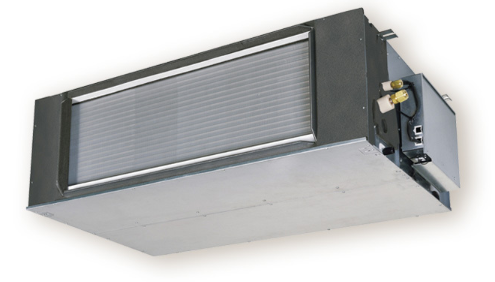

Indoor Unit  FDUA100VH  FDUA125VH  FDUA140VH  FDUA160VH  FDUA200VH  FDUA250VH
Outdoor Unit  FDCA100VSA-W  FDCA125VSX-W  FDCA140VSX-W  FDCA160VSA-W  FDCA200VSA-W  FDCA250VSA-W
Power Supply  3 Phase, 380 ~ 415V, 50Hz
Cooling Capacity (kW)  10.0  12.5  14.0  16.0  20.0  23.5
Heating Capacity (kW)  11.2  14.0  16.0  18.0  22.4  28.0
Rated Power Input (Cool/Heat) (kW)  3.05 / 2.87  3.83 / 3.86  4.02 / 4.19  4.68 / 4.60  5.78 / 5.44  7.70 / 7.70
EER/COP  3.28 / 3.90  3.26 / 3.80  3.48 / 3.82  3.42 / 3.91  3.46 / 4.12  3.16 / 3.67
Duct Sizes (Supply/Return) (mm)  348 x 898 / 348 x 898  298 x 1064 / 2 X dia400  250 x 1450 / 250 x 1450
Max External Static Pressure (Pa)  200  150  200
Refrigerant Type/Amount (kg)  R32 / 3.3  R32 / 4.0  R32 / 5.1
Max Pipe Length (m)  50  100  70
Max Level Difference (m)  I.D.U Higher 15 / O.D.U Higher 50  I.D.U Higher 15 / O.D.U Higher 30  I.D.U Higher 15 / O.D.U Higher 50
Indoor Dimensions (HxWxD) (mm)  398 x 1150 x 650  398 x 1450 x 930  379 x 1600 x 893
Outdoor Dimensions (HxWxD) (mm)  845 x 970 x 370  1300 x 970 x 370  1505 x 970 x 370
Indoor Weight (kg)  54  52  66  88
Outdoor Weight (kg)  78  99  145
Pipe Sizes (mm) (Liquid/Gas)  9.52 / 15.88  12.7 / 22.2
SKU FDUA125AVSXWVH-RC-EXZ3A
Brand Mitsubishi Heavy Industries (MHI)
Shipping Weight 151.0000kg
Unit Of Measure ea

Warranty

Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
