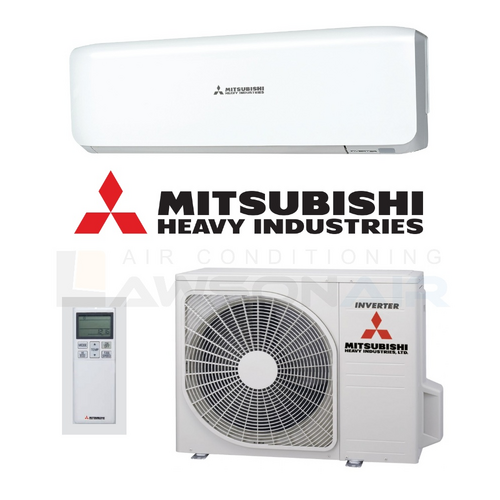

Mitsubishi Heavy Industries SRK50ZSA-W 5.0 kW Reverse Cycle Split System- Includes Outdoor Unit SRC50ZSA-W
With a stylish and modern design as well as all the advanced features and functions that the Avanti series is known for, the 5.0kW Avanti split system is ideal for heating and cooling medium-sized rooms such as a main bedroom, medium-sized living room, or dining room.
Features:
- Modern and stylish design
- 3D Auto airflow for effective and even air distribution
- Allergen clear system to capture and eliminate allergens
- Energy-efficient R32 refrigerant
- Optional Wi-Fi control
(SRK50ZSA-W-Set)

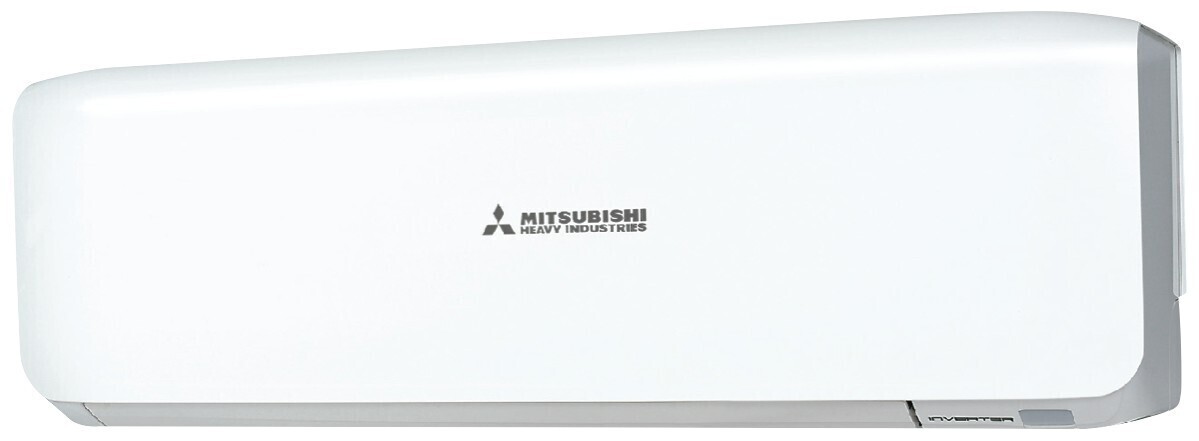

| Indoor Unit |
SRK50ZSA-W |

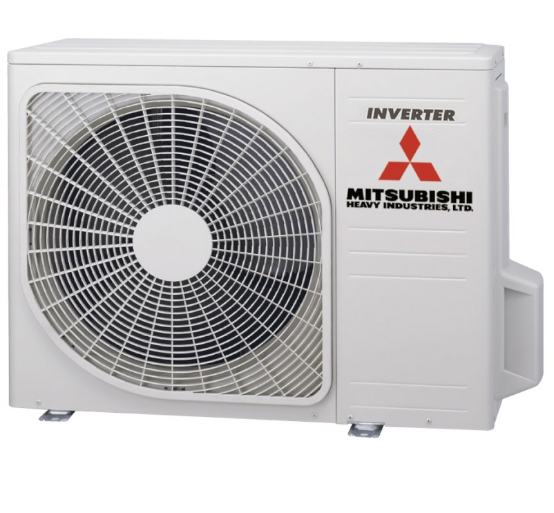

| Outdoor Unit |
SRC50ZSA-W |
| Power Supply |
1 Phase, 220 ~ 240v, 50Hz |
| Rated Capacity |
| Cool (kW) |
5.0 |
| Heat (kW) |
5.8 |
|
| Capacity Range |
| Cool (kW) |
1.2 - 5.5 |
| Heat (kW) |
1.2 - 6.6 |
|
| Power Input (Rated) |
| Cool (kW) |
1.39 |
| Heat (kW) |
1.49 |
|
| Running Current |
| Cool (A) |
5.90 |
| Heat (A) |
6.30 |
|
| EER/COP |
3.60 / 3.89 |
| Energy Star Ratings |
| Cool |
3.5 / 3.0 / 3.0 |
| Heat |
3.5 / 2.5 / 2.0 |
|
| Dimensions (HxWxD) |
| Indoor (mm) |
290 x 870 x 230 |
| Outdoor (mm) |
640 x 871 x 290 |
|
| Weight |
| Indoor (kg) |
10 |
| Outdoor (kg) |
43.5 |
|
| Refrigerant Type |
R32 |
| Refrigerant Amount |
(kg) |
1.05 |
| Pre-Charged to Pipe |
(m) |
15 |
| Max Pipe Length |
(m) |
25 |
| Max Level Difference |
| Indoor Higher (m) |
15 |
| Outdoor Higher (m) |
15 |
|
| Pipe Sizes |
| Liquid (mm) |
6.35 |
| Gas (mm) |
12.70 |
|
| Connection Type |
Flare |
| Indoor Airflow Rate |
| Cool (l/s) |
213 / 175 / 113 / 93 |
| Heat (l/s) |
253 / 198 / 152 / 113 |
|
| Indoor Sound Pressure Level (H/SL) |
|
| Outdoor Sound Pressure Level (H/SL) |
|
| Outdoor EPA Sound Power Level (H) |
|
| SKU |
SRK50ZSA-W-Set |
| Brand |
Mitsubishi Heavy Industries (MHI) |
| Shipping Weight |
53.5000kg |
| Shipping Cubic |
0.219686600m3 |
