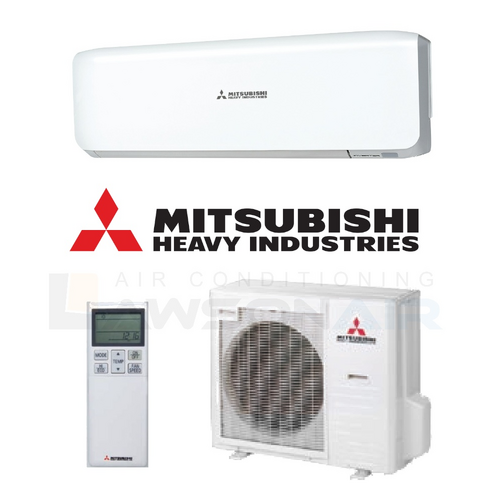

Mitsubishi Heavy (MHI) 7.1kW SRK71ZRA-W-Set Split Air Conditioning System
SRK71ZRA-W / SRC71ZRA-W Mitsubishi Heavy (MHI) Split
$1,759.09 Excl GST
.jpg)
This product has been superseded by DXK24ZRA-W
Mitsubishi Heavy Industries SRK71ZRA-W 7.1 kW Reverse Cycle Split System- Includes Outdoor Unit SRC71ZRA-W
Ideal for a large living or dining room or sitting room.
Features:
- Advanced jet air technology delivering long reach airflow
- Allergen clear system to capture and eliminate allergens

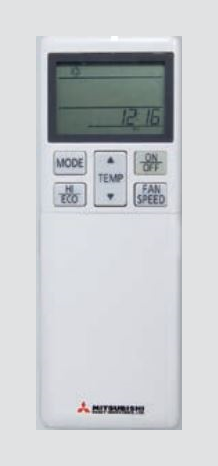

- Wide range of convenient timer functions
- Energy efficient R32 refrigerant
- Optional Wi-Fi control
(SRK71ZRA-W-Set)

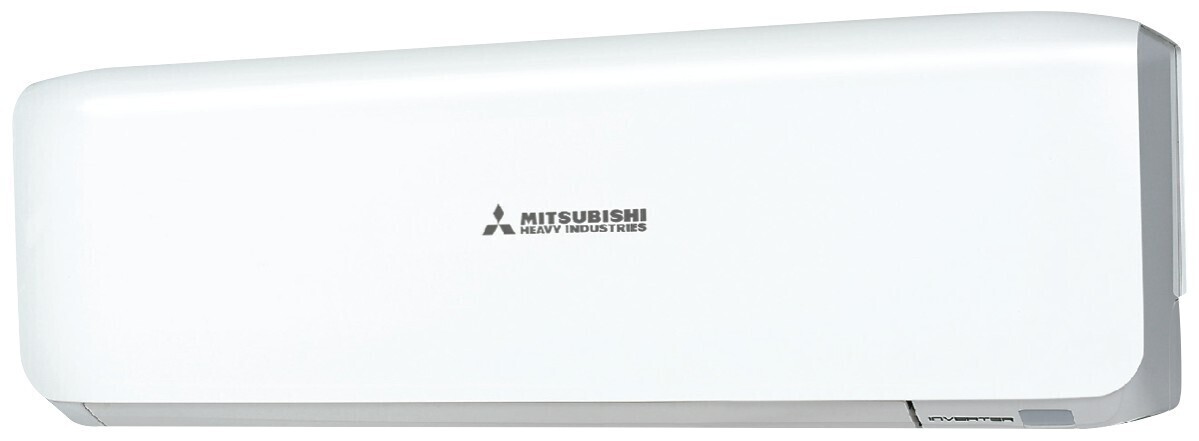

| Indoor | SRK71ZRA-W | ||

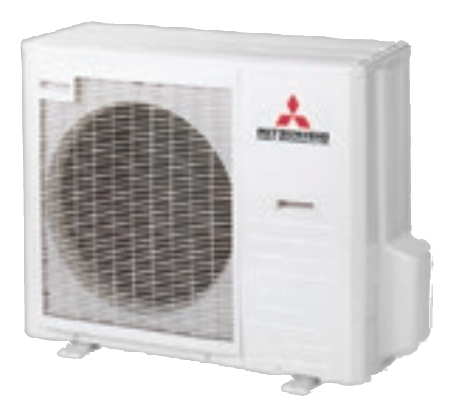

| Outdoor | SRC71ZRA-W | ||
| Power Suppply | 1 Phase 220-240V 50Hz | ||
| Capacity | Cooling T1 | kW | 7.1 (2.3 - 8.3) |
| Heating H1 | 8.0 (2.0 - 10.9) | ||
| Input | Cooling T1 | kW | 1.84 (0.48 - 2.4) |
| Heating H2 | 2.02 (0.4 - 3.4) | ||
| Max running current | A | 17 | |
| Energy Label | Cooling T1 | Stars | 3 |
| Heating T1 | 3 | ||
| EER | Cooling T1 | 3.86 | |
| COP | Heating H1 | 3.96 | |
| Sound Power Level (JIS C9612) | Cooling (Outdoor) | dB(A) | 65 |
| Heating (Outdoor) | 63 | ||
| Sound Pressure Level (JIS C9612) | Cooling (Indoor) | dB(A) | 43 - 40 - 36 - 24 |
| Heating (Indoor) | 46 - 39 - 35 - 28 | ||
| Silent mode sound pressure level | Cooling (Outdoor) | dB(A) | 43 |
| Heating (Outdoor) | 41 | ||
| Airflow | Cooling (Indoor) | l/s | 342 - 310 - 270 - 174 |
| Heating (Indoor) | 425 - 330 - 288 - 222 | ||
| External dimensions (HxWxD) | Indoor | mm | 339 x 1197 x 262 |
| Outdoor | 750 x 880 (+88) x 340 | ||
| Net weight | Indoor | kg | 15.5 |
| Outdoor | 58 | ||
| Refrigerant Piping | Liquid Line | mm | Ø6.35 |
| Gas Line | Ø15.88 | ||
| Connection Method | Flare Connection | ||
| Refrigerant R32 | Quantity | kg | 1.6 |
| Attached length of piping | m | Liquid line : 0.78 / Gas line : 0.71 | |
| Pre charged to pipe length | m | 15 | |
| Additional charge | g / m | 25 | |
| Maximum charge | kg | 1.975 | |
| Outdoor air temperature | Cooling | C | -15 to 46 |
| Heating | C | -15 to 24 | |
| SKU | SRK71ZRA-W-Set |
| Brand | Mitsubishi Heavy Industries (MHI) |
| Shipping Weight | 73.5000kg |
Warranty
Mitsubishi Heavy Industries Air-Contioners offers up to a 5-year parts and labour warranty for all of their air conditioners. Note your product might not be eligable for the full 5-year warranty. Refer to their terms and conditions.
