Mitsubishi Electric Under Ceiling PCAZM71KAVKIT 7.1kW 1 Phase Power Inverter Cassette Air Conditioning System
PCA-M71KA2/PUZ-ZM71VHA2-A Mitsubishi Electric Cassette
$3,827.27 Excl GST

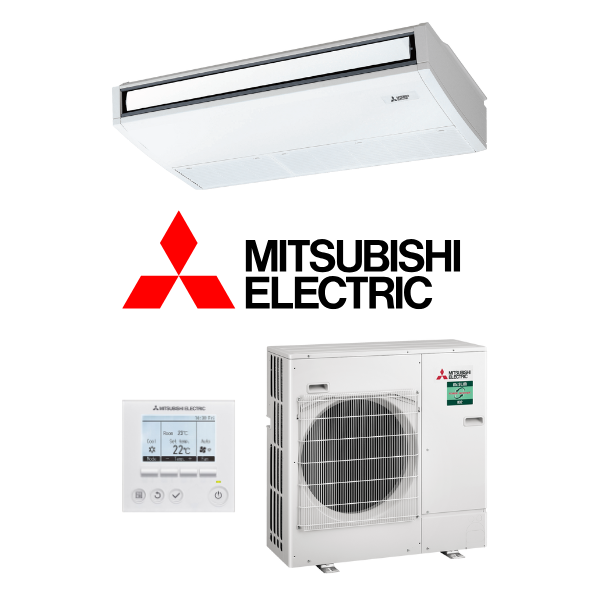

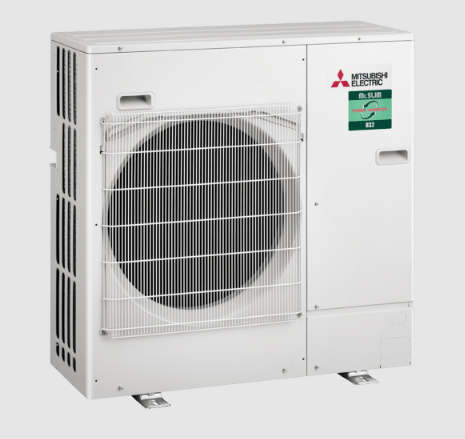

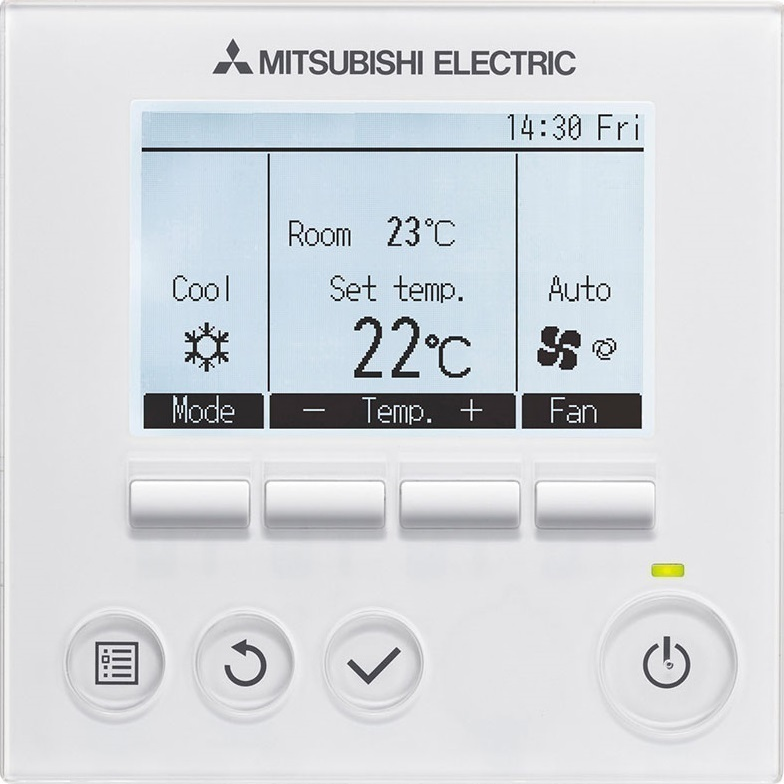

Mitsubishi Electric PCAZM71KAVKIT 7.1kW Single Phase Under Ceiling Cassette Air Conditioner (Power Inverter) - Includes High Performance Outdoor Unit and PAR-41MAAM Wired Wall Controller

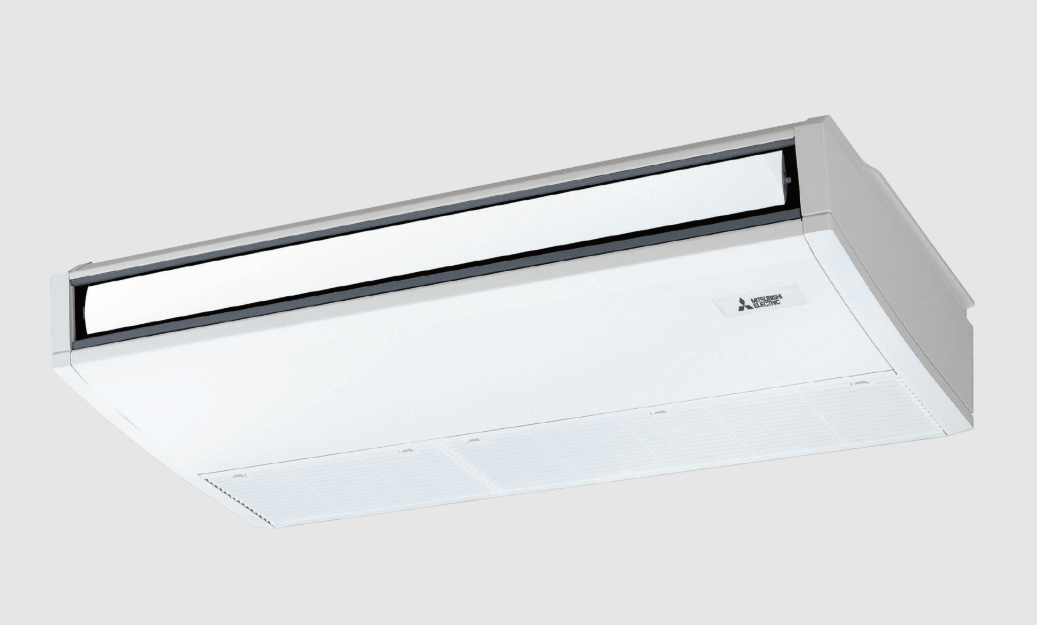

The Mitsubishi Electric PCA-M-KA Series are ceiling suspended air conditioners with capacities ranging from 5 to 13.5 kW. These AC's are engineered for superior climate control in commercial spaces such as schools, shops, and restaurants. Featuring under ceiling mounting, automatic air-speed adjustment, and high/low ceiling modes, it offers adaptable and efficient temperature management across various commercial environments.
Key Features:
- Under Ceiling Mounting
- Automatic Air-Speed Adjustment
- High/Low Ceiling Mode
- Fresh Outside-Air Intake
- Optional 7 Day Wired Controller
- R32 Refrigerant
(PCAZM71KAVKIT)
System | PCAZM71HAVKIT | PCAZM71KAVKIT | PCAZM100KAVKIT | PCAZM125KAVKIT | PCAZM140KAVKIT | |
---|---|---|---|---|---|---|
Indoor Unit | PCA-M71HA2 | PCA-M71KA2 | PCA-M100KA2 | PCA-M125KA2 | PCA-M140KA2 | |
Outdoor Unit | PUZ-ZM71VHA2-A | PUZ-ZM71VHA2-A | PUZ-ZM100VKA2-A.TH | PUZ-ZM125VKA2-A.TH | PUZ-ZM140VKA2-A.TH | |
Cooling Capacity Rated/Min-Max | kW | 7.1 (3.3-8.1) | 7.1 (3.3-8.1) | 10.0 (4.9-11.4) | 12.5 (5.5-14.0) | 13.5 (6.2-15.3) |
Heating Capacity Rated/Min-Max | 7.6 (3.5-10.2) | 8.0 (3.5-10.2) | 11.2 (4.5-14.0) | 14.0 (5.0-16.0) | 16.0 (5.7-18.0) | |
Power Supply | 1 Phase, 230V, 50Hz | |||||
EER/COP | 3.51 / 3.50 | 3.90 / 3.72 | 3.92 / 3.41 | 3.31 / 3.31 | 3.25 / 3.38 | |
Total Input Rated Cool/Heat | kW | 2.02 / 2.17 | 1.82 / 2.15 | 2.55 / 3.28 | 3.77 / 4.22 | 4.15 / 4.72 |
Rated Running Current Cool/Heat | A | 8.9 / 8.72 | 8.3 / 10.06 | 11.6 / 14.3 | 17.12 / 19.46 | 18.07 / 21.4 |
Sound Pressure Level In (Lo/Mid2/Mid1/Hi) Cooling | dBA | 35 - 37 - 39 - 41 | 37 - 39 - 41 - 43 | 39 - 41 - 43 - 45 | 41 - 43 - 45 - 48 | |
Sound Pressure Level Out (PWL) Cooling | 47(67) | 49(69) | 50(70) | |||
Sound Pressure Level In (Lo/Mid2/Mid1/Hi) Heating | 35 - 37 - 39 - 41 | 37 - 39 - 41 - 43 | 39 - 41 - 43 - 45 | 41 - 43 - 45 - 48 | ||
Sound Pressure Level Out (PWL) Heating | 51(70) | 47(67) | 49(69) | 50(70) | ||
Air Volume (In) Lo/Mid2/Mid1/Hi Cooling | L/s | 267 - 283 - 300 - 333 | 367 - 400 - 433 - 467 | 383 - 417 - 450 - 483 | 400 - 433 - 483 - 533 | |
Air Volume (In) Lo/Mid2/Mid1/Hi Heating | 267 - 283 - 300 - 333 | 367 - 400 - 433 - 467 | 383 - 417 - 450 - 483 | 400 - 433 - 483 - 533 | ||
Max Running Current | A | 19.43 | 19.42 | 28.15 | 28.26 | 29.40 |
Indoor Unit Dimensions HxWxD | mm | 280 x 1136 x 650 | 230 x 1280 x 680 | 230 x 1600 x 680 | ||
Outdoor Unit Dimensions HxWxD | 943 x 950 x 330(+25) | 1338 x 1050 x 330(+40) | ||||
Indoor Unit Weight | kg | 42 | 32 | 37 | 38 | 40 |
Outdoor Unit Weight | 70 | 113 | ||||
Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | ||||
Max. Piping Length/Height | m | 50 / 30 | 75 / 30 | |||
Outdoor Operating Range Cool/Heat | C | -15 to 52 / -20 to 21 | ||||
Pre-Charge R32 Refrigerant | kg | 2.18(30m) | 4.0(30m) | |||
Additional Refrigerant | g/m | 40 |
SKU | PCAZM71KAVKIT |
Brand | Mitsubishi Electric |
Shipping Weight | 102.0000kg |
Shipping Cubic | 0.518219000m3 |
Unit Of Measure | ea |
