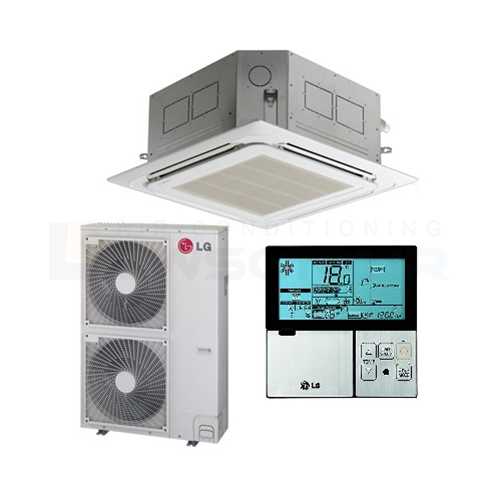

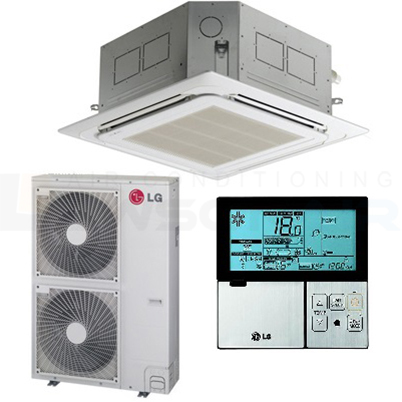

LG UT48Q2 13.4kW Cassette
Cassette Air Conditioner (is no longer available)
$3,980.91 Excl GST
LG UT48Q2 13.4kW Cassette is no longer available.
4 Vane Independent Operation
Vane angle control satisfies both users who like direct wind or indirect wind and it also reduces cold air drafts. Improved wide vanes reduce dead bands and provide better air and temperature distribution. One motor per vane is adopted to control each of the four vanes independently, freely controlling air currents according to requirements.
BLDC motor, low indoor noise with high efficiency turbo fan:
Improved outlet & airflow design
Removal of unnecessary noise through the high efficiency turbo fan
Resonance noise removal by anti vibration design and BLDC motor
High ceiling operation
Depending on the height of the installation, LG air conditioners allow you to vary the speed of the indoor fan motor. When installation is low, the RPM can be reduced but it can be increased when the installation is high to ensure optimum comfort levels. The speed can be adjusted via the slide switch on the back of the LCD wired remote.

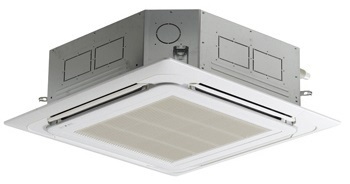

Slim and Compact size
The indoor unit with its slim and compact size enables successful installation in confined spaces.

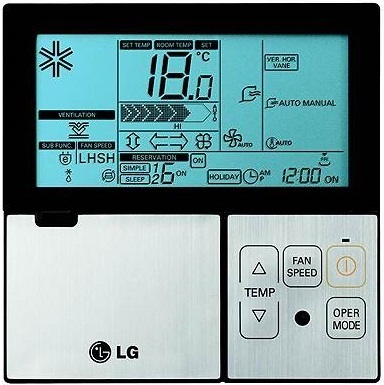

You can set on/off programming options on your air conditioning system for a period of one week:
24-Hour On/Off Timer in 1 hour intervals
Test Run Mode
Self Diagnosis Function
3-Step Fan Speed Selection
Room Temperature Display
LG air conditioners feature anti corrosive coating on the surface of the heat exchanger in the outdoor unit. The coating is designed to protect air conditioners from pollution and corrosive conditions and assists in the durability and longevity of the unit. It is the perfect solution for Australian outdoor conditions.
All Product Specifications supplied by LG Electronics as correct at time of publishing. Specifications may change without prior notice. Customers are advised to check with the manufacturer before purchase. Actual product may differ to that depicted for ongoing product development.
|Power Supply||Ø / V / Hz||220 - 240 / 1 / 50|
|Capacity||Cooling||kW||5.5 - 13.4 - 16.0|
|Heating||kW||6.1 - 15.5 - 18.0|
|Fan||Motor Output x Number of Unit||W x No.||135.8 x 1|
|Air Flow Rate (H / M / L)||L/s||550 / 466 / 366|
|Heat Exchanger||#1_Coil Row x Columnx FPI||mm||(2 x 12 x 19) x 1|
|#1_Coil Row x Columnx FPI||mm||(1 x 10 x 19) x 1|
|Dimensions||Indoor (W x H x D)||mm||840 x 288 x 840|
|Decorative Panel (WxHxD)||mm||950 x 25 x 950|
|Outdoor (W x H x D)||mm||950 x 1,380 x 330|
|Dehumidification Rate||L / h||4.4|
|Power Supply Cable (includes earth)||No.x mm²||3C x 5.0|
|Interunit Cable (includes earth)||No.x mm²||4C x 0.75|
|Power and Communication Cable||No.x mm²||4C x 0.75|
|OilCharge||cc x No.||1,300 x 1|
|Additional Charging Volume||g / m||40|
|Heat Exchange||(Rows x Columns x Fins per inch) x No.||mm||(2 x 32 x 14) x 2|
|Fan Motor||Output||W x No.||124 x 2|
|Fan Motor||Air Flow Rate||L / s||916 x 2|
|Sound Level (Max / H / M / L )||dB(A)||68 / 45 / 41 / 38|
|Sound Pressure Level||Cooling||dB(A)||52|
|Drain (O.D. / I.D.)||mm||ø32.0 / 25.0|
|Max Piping Length||m||75|
|Piping Elevation Difference||IDU-ODU||m||30|
|Operation Range |
|Cooling||°C DB||-15 to 48|
|Heating||°C DB||-18 to 18|
