Daikin FDYAN71 7.1kW 3 Phase Ducted Unit

FDYAN71AV1/RZA71CY1 Standard Ducted Air Conditioner




$3,616.00 Incl GST
$3,287.27 Excl GST
In Stock

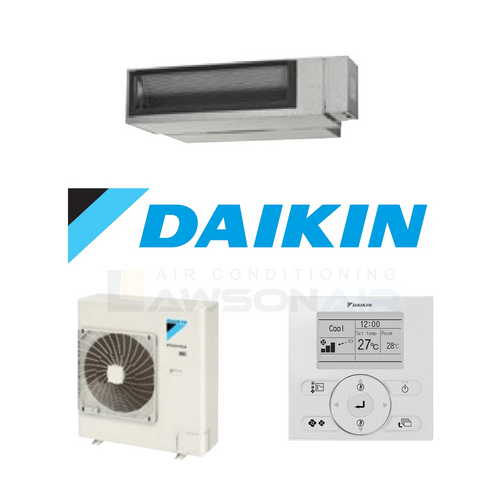

Daikin FDYAN71 7.1kW 3 Phase Ducted Unit  -  Includes BRC1E63 Wired Controller

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.

Engineered to deliver a compact and efficient design, the new Standard Inverter series is ideal for installation into the tight roof space of any modern home.



Features:

  • Heating or cooling your entire home
  • Small to large houses
  • Houses with limited roof space and outdoor space


Upgrade to iZONE Smart Home - WiFi Ducted Zone Controller

Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.

Start with one now....add more later!!





Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.

(FDYAN71A-CY)

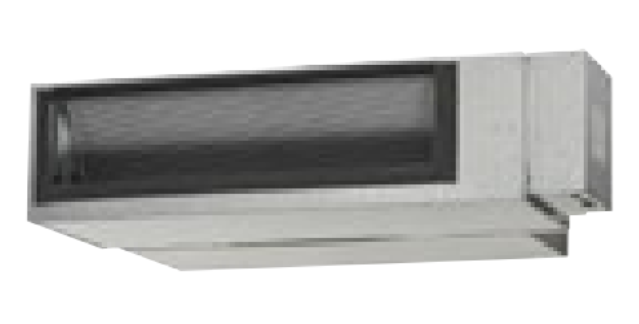

INDOOR UNIT FDYAN71AV1

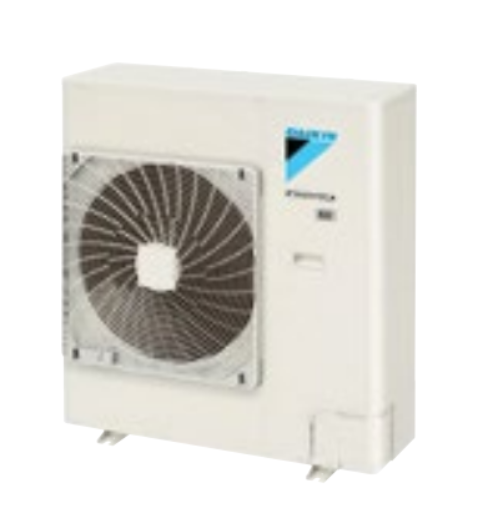

OUTDOOR UNIT RZA71CY1
Rated Capacity Cool (kW) 7.1
Heat (kW) 7.5
Capacity Range Cool (kW) 3.2-8.0
Heat (kW) 3.5-9.0
Power Input (Rated) Cool (kW) 2.20
Heat (kW) 1.93
E.E.R./C.O.P. Cool/Heat 3.23/3.89
Air Flow Rate (Rated) I/S 425
Indoor Sound Level (@1.5m) dBA 37.3/40.5
Piping Length (m) 50
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 300x1210x900
Outdoor (mm) 990x940x320
Weight Indoor(kg) 40
Outdoor(kg) 69
Power Supply V/Hz 3 Phase, 380-415V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
Gas (mm) 15.9 (Flared)
Drain (mm) ID 25 / OD 32
Supply Air Opening mm (HxW, Flange) 185x852
Return Air Opening mm (Oval) 1x400 (Oval)
Outdoor Operating Range Cool (°CDB) - 5 to 46
Heat (°CWB) - 15 to 16
EPA Sound Power Level dBA 67
Outdoor Sound Level (H) @1m Pressure dBA (C/H) 48/50
SKU FDYAN71A-CY
Brand Daikin
Shipping Weight 109.0000kg
Shipping Cubic 0.624492000m3
