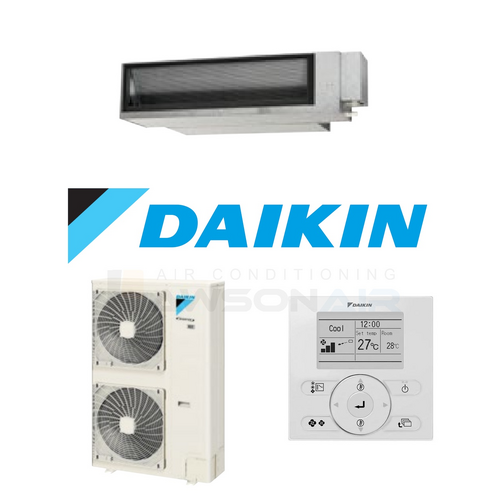

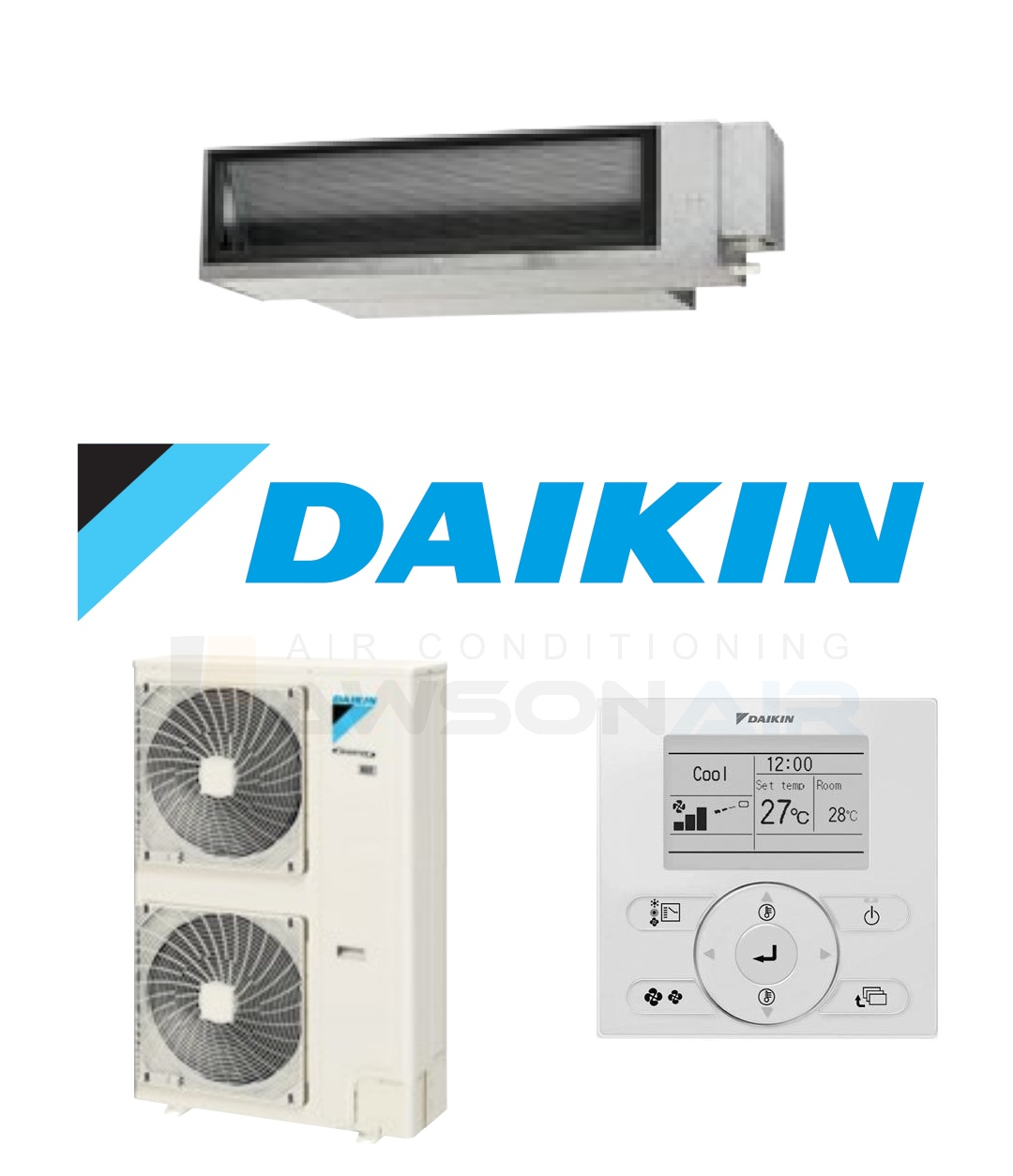

Daikin FDYAN140 14.0kW 3 Phase Ducted Unit
FDYAN140AV1/RZA140CY1 Standard Ducted Air Conditioner
$4,651.82 Excl GST

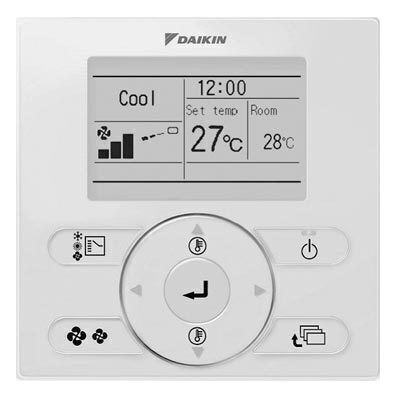

Daikin FDYAN140 14.0kW 3 Phase Ducted Unit - Includes BRC1E63 Wired Controller
Ducted Air Conditioner - Inverter Reverse Cycle System

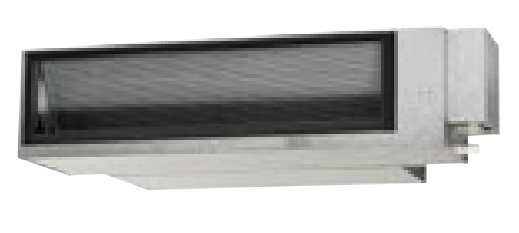

Daikin Ducted Systems provide discreet air conditioned comfort. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.
Engineered to deliver a compact and efficient design, the new Standard Inverter series is ideal for installation into the tight roof space of any modern home.
- Heating or cooling your entire home
- Small to large houses
- Houses with limited roof space and outdoor space
Your smart home automation system begins here. Air Conditioning, LED Lighting, Garage Door, Security, Garden Sprinkler System.....the list goes on.
Start with one now....add more later!!
Alternative option to MyAir, MyLights, C-BUS, Fibaro, Control4, Atmos, Nero, Clipsal Iconic smart home automation product suppliers.
|Rated Capacity||Cool (kW)||14.0|
|Capacity Range||Cool (kW)||5.0-16.0|
|Power Input (Rated)||Cool (kW)||4.30|
|Air Flow Rate (Rated)||I/S||900|
|Indoor Sound Level (@1.5m)||dBA||46.6/47.9|
|Indoor Fan Speeds||H/M/L|
|Dimensions (HxWxD)||Indoor (mm)||360x1520x935|
|Power Supply||V/Hz||3 Phase, 380-415V, 50Hz|
|Compressor Type||Hermetically Sealed Swing Type|
|Pipe Sizes||Liquid (mm)||9.5 (Flared)|
|Gas (mm)||15.9 (Flared)|
|Drain (mm)||ID 25 / OD 32|
|Supply Air Opening||mm (HxW, Flange)||245x1152|
|Return Air Opening||mm (Oval)||2x400 (Oval)|
|Outdoor Operating Range||Cool (°CDB)||- 5 to 46|
|Heat (°CWB)||- 15 to 16|
|EPA Sound Power Level||dBA||73|
|Outdoor Sound Level (H) @1m||Pressure dBA (C/H)||54/56|
