Toshiba RAV-SM304MUT-E/ RAV-SP304ATP-A 2.5kW Compact Cassette

RAV-SM304MUT-E/RAV-SP304ATP-A 1PH Cassette Air Cond

$2,005.00 Incl GST
$1,822.73 Excl GST
Sold Out

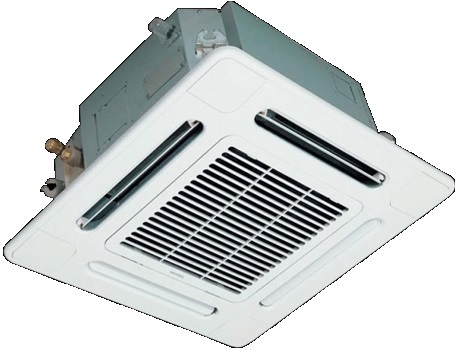

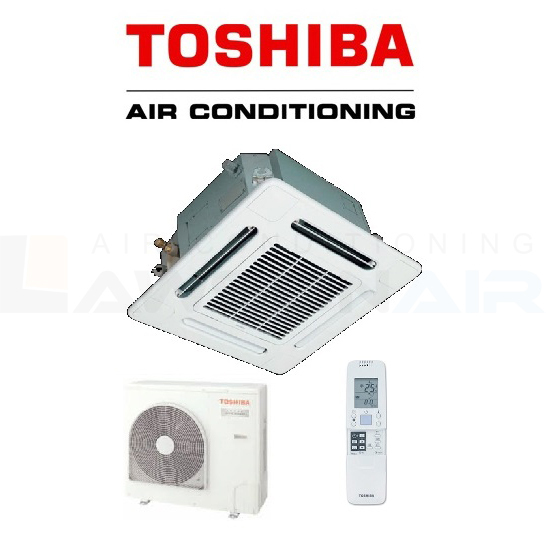

Toshiba Super Digital RAV-SM304MUT-E 2.5kW Compact Cassette - Includes Outdoor Unit RAV-SP304ATP-A

This compact unit (575mm x 575mm) fits perfectly into ceilings and matches standard architectural modules, without the need to cut ceiling tiles. The compact & stylisg panel design is ideal for fashionable restaraunts and offices. The louvers fold tightly against the ceiling when its operation stops. Available for ceilings up to 3.5.


  • Long drain pump of 850mm.
  • The drain-check viewing cavity makes it possible to view the drain pan.
  • The slim design is only 268mm in height allowing it to blend into the surrounding environment neatly.


Indoor RAV-SM304MUT-E
Outdoor RAV-SP304ATP-A
Refrigerant Type   R410A
Power Suppply Volts / Phase / Hz 220-240 / 1 / 50
Cooling Capacity - Rated kW 2.5
Capacity - Range kW 0.9 - 3.0
Efficiency (Rated) EER 4.24
Power Input (min - rated - max) kW 0.25 - 0.59 - 0.82
Operating Current (rated) A 2.97
Heating Capacity - Rated kW 3.4
Capacity - Range (min - max) kW 0.8 - 4.5
Efficiency (rated) COP 4.47
Power Input (min - rated - max) kW 0.17 - 0.76 - 1.40
Operating Current (rated) A 3.70
Indoor Unit Dimensions (HxWxD) mm 268 x 575 x 575
Net Weight kg 16
Airflow Volume (H/L) L/s 177.78 / 122.22
Fan Motor Output W 60
Sound pressure (H/L) - 1m dBA 40 / 31
Sound Power (H/L) dBA 55 / 46
Outdoor Unit Dimensions (HxWxD) mm 550 x 780 x 290
Net Weight kg 33
Compressor Type   DC Twin Rotary
Fan Motor Output W 43
Cooling Operating Noise (Sound Pressure) (H) - 1m dBA (@spl) 46
Cooling Operating Noise (Sound Power) (H) dBA (@swl) 61
Heating Operating Noise (Sound Pressure) (H) -1m dBA (@spl) 47
Heating Operating Noise (Sound Power) (H) dBA (@swl) 62
Cooling Usable Temperature Range °CDB -15 to 46
Heating Usable Temperature Range °CWB -15 to 24
Pipe Size Liquid Line Ø mm 6.4
Gas Line Ø mm 9.5
Coupler Style   Flaring
Drain (Inside Diameter) Ø mm VP25
Maximum Length m 20
Chargeless Length m 15
Maximum Height Difference m 10
Brand Toshiba
Shipping Weight 49.0000kg
