Toshiba RAV-SM404MUT-E/ RAV-SP404ATP-A 3.6kW Compact Cassette
RAV-SM404MUT-E/RAV-SP404ATP-A 1PH Cassette Air Cond
$2,213.00 Incl GST
$2,011.82 Excl GST
Sold Out
$2,011.82 Excl GST
.jpg)

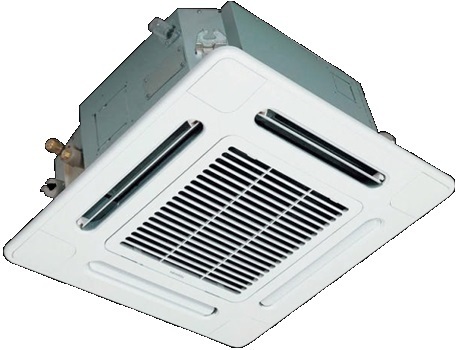

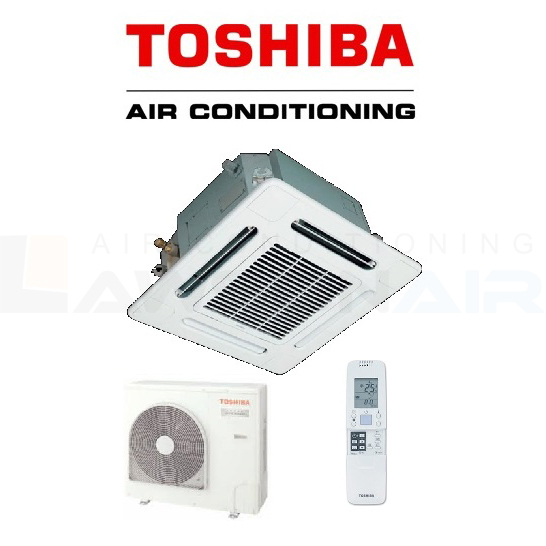

Toshiba RAV-SM404MUT-E 3.6kW Compact Cassette - Includes Outdoor Unit RAV-SP404ATP-A
This compact unit (575mm x 575mm) fits perfectly into ceilings and matches standard architectural modules, without the need to cut ceiling tiles. The compact & stylisg panel design is ideal for fashionable restaraunts and offices. The louvers fold tightly against the ceiling when its operation stops. Available for ceilings up to 3.5.
Features:
- Long drain pump of 850mm.
- The drain-check viewing cavity makes it possible to view the drain pan.
- The slim design is only 268mm in height allowing it to blend into the surrounding environment neatly.
(D-RAV-SM404MUT-E)
| Indoor | RAV-SM404MUT-E | ||
| Outdoor | RAV-SP404ATP-A | ||
| Refrigerant Type | R410A | ||
| Power Suppply | Volts / Phase / Hz | 220-240 / 1 / 50 | |
| Cooling | Capacity - Rated | kW | 3.6 |
| Capacity - Range | kW | 0.9 - 4.0 | |
| Efficiency (Rated) | EER | 4.00 | |
| Power Input (min - rated - max) | kW | 0.18 - 0.90 - 2.00 | |
| Operating Current (rated) | A | 4.45 | |
| Heating | Capacity - Rated | kW | 4.0 |
| Capacity - Range (min - max) | kW | 0.8 - 5.0 | |
| Efficiency (rated) | COP | 4.21 | |
| Power Input (min - rated - max) | kW | 0.14 - 0.95 - 1.70 | |
| Operating Current (rated) | A | 4.65 | |
| Indoor Unit | Dimensions (HxWxD) | mm | 268 x 575 x 575 |
| Net Weight | kg | 16 | |
| Airflow Volume (H/L) | L/s | 183.33 / 130.00 | |
| Fan Motor Output | W | 60 | |
| Sound pressure (H/L) - 1m | dBA | 40 / 31 | |
| Sound Power (H/L) | dBA | 54 / 45 | |
| Outdoor Unit | Dimensions (HxWxD) | mm | 550 x 780 x 290 |
| Net Weight | kg | 39 | |
| Compressor Type | DC Twin Rotary | ||
| Fan Motor Output | W | 43 | |
| Cooling Operating Noise (Sound Pressure) (H) - 1m | dBA (@spl) | 49 | |
| Cooling Operating Noise (Sound Power) (H) | dBA (@swl) | 64 | |
| Heating Operating Noise (Sound Pressure) (H) -1m | dBA (@spl) | 50 | |
| Heating Operating Noise (Sound Power) (H) | dBA (@swl) | 65 | |
| Cooling Usable Temperature Range | °CDB | -15 to 46 | |
| Heating Usable Temperature Range | °CWB | -15 to 24 | |
| Pipe Size | Liquid Line Ø | mm | 6.4 |
| Gas Line Ø | mm | 12.7 | |
| Coupler Style | Flaring | ||
| Drain (Inside Diameter) Ø | mm | VP25 | |
| Maximum Length | m | 20 | |
| Chargeless Length | m | 15 | |
| Maximum Height Difference | m | 10 | |
| SKU | D-RAV-SM404MUT-E |
| Brand | Toshiba |
| Shipping Weight | 55.0000kg |
