Rinnai CSN120R 12.0kW 1 Phase Cassette System

CIN120R/DONSR12Z72 Ducted System Air Conditioner




$3,972.00 Incl GST
$3,610.91 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

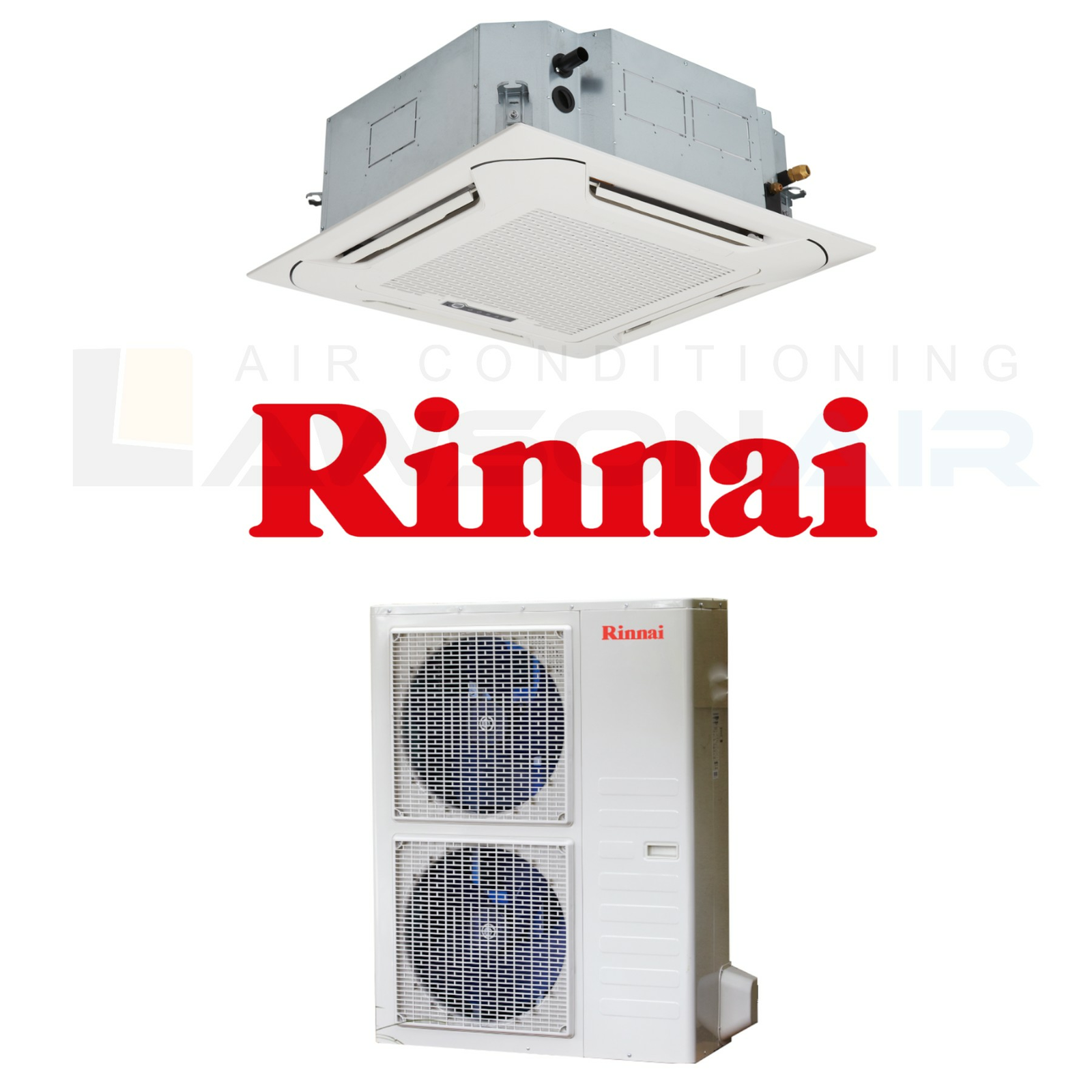

Rinnai CSN120R 12.0kW Cassette System - Includes Outdoor Unit DONSR12Z72

Compact in design, the Rinnai Inverter Cassette  Air Conditioning range is the perfect solution for light commercial applications, such as hotels, restaurants, offices and showrooms. This latest range will assure you total comfort and piece of mind all year round.

Features:

  • High Efficiency DC Inverter
  • External Supplementary Duct Connections
  • 360ยบ Air Flow
  • Programmable Wired Thermostat (optional)



(CSN120R)

System CSN120R

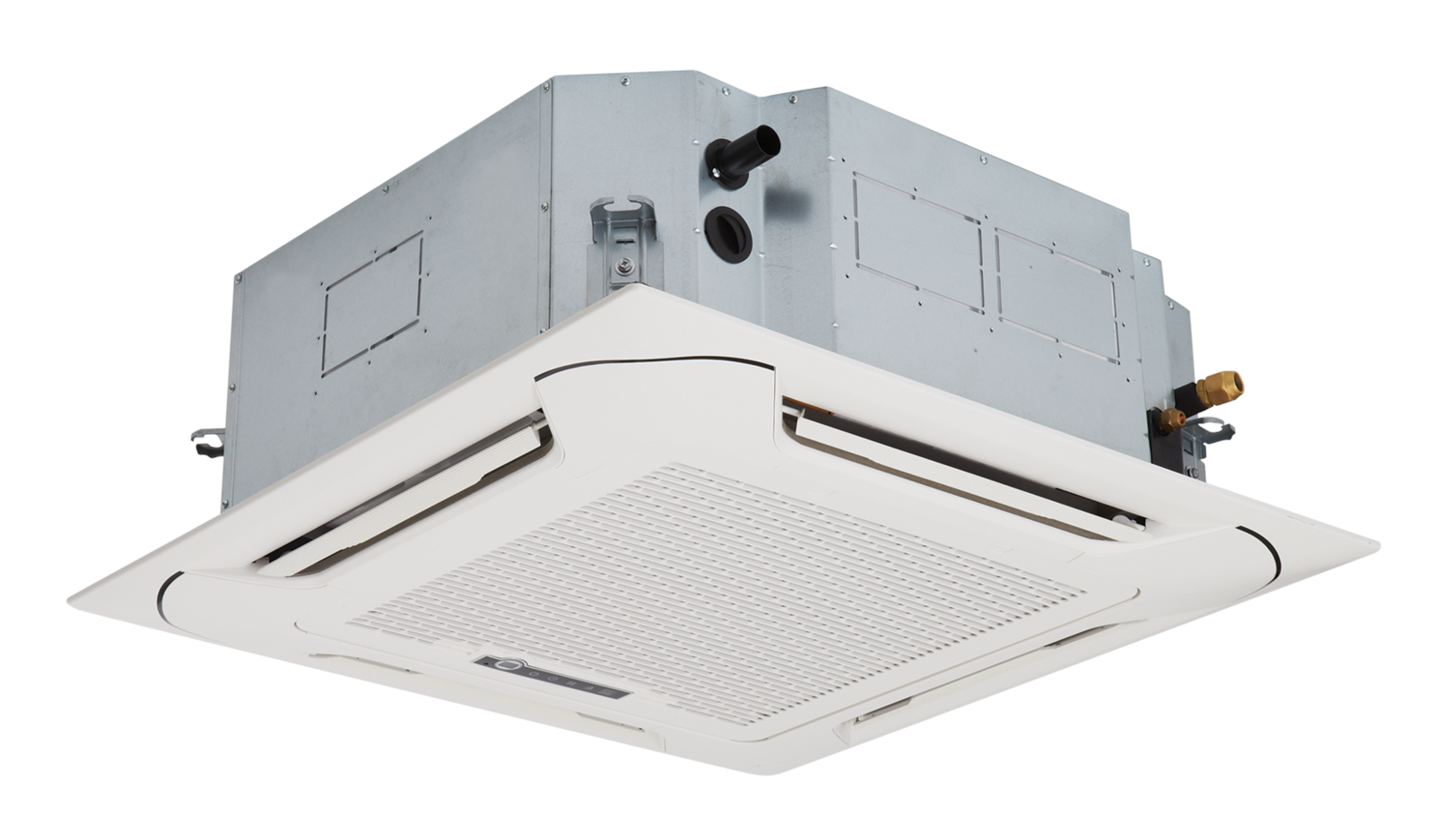

Indoor Unit CIN120R

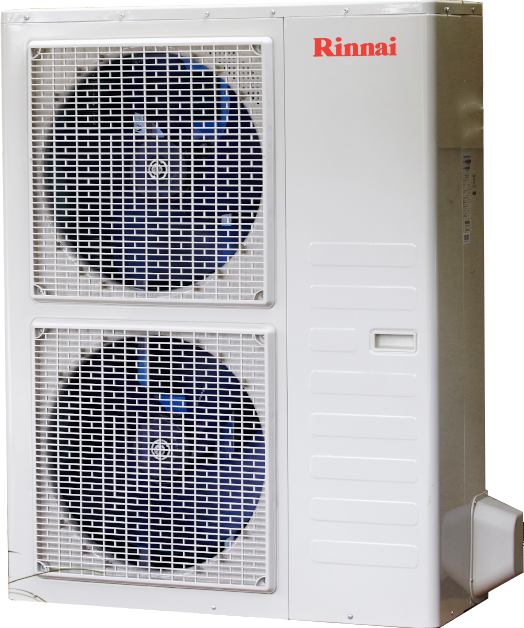

Outdoor Unit DONSR12Z72
Fascia Panel CINFAS
Function kW Cooling + Heating
Cooling Capacity Rated Conditions kW 12.3
Cooling Capacity Range - Min ~ Max kW 5.0 - 15.0
EER w/w 3.31
Cooling Rated Input Current  A 16.1
Heating Capacity Rated Conditions kW 14.2
Heating Capacity Range - Min ~ Max kW 5.2 - 15.6
COP w/w 3.46
Heating Rated Input Current  A 13.1
Electrical Voltage V 220 ~ 240
Power Input - Cool / Heat kW 3.690 / 4.030
Air Flow (Hi / Med / Lo) L/s 639 / 556 / 500
Maximum Input Power W 5500
Maximum Input Current  A 26.0
Starting Current   3.5
Sound Pressure Level @ 1.4m - Hi / Med / Lo dB(A) 54 / 51 / 48
Outdoor Sound Pressure Level @ 1m  dB(A) 62
Outdooor Sound Power Level  dB(A) 71
Indoor Dimensions - H x W x D mm 840 x 840 x 287
Fascia Dimensions - H x W x D mm 950 x 950 x 55
Outdoor Dimensions - H x W x D mm 952 x 415 x 1333
Weight - Indoor kg 32.8
Weight - Fascia kg 8
Weight - Outdoor kg 114
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm 9.52 / 15.1
Pipe Length - Precharged / Maximum  m 15 - 65
Pipe Maximum Vertical Seperation m 30
Charge Adjustment (R410A) g/m 30
SKU CSN120R
Brand Rinnai
Shipping Weight 154.8000kg
Shipping Cubic 0.782485000m3
