Rinnai CSN070R 7.0kW 1 Phase Cassette System

CIN070R/DONSR07Z72 Ducted System Air Conditioner




$2,703.00 Incl GST
$2,457.27 Excl GST
In Stock


Calculate Shipping



Pick Up - $0.00 (ETA: 1 days)
Pick Up from our Brisbane Warehouse. Mon - Fri 8am - 4pm.

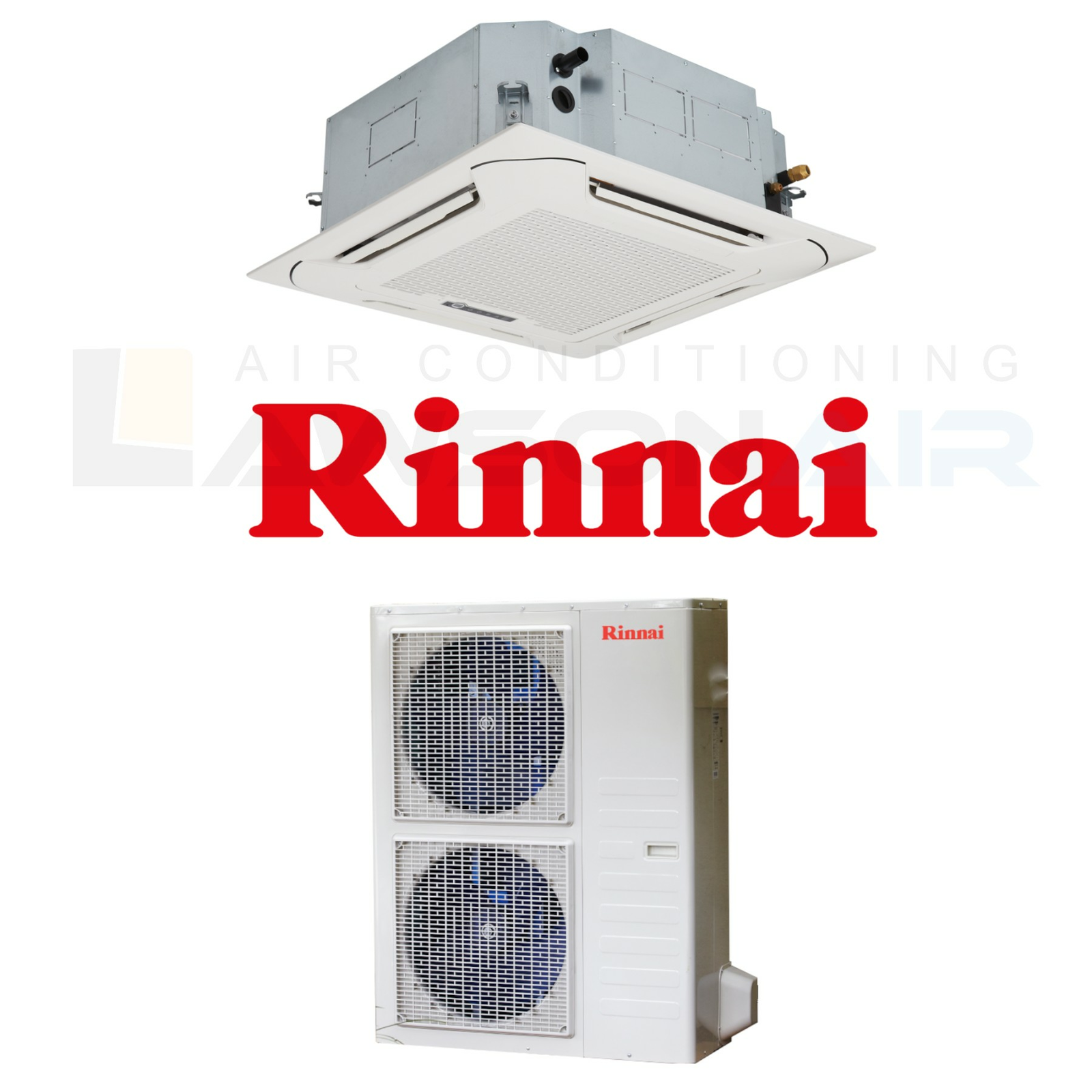

Rinnai CSN070R 7.0kW Cassette System - Includes Outdoor Unit DONSR07Z72

Compact in design, the Rinnai Inverter Cassette  Air Conditioning range is the perfect solution for light commercial applications, such as hotels, restaurants, offices and showrooms. This latest range will assure you total comfort and piece of mind all year round.

Features:

  • High Efficiency DC Inverter
  • External Supplementary Duct Connections
  • 360ยบ Air Flow
  • Programmable Wired Thermostat (optional)



(CSN070R)

System CSN070R

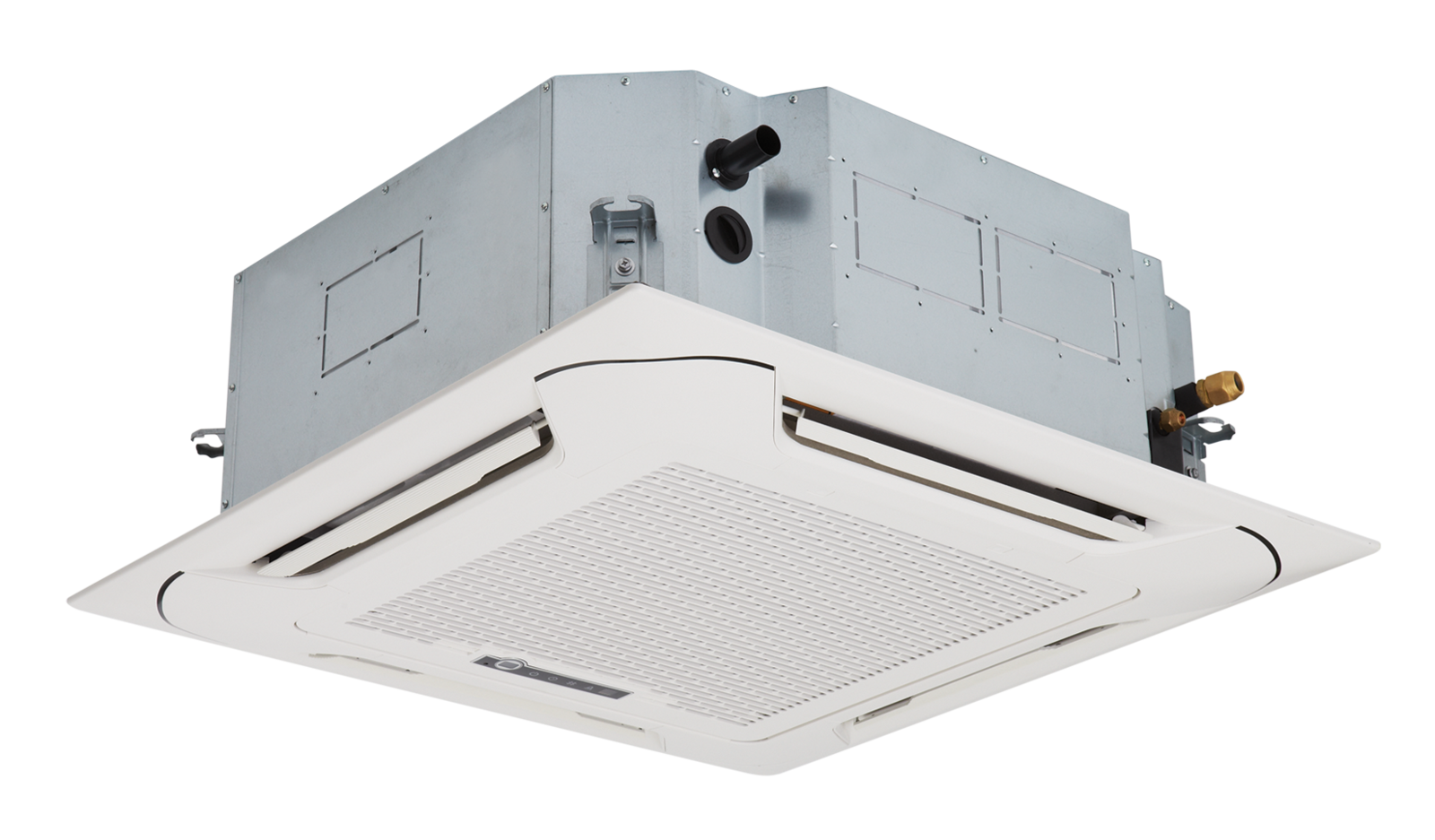

Indoor Unit CIN070R

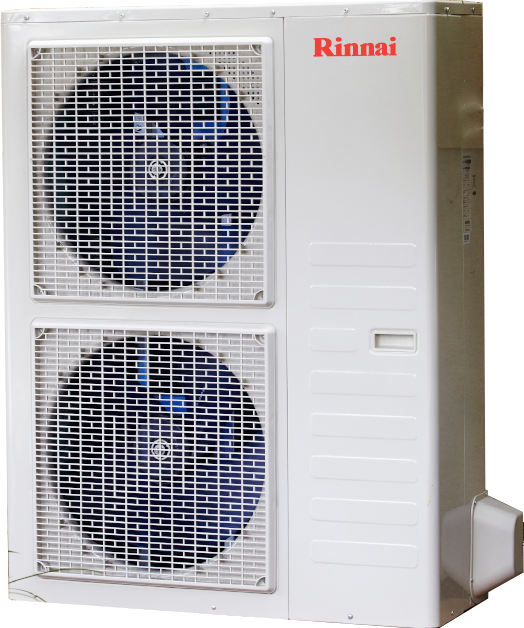

Outdoor Unit DONSR07Z72
Fascia Panel CINFAS
Function kW Cooling + Heating
Cooling Capacity Rated Conditions kW 7.0
Cooling Capacity Range - Min ~ Max kW 2.80 - 8.40
EER w/w 3.26
Cooling Rated Input Current  A 9.4
Heating Capacity Rated Conditions kW 7.7
Heating Capacity Range - Min ~ Max kW 3.00 - 9.00
COP w/w 3.36
Heating Rated Input Current  A 10.0
Electrical Voltage V 220 ~ 240
Power Input - Cool / Heat kW 2.116 / 2.250
Air Flow (Hi / Med / Lo) L/s 439 / 333 / 278
Maximum Input Power W 3000
Maximum Input Current  A 16.0
Starting Current   2.5
Sound Pressure Level @ 1.4m - Hi / Med / Lo dB(A) 49 / 45 / 31
Outdoor Sound Pressure Level @ 1m  dB(A) 58
Outdooor Sound Power Level  dB(A) 69
Indoor Dimensions - H x W x D mm 840 x 840 x 245
Fascia Dimensions - H x W x D mm 950 x 950 x 55
Outdoor Dimensions - H x W x D mm 946 x 410 x 810
Weight - Indoor kg 28
Weight - Fascia kg 8
Weight - Outdoor kg 66.5
Refrigerant Pipe Diameter - Liquid Side / Gas Side mm 9.52 / 15.9
Pipe Length - Precharged / Maximum  m 15 - 50
Pipe Maximum Vertical Seperation m 25
Charge Adjustment (R410A) g/m 30
SKU CSN070R
Brand Rinnai
Shipping Weight 102.5000kg
Shipping Cubic 0.782485000m3
